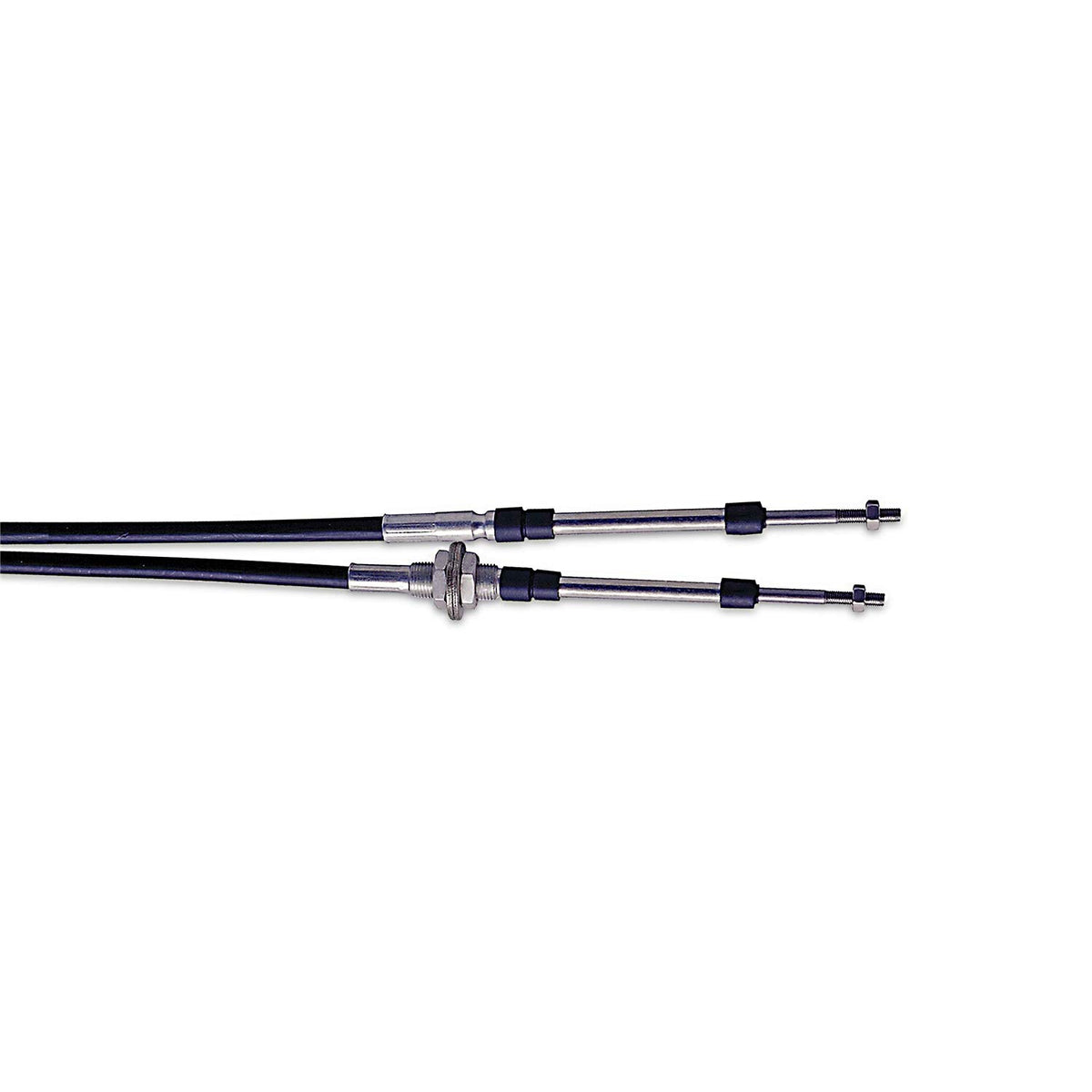

SeaStar Xtreme 4300BC Control Cable Assembly, 6 Foot, CCX43006

The SeaStar Xtreme 4300BC Control Cable Assembly, part number CCX43006, is a 6 foot control cable built for reliable throttle and shift operation on boats using the 4300/43 series cable system. This 4300 BC configuration cable has one bulkhead fitting and one clamp-type fitting, with a 1/4-28 threaded terminal at each end for direct connection to compatible control heads and engine-side linkage. The cable provides 3 inches of nominal travel and a 5 inch minimum bend radius, giving installers flexibility when routing the cable through tight engine bay and helm layouts.

Construction features a stainless steel conduit for corrosion resistance in the marine environment, wrapped in a black HDPE outer casing that resists UV exposure and chemical contact for long-term durability. The cable is built to meet or exceed applicable industry standards for marine control cables. This assembly is intended as a like-for-like replacement or new installation cable within the 4300/43 cable type family (1/4-28 ends).

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX43006
• Cable Type: 4300 BC
• Length: 6 feet
• End Fittings: 1/4-28 threaded terminal at each end
• Fitting Configuration: One bulkhead fitting and one clamp-type fitting
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Conduit: Stainless steel
• Outer Casing: Black HDPE
• Weight: 1.7 pounds
• Product Dimensions: 17 x 17 x 1.5 inches
• UPC: 808282273729

Fitment

This is a 4300/43 type control cable with 1/4-28 threaded ends, intended for control head and engine systems that use the 4300/43 series cable interface.

Frequently Asked Questions

What is the CCX43006 control cable used for? CCX43006 is a 6 foot SeaStar Xtreme 4300BC control cable used to connect a boat's control head to the engine throttle and shift linkage, transmitting the control motion through a stainless steel conduit cable.

How long is the CCX43006 cable? This cable is 6 feet in length, as indicated by the CCX43006 part number and the Xtreme 4300BC 6 foot designation.

What size threads are on the cable ends? Both ends of the CCX43006 cable have a 1/4-28 threaded terminal, matching the 4300/43 type cable series.

How much travel does this cable provide? The CCX43006 provides 3 inches of nominal travel, which is standard for the 4300 BC cable configuration.

What is the minimum bend radius for this cable? A 5 inch minimum bend radius applies to this 4300/43 type cable, so it should not be routed with any tighter bends during installation.

What fittings does the 4300 BC cable have compared to the 4300 CC cable? The 4300 BC cable (CCX430XX series, including CCX43006) has one bulkhead fitting and one clamp-type fitting, while the 4300 CC cable (CCX433XX series) has a clamp-type fitting at both ends.

What material is the cable conduit made from? The CCX43006 cable uses a stainless steel conduit, which is standard across the 4300/43 type cable series for corrosion resistance.

What is the outer casing made of and why does it matter? A black HDPE outer casing covers the CCX43006 cable, providing resistance to UV exposure and chemical contact so the cable holds up in a marine environment over time.

How much does the CCX43006 cable weigh? The CCX43006 control cable weighs 1.7 pounds.

Does this cable meet marine industry standards? Yes, the CCX43006 is built to meet or exceed applicable industry standards for marine control cables.

What are the overall packaged dimensions of the CCX43006? The CCX43006 is packaged at approximately 17 x 17 x 1.5 inches.
