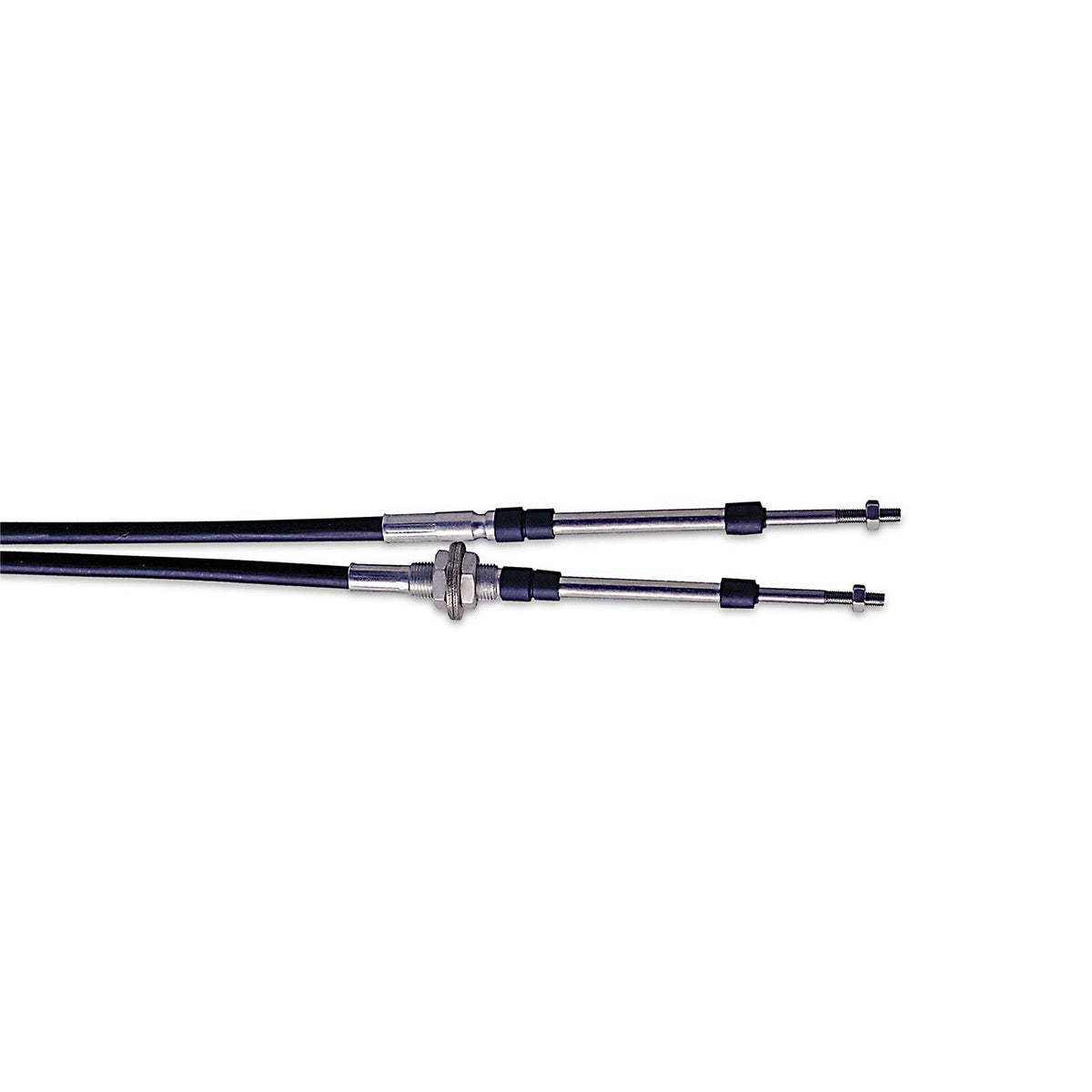

Dometic 4300BC Control Cable Assembly CCX43010, 10 Foot, Stainless Steel Conduit

The Dometic 4300BC Control Cable Assembly (CCX43010) is a 10 foot engine/steering control cable built on the 4300/43 cable platform, designed for helm-to-engine control runs where a 1/4-28 threaded terminal connection is required at each end. The cable features a stainless steel conduit for corrosion resistance in the marine environment, paired with a black HDPE outer casing that resists UV exposure and chemical contact over long-term outdoor use. Each end terminates in a 1/4-28 threaded terminal, and the assembly includes one bulkhead fitting and one clamp fitting for mounting through a bulkhead or panel. The cable provides 3 inches of nominal travel with a 5 inch minimum bend radius, allowing it to be routed through moderately tight curves in the helm and engine bay without kinking or binding. This 4300 BC configuration is built to meet or exceed applicable marine industry standards for control cable performance. It is intended as a direct replacement or new installation cable for boats using the 4300/43 series control cable system, where a 10 foot length and 1/4-28 threaded ends are the correct fit. Because the cable has fixed threaded terminals rather than an adjustable clamp-only design at both ends, it is best suited to installations where the 1/4-28 connection matches the existing helm or engine-side control hardware.

Specifications

• Brand: Dometic
• Manufacturer Part Number: CCX43010
• Cable Series: 4300/43 (4300 BC)
• Cable Length: 10 feet
• End Connection: 1/4-28 threaded terminal at each end
• Fittings Included: One bulkhead fitting and one clamp fitting
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Conduit Material: Stainless steel
• Outer Casing: Black HDPE
• Weight: 2.37 pounds

Frequently Asked Questions

What is the length of the Dometic CCX43010 control cable? The CCX43010 is a 10 foot control cable, part of the 4300/43 series with 1/4-28 threaded ends.

What type of end connection does this cable use? Each end of the CCX43010 terminates in a 1/4-28 threaded terminal, with one bulkhead fitting and one clamp fitting included in the assembly.

How much travel does the CCX43010 provide? 3 inches of nominal travel is provided by this 4300 BC series cable.

What is the minimum bend radius for this cable? 5 inches is the minimum bend radius for the CCX43010, allowing it to be routed through moderately tight curves during installation.

What is the conduit made of on the Dometic CCX43010? Stainless steel conduit is used on this 4300/43 type cable for corrosion resistance in marine environments.

What material is the outer casing of the cable? Black HDPE forms the outer casing of the CCX43010, chosen for durability and resistance to UV exposure and chemicals.

How much does the CCX43010 control cable weigh? 2.37 pounds is the weight of the Dometic CCX43010 control cable assembly.

Does the CCX43010 meet marine industry standards? Yes, the 4300 BC cable series, which includes the CCX43010, is built to meet or exceed applicable industry standards for control cables.

What fittings come with the CCX43010 assembly? One bulkhead fitting and one clamp fitting are included with the CCX43010, along with the 1/4-28 threaded terminals at each end.

Is the CCX43010 an adjustable-end or fixed-terminal cable? The CCX43010 uses 1/4-28 threaded terminals at both ends rather than clamp-only connections, so it is intended for systems where a threaded terminal connection is required.
