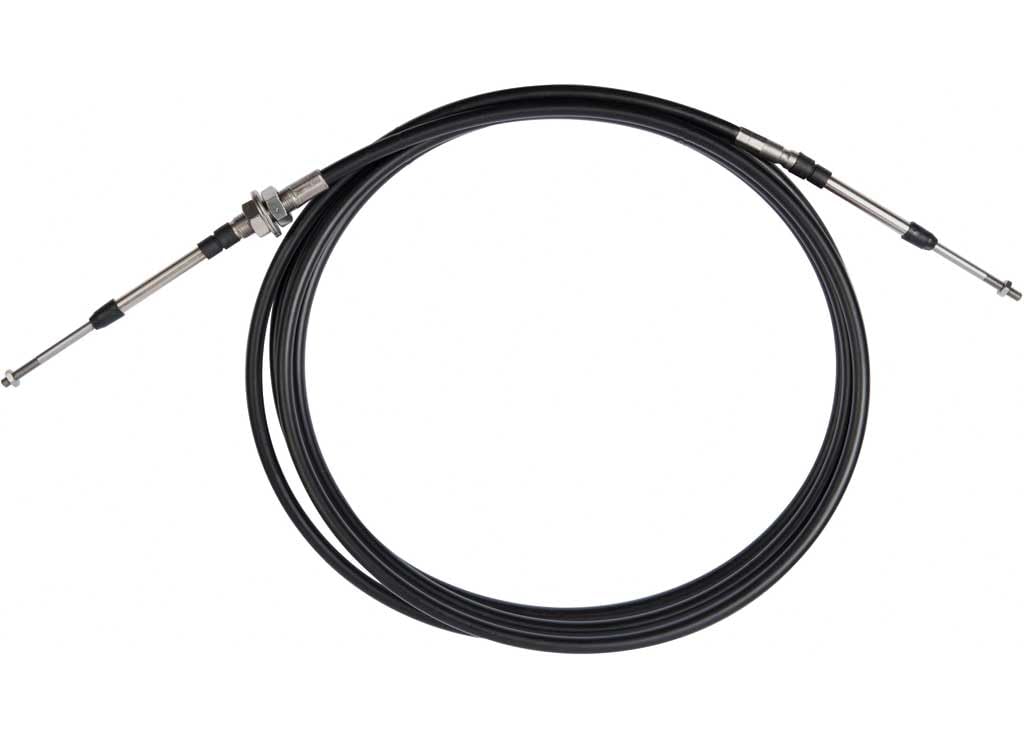

SeaStar Xtreme 4300BC Control Cable Assembly, 15 Foot, CCX43015

The SeaStar Xtreme 4300BC Control Cable Assembly, CCX43015, is a 15 foot marine control cable built on the 4300/43 platform with 1/4-28 threaded ends. It is a 4300 BC (bulkhead-clamp) configuration cable, featuring one bulkhead fitting and one clamp fitting along its length, with a 1/4-28 threaded terminal at each end. The cable delivers 3 inches of nominal travel and a 5 inch minimum bend radius, giving installers flexibility when routing the cable through tight spaces without compromising performance.

Construction centers on a stainless steel conduit for corrosion resistance and long service life, wrapped in a black HDPE outer casing engineered for durability and strong resistance to UV exposure and chemical contact. This combination protects the internal cable core from the harsh marine environment while keeping the assembly flexible enough for practical installation. The CCX43015 is manufactured to meet or exceed applicable industry standards for marine control cables.

This 15 foot length is part of the broader 4300/43 type cable lineup, which also includes a 4300 CC (clamp-clamp) configuration for applications requiring a different fitting arrangement at each end. Buyers should confirm they are selecting the correct configuration and length for their application before ordering.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX43015
• Product Line: Xtreme Control Cable Assembly
• Cable Type: 4300 BC (4300/43 type, 1/4-28 ends)
• Length: 15 feet
• End Fittings: One bulkhead fitting and one clamp fitting
• Terminal: 1/4-28 threaded terminal at each end
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Conduit Material: Stainless steel
• Outer Casing: Black HDPE
• Weight: 1.43 pounds
• Product Dimensions: 17.2 x 17 x 1.6 inches
• UPC: 808282273811
• Category: Control Cables

Frequently Asked Questions

How long is the SeaStar CCX43015 control cable? The CCX43015 is 15 feet long, which corresponds to the '15' in its part number within the Xtreme 4300BC control cable series.

What type of end fittings does the CCX43015 have? This cable has a 1/4-28 threaded terminal at each end, along with one bulkhead fitting and one clamp fitting along the cable, identifying it as a 4300 BC configuration cable.

What is the nominal travel of the SeaStar Xtreme 4300BC cable? The CCX43015 provides 3 inches of nominal travel.

What is the minimum bend radius for this cable? 5 inches is the minimum bend radius for the CCX43015 and other 4300/43 type control cables, which allows for flexible routing during installation.

What is the outer casing made of? A black HDPE outer casing covers the CCX43015, chosen for durability and strong resistance to UV exposure and chemical contact in the marine environment.

Is the CCX43015 corrosion resistant? Yes, the cable uses a stainless steel conduit, which resists corrosion and supports long service life in marine conditions.

What is the difference between the 4300 BC and 4300 CC cable types? The 4300 BC configuration, which includes the CCX43015, has one bulkhead fitting and one clamp fitting, while the 4300 CC configuration uses a 1/4-28 threaded terminal and a clamp-type fitting at each end. Both are 4300/43 type cables with 1/4-28 ends, 3 inches of nominal travel, and a 5 inch minimum bend radius.

How much does the CCX43015 weigh? The CCX43015 control cable assembly weighs 1.43 pounds.

Does this control cable meet industry standards? The CCX43015 is manufactured to meet or exceed applicable industry standards for marine control cables.

What are the terminal ends threaded for on the CCX43015? Both ends of the CCX43015 use a 1/4-28 threaded terminal, consistent with the 4300/43 type cable platform.

What is the UPC for the SeaStar Xtreme 4300BC 15 foot cable? The UPC for the CCX43015 control cable assembly is 808282273811.

What product category does the CCX43015 fall under? The CCX43015 is listed under Control Cables, as a 15 foot Xtreme 4300BC control cable assembly.
