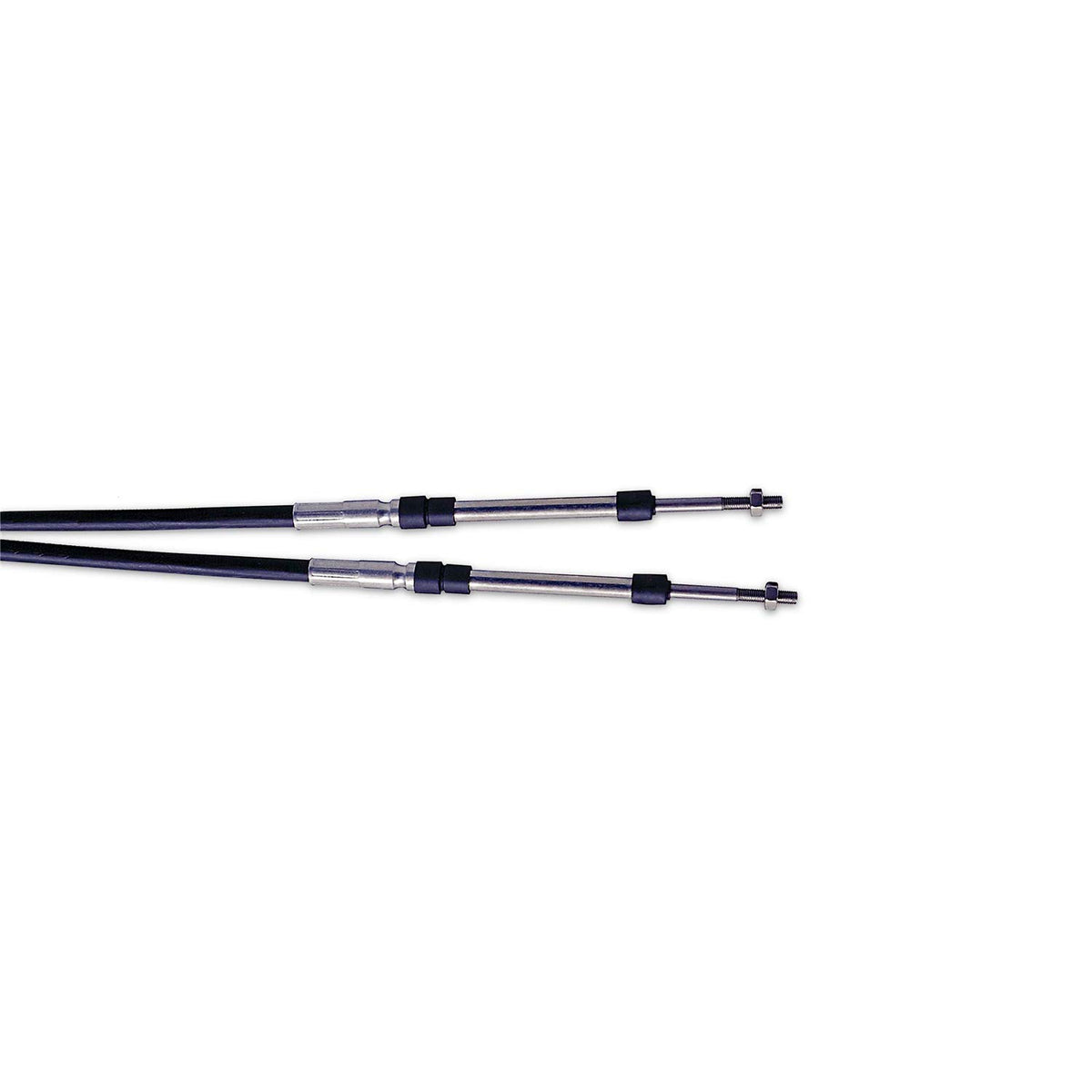

SeaStar Xtreme 4300CC Control Cable Assembly CCX43310, 10 Feet, 1/4-28 Threaded Ends

The SeaStar CCX43310 is a 10 foot control cable from the Xtreme 4300 CC series, built to connect a boat's helm control to the engine or drive with a durable, weather-resistant design. The cable's outer casing is made from black HDPE (high-density polyethylene), chosen for its resistance to UV exposure and chemical contact, both common stresses in a marine environment. Each end of the cable is fitted with a 1/4-28 threaded terminal paired with a clamp-type fitting, giving it a secure, ready-to-install connection at both the control and the engine end.

The CCX43310 provides 3 inches of nominal travel, the stroke length the cable core moves within its casing, and is rated for a minimum bend radius of 5 inches, allowing it to be routed through tighter spaces without binding or kinking. As part of SeaStar's Xtreme 4300 CC line (CCX433XX), it is built to meet or exceed applicable industry standards for marine control cable construction. This cable uses the 1/4-28 thread size, which is distinct from SeaStar's 6400 series cables (CCX640XX and CCX643XX), so it should be matched to controls designed for 1/4-28 threaded ends.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX43310
• Product Line: Xtreme 4300 CC (CCX433XX)
• Overall Cable Length: 10 feet
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• End Fittings: 1/4-28 threaded terminal and clamp-type fitting at each end
• Outer Casing Material: Black HDPE
• UV and Chemical Resistance: Yes
• Industry Standards: Meets or exceeds applicable industry standards
• Weight: 2.15 pounds
• Product Dimensions: 17 x 1.5 x 17 inches
• UPC: 808282274153
• National Stock Number: 3040-01-585-3360

Frequently Asked Questions

How long is the SeaStar CCX43310 control cable? The SeaStar CCX43310 is a 10 foot control cable in the Xtreme 4300 CC series, with 3 inches of nominal travel built into that length.

What type of end fittings does this cable use? Each end of the CCX43310 has a 1/4-28 threaded terminal paired with a clamp-type fitting, matching the 4300 CC series design.

What is the minimum bend radius for this cable? 5 inches is the minimum bend radius for the SeaStar Xtreme 4300 CC cable CCX43310, so it should be routed with at least that much curve to avoid binding.

What is the outer casing made of? Black HDPE (high-density polyethylene) forms the outer casing of the CCX43310, chosen for its resistance to UV exposure and chemical contact on board.

Will this cable hold up to sun and saltwater exposure? Yes. The HDPE casing on the SeaStar CCX43310 is built to resist UV degradation and chemical exposure, which suits it to marine environments.

How much does the CCX43310 weigh? 2.15 pounds is the shipping weight of the SeaStar CCX43310 control cable assembly.

What are the shipping dimensions of this cable? The CCX43310 ships in a package measuring 17 x 1.5 x 17 inches.

Is the CCX43310 compatible with 5/16-24 style controls? No. The CCX43310 belongs to SeaStar's 4300 CC series, which uses 1/4-28 threaded ends; SeaStar's 6400 series cables (CCX640XX and CCX643XX) use the 5/16-24 thread size instead.

Does this cable meet industry standards? The SeaStar Xtreme 4300 CC cable, part number CCX43310, meets or exceeds applicable industry standards for marine control cables.

What does the model number CCX43310 identify? CCX43310 identifies the cable as part of SeaStar's 4300 CC control cable line, distinct from the 6400 BC and 6400 CC lines in the same Xtreme series.

What is nominal travel and how much does this cable have? 3 inches of nominal travel is built into the SeaStar CCX43310, referring to the stroke length the cable core can move within its casing.

Is the CCX43310 a complete cable assembly or does it need additional parts? The CCX43310 is a complete control cable assembly with a 1/4-28 threaded terminal and clamp-type fitting already installed at each end, ready to connect to compatible controls.
