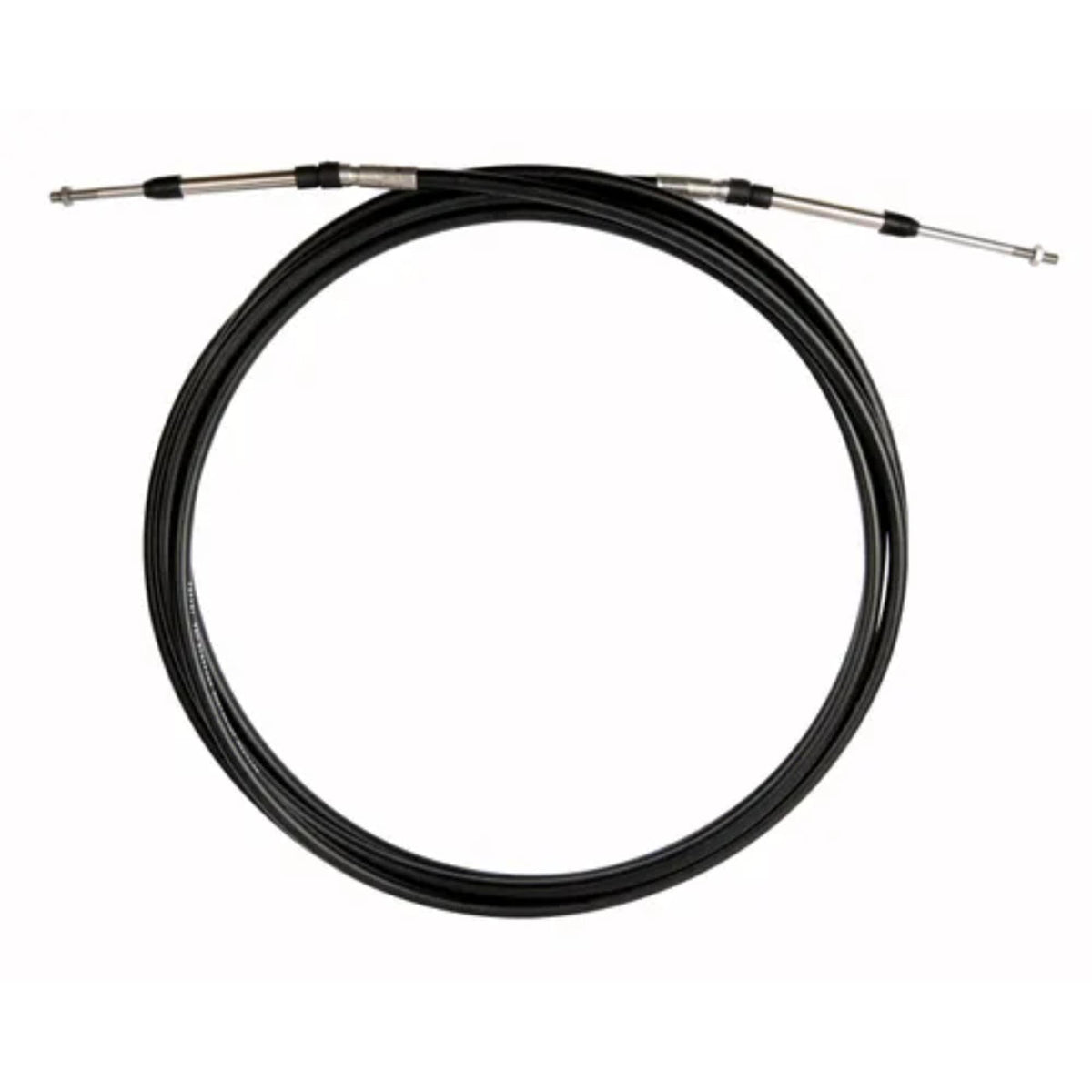

SeaStar CCX43325 Control Cable Assembly, Xtreme 4300CC Series, 25 Feet

The SeaStar CCX43325 is a 25 foot control cable assembly from the Xtreme 4300CC series, built for reliable throttle and shift control routing on board. The cable features a black HDPE (high-density polyethylene) outer casing engineered for durability and strong resistance to UV exposure and chemical contact, making it suited to the harsh conditions of a marine engine compartment. Each end of the cable is fitted with a 1/4-28 threaded terminal paired with a clamp-type fitting, giving installers a secure mechanical connection at both the control station and the engine end. The assembly provides 3 inches of nominal travel and is rated for a 5 inch minimum bend radius, so it can be routed through tighter runs without kinking or binding the internal core. As part of the Xtreme 4300CC lineup (part number stem CCX433XX), this cable is manufactured to meet or exceed applicable industry standards for marine control cables. At 25 feet, the CCX43325 is sized for longer helm-to-engine runs where a compact 3 inch travel cable with a threaded/clamp terminal configuration is required.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX43325
• Series: Xtreme 4300CC (CCX433XX)
• Cable Length: 25 feet
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Terminal Type: 1/4-28 threaded terminal
• End Fitting: Clamp-type fitting at each end
• Outer Casing Material: Black HDPE (high-density polyethylene)
• Casing Properties: UV and chemical resistant
• Standards Compliance: Meets or exceeds applicable industry standards
• Product Dimensions: 1.7 x 17.1 x 17 inches
• Weight: 4.5 pounds

Frequently Asked Questions

How long is the CCX43325 control cable? The CCX43325 is a 25 foot control cable assembly, part of the Xtreme 4300CC series.

What is the nominal travel on this cable? The CCX43325 provides 3 inches of nominal travel.

What is the minimum bend radius for the CCX43325? This cable has a 5 inch minimum bend radius, so it should not be routed in a tighter curve than that to avoid binding the core.

What type of end fittings does this control cable use? Each end of the CCX43325 has a 1/4-28 threaded terminal combined with a clamp-type fitting.

What is the outer casing made of? The outer casing is black HDPE (high-density polyethylene), chosen for durability and resistance to UV and chemical exposure.

Is the CCX43325 suitable for outdoor or engine compartment use? Yes, the HDPE casing on the CCX43325 is built to resist UV exposure and chemical contact, both common in marine engine compartments.

What series does part number CCX43325 belong to? CCX43325 belongs to the Xtreme 4300CC series, identified by the part number stem CCX433XX.

How much does the CCX43325 weigh? The CCX43325 control cable assembly weighs 4.5 pounds.

Does the CCX43325 meet industry standards? Yes, this cable is manufactured to meet or exceed applicable industry standards for marine control cables.

What are the packaged dimensions of the CCX43325? The CCX43325 has product dimensions of 1.7 x 17.1 x 17 inches.

Does the CCX43325 come as a complete assembly? Yes, the CCX43325 is sold as a complete 25 foot control cable assembly with terminals and fittings installed at both ends.
