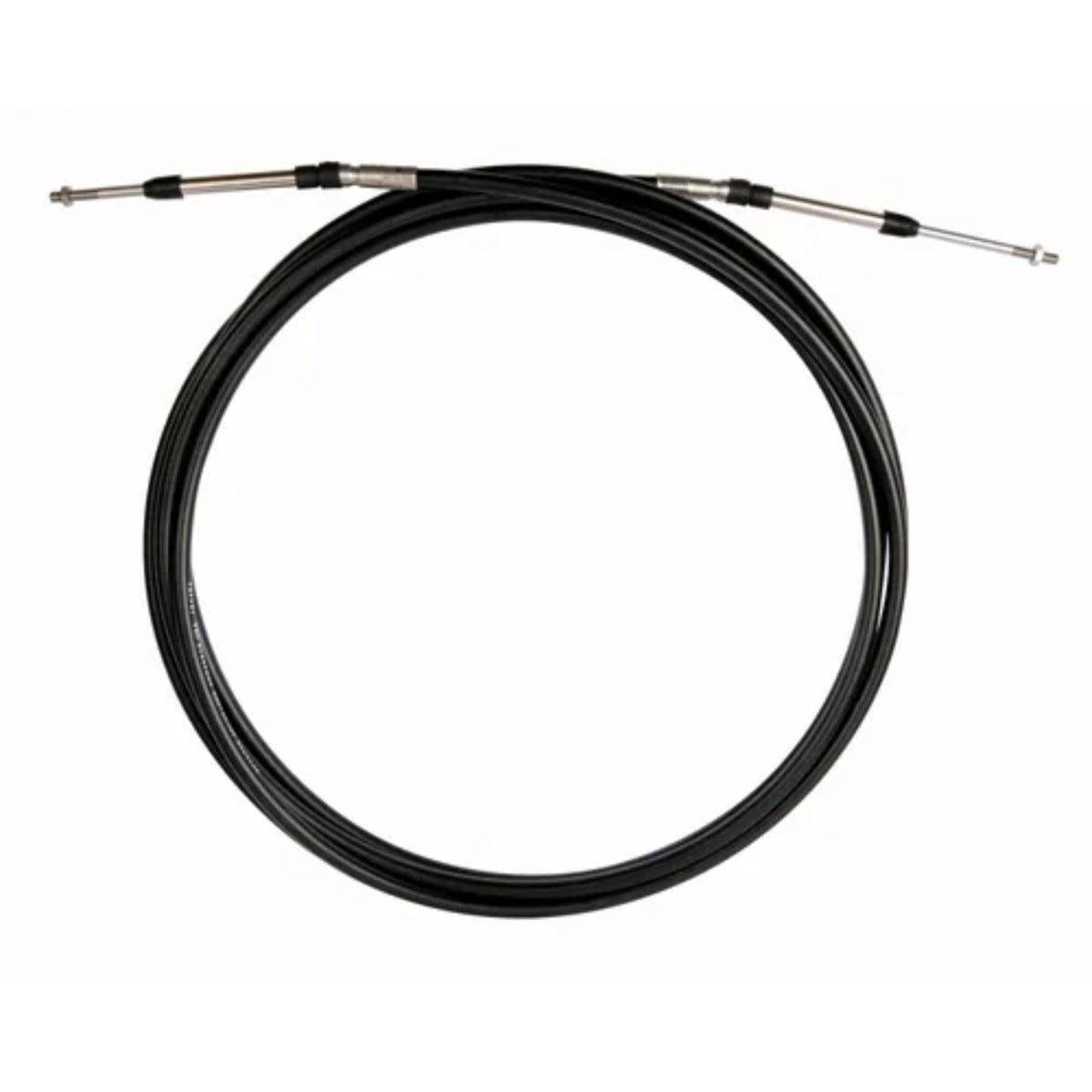

Dometic CCX43330 Xtreme 4300CC Control Cable Assembly, 30 Foot, Fits SeaStar Solutions Universal Controls

The Dometic CCX43330 is a Xtreme 4300CC control cable assembly built to the 4300 CC cable specification, measuring 30 feet in length. It is designed to connect a helm control station to the engine or drive at the shift and throttle points, transmitting mechanical motion through a sealed cable core. The cable features a 1/4-28 threaded terminal and a clamp-type fitting at each end, giving it 3 inches of nominal travel and a 5 inch minimum bend radius for routing through tight engine spaces without kinking the core.

The outer casing is constructed of black HDPE (high-density polyethylene), chosen for its durability and resistance to UV exposure and chemical contact in a marine engine compartment. The cable meets or exceeds applicable industry standards for control cable performance. It is built to work with SeaStar Solutions controls and other brands of controls that accept universal-type 4300 CC control cables, making it a straightforward replacement or upgrade option for boats using this cable style and end-fitting configuration.

Specifications

• Brand: Dometic
• Manufacturer Part Number: CCX43330
• Cable Type: 4300 CC
• Length: 30 feet
• Terminal Connection: 1/4-28 threaded terminal at each end
• End Fitting: Clamp-type fitting at each end
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• Outer Casing Material: Black HDPE
• Weight: 5.27 pounds
• Product Dimensions: 2.5 x 17.2 x 17.3 inches
• Compatible Controls: SeaStar Solutions and other brands accepting universal-type control cables

Fitment

• Works with SeaStar Solutions controls and other control brands designed to accept universal 4300 CC type control cables with 1/4-28 threaded terminals and clamp-type end fittings

Frequently Asked Questions

What length is the Dometic CCX43330 control cable? The CCX43330 measures 30 feet in length, part of the Xtreme 4300CC control cable line.

What kind of end fittings does this cable have? Each end of the CCX43330 has a 1/4-28 threaded terminal along with a clamp-type fitting, matching the standard 4300 CC configuration.

How much nominal travel does the cable provide? 3 inches of nominal travel is provided at each end of the CCX43330 4300 CC cable.

What is the minimum bend radius for installing this cable? 5 inches is the minimum bend radius for the CCX43330, which should be kept in mind when routing the cable through the engine compartment to avoid kinking the core.

What is the outer casing made of? Black HDPE (high-density polyethylene) forms the outer casing of the CCX43330, chosen for durability and resistance to UV exposure and chemical contact.

Which controls is the CCX43330 compatible with? This cable is designed to work with SeaStar Solutions controls and other brands of controls that accept universal-type 4300 CC control cables with matching 1/4-28 threaded terminals and clamp fittings.

Does the cable meet industry standards? Yes, the CCX43330 meets or exceeds applicable industry standards for marine control cables.

How much does the CCX43330 weigh? The Dometic CCX43330 control cable assembly weighs 5.27 pounds.

What are the packaged dimensions of this cable? The CCX43330 ships in dimensions of 2.5 x 17.2 x 17.3 inches, reflecting the coiled 30 foot cable length.

Is this a universal control cable or brand-specific? The CCX43330 is a universal-type 4300 CC control cable, meaning it fits SeaStar Solutions controls and other control brands built to accept the same 4300 CC cable style and end fittings, rather than being locked to one control manufacturer.

What is included with the CCX43330? The product is the complete Xtreme 4300CC control cable assembly, CCX43330, with the 1/4-28 threaded terminal and clamp-type fitting already installed at each end, ready to connect between the control station and engine.
