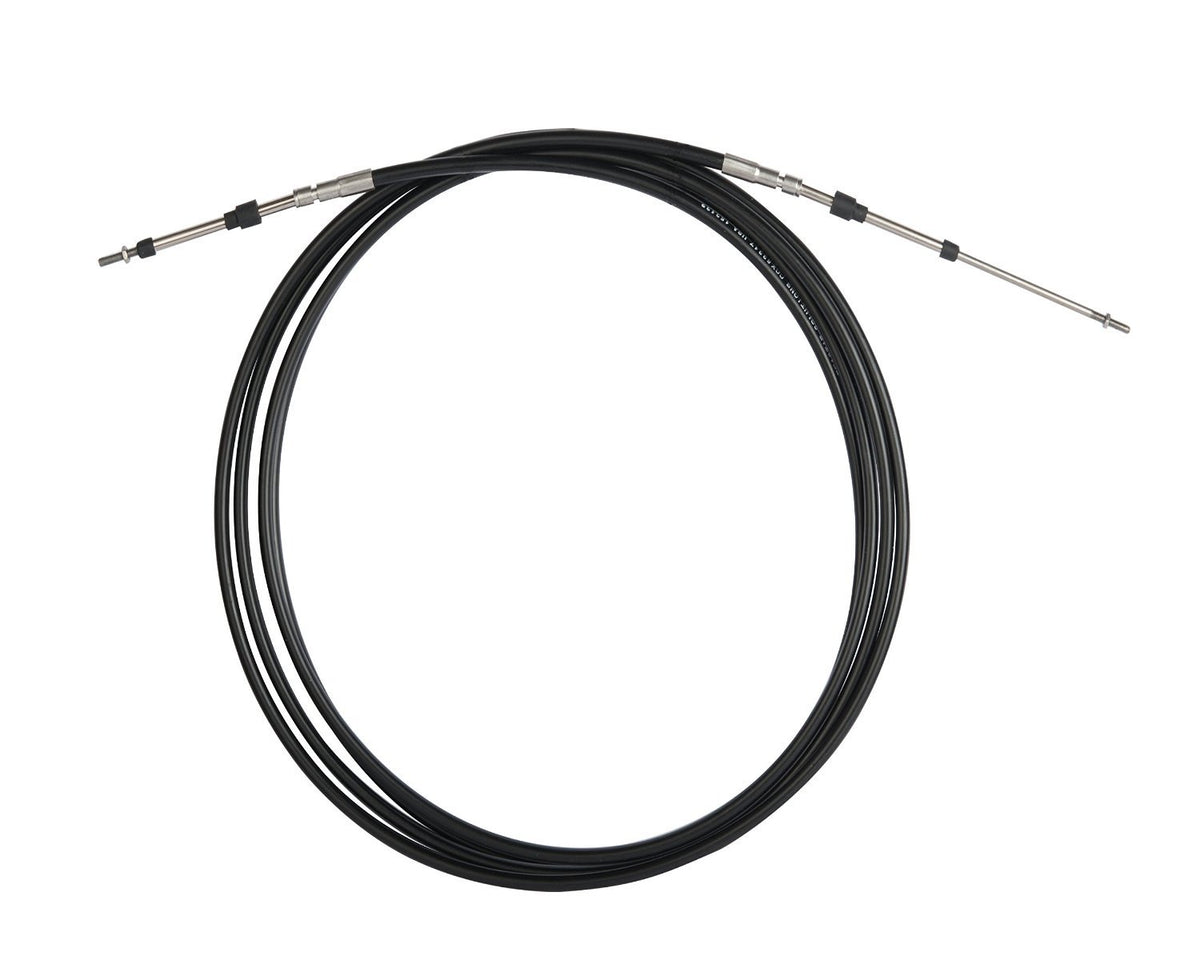

SeaStar CCX63338 XTREME 3300/33C Control Cable, 38 Feet, for Dual Station DS Units

The SeaStar CCX63338 is a 38-foot XTREME 3300/33C type control cable built for dual function mechanical controls on dual station boats. SeaStar Solutions recommends using this 33C cable (part number stem CCX633XX) specifically with the DS unit, allowing side mount controls to be used in dual station setups with a single station selector for either a single engine or dual station boat. Note that the DS throttle unit this cable pairs with is a pull-only setup; a push throttle application requires the outboard DS throttle unit instead.

Each end terminates in a 10-32 threaded terminal with a clamp-type fitting, using the existing connection components found on aftermarket engine controls as well as OEM units. The cable is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, with 0.033 inch oil tempered lay wires for strength and performance. A patented XTREME splined, coated core element keeps ridges in close contact with the cable's inner liner for smooth movement with minimal lost motion, and stainless steel terminals and conduit fittings add corrosion protection. The cable carries a 4 inch minimum bend radius, versus an 8 inch minimum bend radius for standard cables, making it well suited to complex or long cable runs. It is lifetime lubricated at the factory and made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63338
• Cable Length: 38 feet
• Cable Type: 3300/33C, Universal type
• Terminal Ends: 10-32 threaded, clamp-type fitting each end
• Minimum Bend Radius: 4 inches
• Jacket Material: 0.34 inch Super Tough HDPE
• Lay Wire Diameter: 0.033 inch, oil tempered
• Core Type: XTREME splined, coated core element
• Terminal and Fitting Material: Stainless steel
• Color: Black
• Weight: 4.73 pounds
• Country of Origin: Made in the U.S.A.
• UPC: 808282271756
• Recommended Use: Dual station (DS) mechanical control setups

Frequently Asked Questions

How long is the SeaStar CCX63338 control cable? The CCX63338 measures 38 feet, and buyers should verify this is the correct cable length for their application before ordering.

Is the CCX63338 designed for dual station boats? Yes, this 33C cable is recommended for use with the DS unit, letting side mount controls work in a dual station boat with a single station selector covering both single engine and dual station setups.

What kind of terminal ends does this cable use? Each end of the CCX63338 has a 10-32 threaded terminal with a clamp-type fitting, using the existing connection components on the control.

Is this a push or pull throttle cable? The DS throttle unit this cable is intended for is a pull-only setup; a push throttle application requires the outboard DS throttle unit instead.

How tight of a bend can the CCX63338 handle? A 4 inch minimum bend radius is possible with this XTREME cable, compared to an 8 inch minimum bend radius required for standard control cables.

What is the outer jacket made of? A 0.34 inch Super Tough HDPE jacket covers the CCX63338, resisting abrasion and withstanding UV, salt water, chemicals, gasoline, and oil.

Does the CCX63338 come pre-lubricated? Yes, it is lifetime lubricated at the factory, so no additional lubrication is needed at installation.

Which engine control brands will this cable fit? This universal 10-32 threaded cable is designed to fit aftermarket engine controls as well as OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, Tohatsu, and many inboard applications.

Will the CCX63338 work with an Evinrude, Johnson, OMC, or Mercury engine? It will fit those engines when paired with the correct engine adapter kit, since the cable itself uses a universal 10-32 threaded connection.

Where is the CCX63338 manufactured? This control cable is made in the U.S.A.

How much does the CCX63338 weigh? The cable weighs 4.73 pounds.

What color is the SeaStar CCX63338 cable? It has a black jacket finish.
