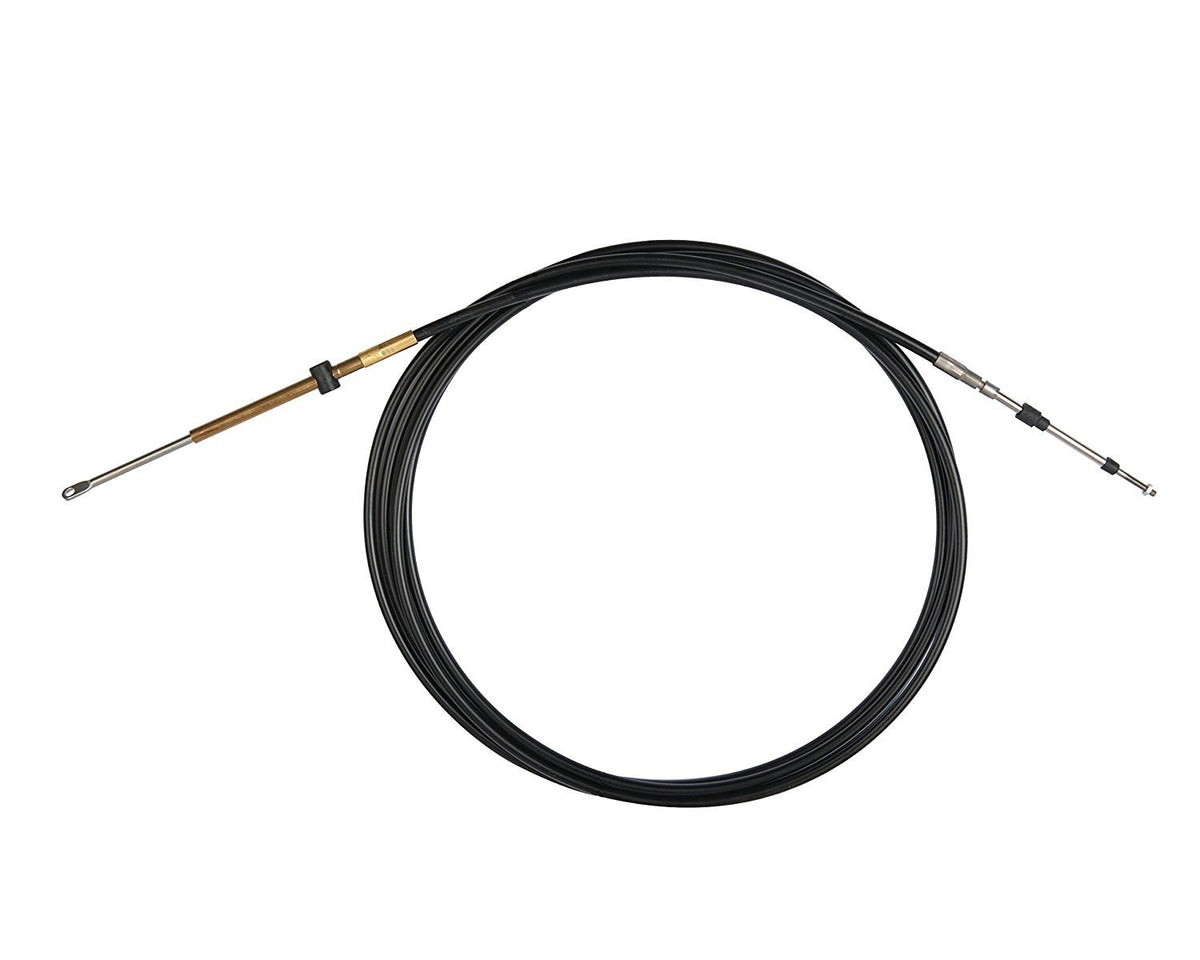

SeaStar CCX74010 XTREME Control Cable, 10 Feet, Top Mount BRP/OMC to Volvo Engine Control

The SeaStar CCX74010 is a 10 foot XTREME control cable engineered as a drop-in replacement for original equipment control cables on Volvo engines using top mount BRP/OMC controls. It uses the existing OEM-style connection components, so installation follows the same hookup points as the original cable it replaces. The cable is built around SeaStar's XTREME Technology, which incorporates a patented splined core: ridges on the core give a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. This construction gives the CCX74010 a 4 inch minimum bend radius, tighter than the 8 inch minimum bend radius of standard control cables, which makes it well suited to complex or long cable runs and to foot throttle applications on performance and bass boats.

The cable is wrapped in a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil. Internally it uses 0.033 inch oil tempered lay wires for strength and performance, with stainless steel terminals and brass fittings for corrosion protection. The core wire is lubricated for life at the factory. It is made in the U.S.A. And is intended for Volvo engines using top mount BRP/OMC controls.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX74010
• Cable Length: 10 feet
• Cable Series: XTREME (CCX740XX)
• Compatible Controls: Volvo engines using top mount BRP/OMC controls
• Minimum Bend Radius: 4 inches
• Jacket Material: 0.34 inch super tough HDPE
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals: Stainless steel
• Fittings: Brass
• Color: Black
• Weight: 1.6 pounds
• Country of Origin: Made in the U.S.A.
• UPC: 808282276157

Fitment

For Volvo engines using top mount BRP/OMC controls; also fits OMC Turbo Jets with OMC top mount controls that accept the OMC snap-in style connection.

Replaces (OEM)

Drop-in replacement for the original equipment control cable using the existing connection components; no specific OEM cross-reference numbers are listed for this part.

Frequently Asked Questions

What is the SeaStar CCX74010 used for? The CCX74010 is a 10 foot XTREME control cable used to connect a top mount BRP/OMC control head to a Volvo engine, replacing the original equipment cable using the existing connection components.

Will this cable fit any control head? The CCX74010 is designed for Volvo engines using top mount BRP/OMC controls; it also fits OMC Turbo Jets with OMC top mount controls that accept the OMC snap-in style connection.

How long is this control cable? This cable, part number CCX74010, is 10 feet long.

What is the minimum bend radius for the CCX74010? 4 inches is the minimum bend radius for the CCX74010, compared to 8 inches for a standard control cable, which makes it suitable for tighter or more complex cable runs.

What is the cable jacket made of? A 0.34 inch super tough HDPE jacket covers the CCX74010, resisting abrasion, UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX74010 use the original connection hardware? Yes, this drop-in replacement cable uses the existing connection components from the original equipment cable, so no new connection hardware is required.

What materials are the terminals and fittings made of? Stainless steel terminals and brass fittings are used on the CCX74010 for added corrosion protection.

Is the core wire lubricated? Yes, the core wire in the CCX74010 is lubricated for life at the factory for smooth, long-lasting operation.

Where is the CCX74010 manufactured? The CCX74010 control cable is made in the U.S.A.

How much does the CCX74010 weigh? The CCX74010 weighs 1.6 pounds.

What color is this control cable? The CCX74010 is black.

Is this cable good for long or complex cable runs? Yes, the 4 inch minimum bend radius of the CCX74010 makes it well suited for complex or long cable runs, as well as foot throttle applications on performance and bass boats.
