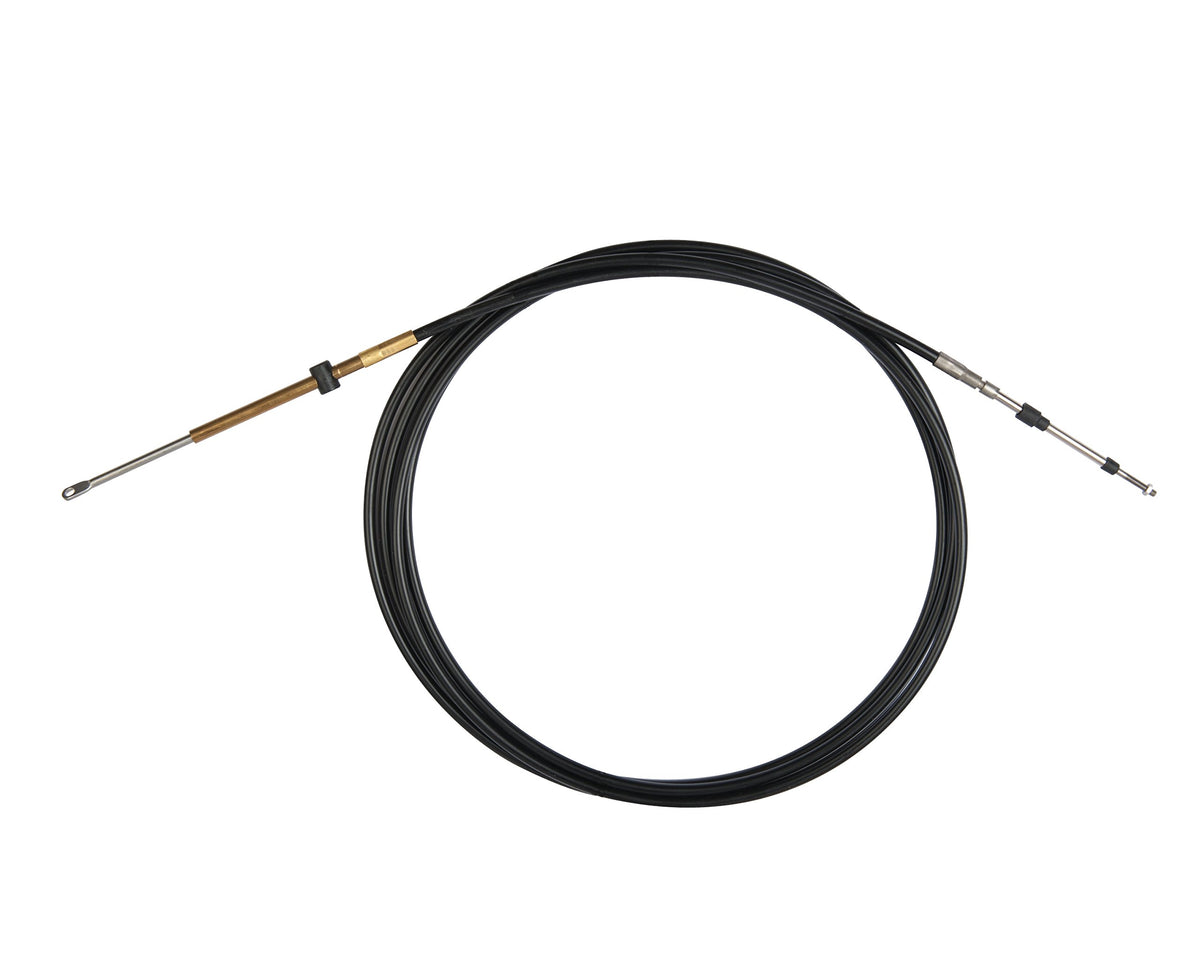

SeaStar Xtreme Control Cable CCX74014, 14 Foot, OMC/Volvo Top Mount Snap-In Cable

The SeaStar CCX74014 is a 14 foot Xtreme control cable engineered as a drop-in replacement for OMC Turbo Jets equipped with OMC top mount controls that accept the OMC snap-in type O.E.M. Cable. Because it uses the existing connection components, installation does not require any modification to the control head or engine end fitting. It is also suited to Volvo engines that use top mount BRP/OMC controls.

At the core of the cable is SeaStar's patented Xtreme splined core, which rides in a long wearing HDPE liner that is lubed for life at the factory. The splined ridges keep a close fit with the liner for smooth, low friction movement and minimal lost motion at the throttle or shift lever. The cable carries a 4 inch minimum bend radius, versus 8 inch for a standard cable, which makes it a good fit for foot throttle setups on performance and bass boats, and for runs that are long, complex, or tightly routed.

The outer jacket is a 0.34 inch super tough HDPE that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil. Terminals are stainless steel and fittings are brass, both chosen for corrosion resistance in a marine environment. The cable is made in the U.S.A. And is backed by SeaStar's manufacturer warranty against defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX74014
• Cable Length: 14 feet
• Weight: 2.04 pounds
• Color: Black
• Material: Stainless steel terminals, brass fittings, HDPE jacket and liner
• Minimum Bend Radius: 4 inches
• Jacket Thickness: 0.34 inch
• Cable Type: Xtreme splined core control cable
• Connection Type: OMC snap-in type, top mount
• UPC: 808282276195

Fitment

• OMC Turbo Jets with OMC top mount controls that accept the OMC snap-in type O.E.M. Cable
• Volvo engines using top mount BRP/OMC controls

Frequently Asked Questions

What is the SeaStar CCX74014 designed to fit? The CCX74014 is built for OMC Turbo Jets with OMC top mount controls that accept the OMC snap-in type O.E.M. Cable, and it also fits Volvo engines using top mount BRP/OMC controls.

How long is this control cable? The CCX74014 measures 14 feet, and buyers should verify this is the correct cable length for their application before ordering since control cables are not field-adjustable in length.

Can I install the CCX74014 without swapping other hardware? Yes, it is a drop-in replacement that uses the existing connection components at both the control head and engine end, so no other hardware needs to be replaced.

What makes the Xtreme cable different from a standard control cable? The Xtreme cable in the CCX74014 has a 4 inch minimum bend radius, compared to 8 inches for a standard cable, which allows it to handle tighter, longer, or more complex cable runs.

What is the minimum bend radius for this cable? 4 inches is the minimum bend radius for the CCX74014 Xtreme cable.

What materials are used in the CCX74014? Terminals are stainless steel and fittings are brass, both selected for corrosion resistance, with an HDPE jacket and liner around the core.

Is the CCX74014 pre-lubricated? Yes, the cable's HDPE liner is lubed for life at the factory, so no additional lubrication is required at install.

How much does the CCX74014 weigh? The CCX74014 control cable weighs 2.04 pounds.

What color is the CCX74014 cable jacket? The outer jacket is black.

Does the CCX74014 hold up in saltwater use? The 0.34 inch HDPE jacket on the CCX74014 resists abrasion and withstands salt water, UV exposure, chemicals, gasoline, and oil.

Is the CCX74014 a genuine SeaStar part? Yes, the CCX74014 is a genuine SeaStar manufactured Xtreme control cable, made in the U.S.A.

Is this cable a good choice for a foot throttle setup? The CCX74014's 4 inch bend radius makes it well suited to foot throttle applications on performance and bass boats, and to long or complex cable runs.
