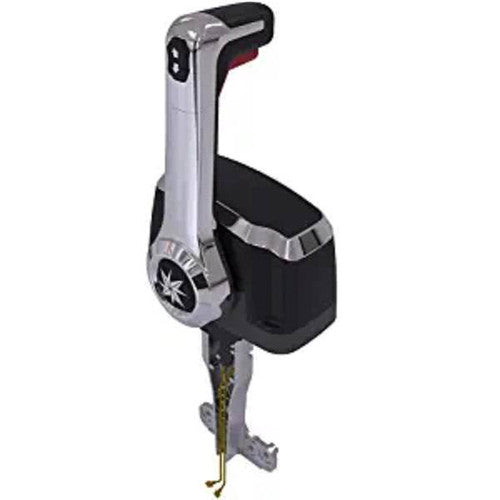

SeaStar CHX8151P Xtreme Top Mount Chrome Control with Trim Switch and Neutral Interlock

The SeaStar CHX8151P Xtreme Top Mount Control is a chrome dual-function control box that lets a single lever handle both throttle and shift, simplifying helm operation for single-engine boats. It is built to work with both 3300/33C type control cables and OEM shift/throttle cable connections, giving installers flexibility when matching it to an existing cable setup. The control includes a Neutral Interlock built into the handle, which works alongside start-in-gear protection so the engine cannot be started or throttled up while still in gear, and a neutral throttle warm-up function lets the engine run at idle before getting underway. A drag adjustment is built in so the operator can dial in the amount of resistance felt through the lever to match personal preference. This control is also designed for use in dual station boats when paired with the corresponding DS unit, making it a fit for helms that need a second control station. Housed in a chrome finish, the CHX8151P mounts on top of the console or gunwale rather than on the side, and it ships complete with a trim switch built into the control for tilt/trim operation from the same handle. Package quantity is one control box. With its combination of dual-function shift/throttle operation, neutral safety interlock, and dual-station compatibility, the CHX8151P is suited to boaters upgrading or replacing a top mount control on a single-engine inboard/outboard application.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CHX8151P
• Type: Top Mount Control
• Color/Finish: Chrome
• Material: Chrome
• Control Function: Dual-function, one lever controls throttle and shift
• Cable Compatibility: 3300/33C type and OEM shift/throttle cable connections
• Dual Station Compatible: Yes, when used with the DS unit
• Neutral Interlock: Built into the handle
• Trim Switch: Included
• Neutral Throttle Warm-up: Yes
• Start-in-gear Protection: Yes
• Drag Adjustment: Yes
• Package Quantity: 1
• Package Dimensions: 18.7 x 8.2 x 7.3 inches
• Weight: 6 pounds
• UPC: 808282372453

Frequently Asked Questions

What is the SeaStar CHX8151P? The CHX8151P is a chrome Xtreme Top Mount Control from SeaStar that combines throttle and shift into a single lever, with a built-in trim switch and a Neutral Interlock on the handle.

Does the CHX8151P work with a single lever for both shift and throttle? Yes, the CHX8151P is a dual-function control, meaning one lever operates both throttle and shift rather than requiring separate controls.

What type of control cables does the CHX8151P accept? It works with both 3300/33C type control cables and OEM shift/throttle cable connections, so it can be matched to either cable style during installation.

Can the CHX8151P be used at a second helm station? Yes, the CHX8151P can be used in dual station boats when paired with the corresponding DS unit.

Does the CHX8151P have a safety interlock? It has a Neutral Interlock built into the handle along with start-in-gear protection, which prevents the engine from being throttled up unless it is confirmed to be in neutral.

Is there a trim switch on this control? Yes, the CHX8151P includes a trim switch built into the control, allowing tilt/trim adjustment from the same handle used for shift and throttle.

What is the neutral throttle warm-up feature? It is a function on the CHX8151P that allows the engine to be revved at idle while in neutral, letting the engine warm up before getting underway.

How heavy is the SeaStar CHX8151P control box? The CHX8151P weighs 6 pounds.

What finish does the CHX8151P come in? The CHX8151P Xtreme Top Mount Control has a chrome finish.

Is drag adjustment available on the CHX8151P? Yes, the CHX8151P includes a drag adjustment so the lever resistance can be tuned to the operator's preference.

Is the CHX8151P mounted on top of the console or on the side? The CHX8151P is a top mount control, designed to be installed on top of the console or gunwale rather than on the side.

How many control boxes come in the package? The CHX8151P ships with a package quantity of one control box.
