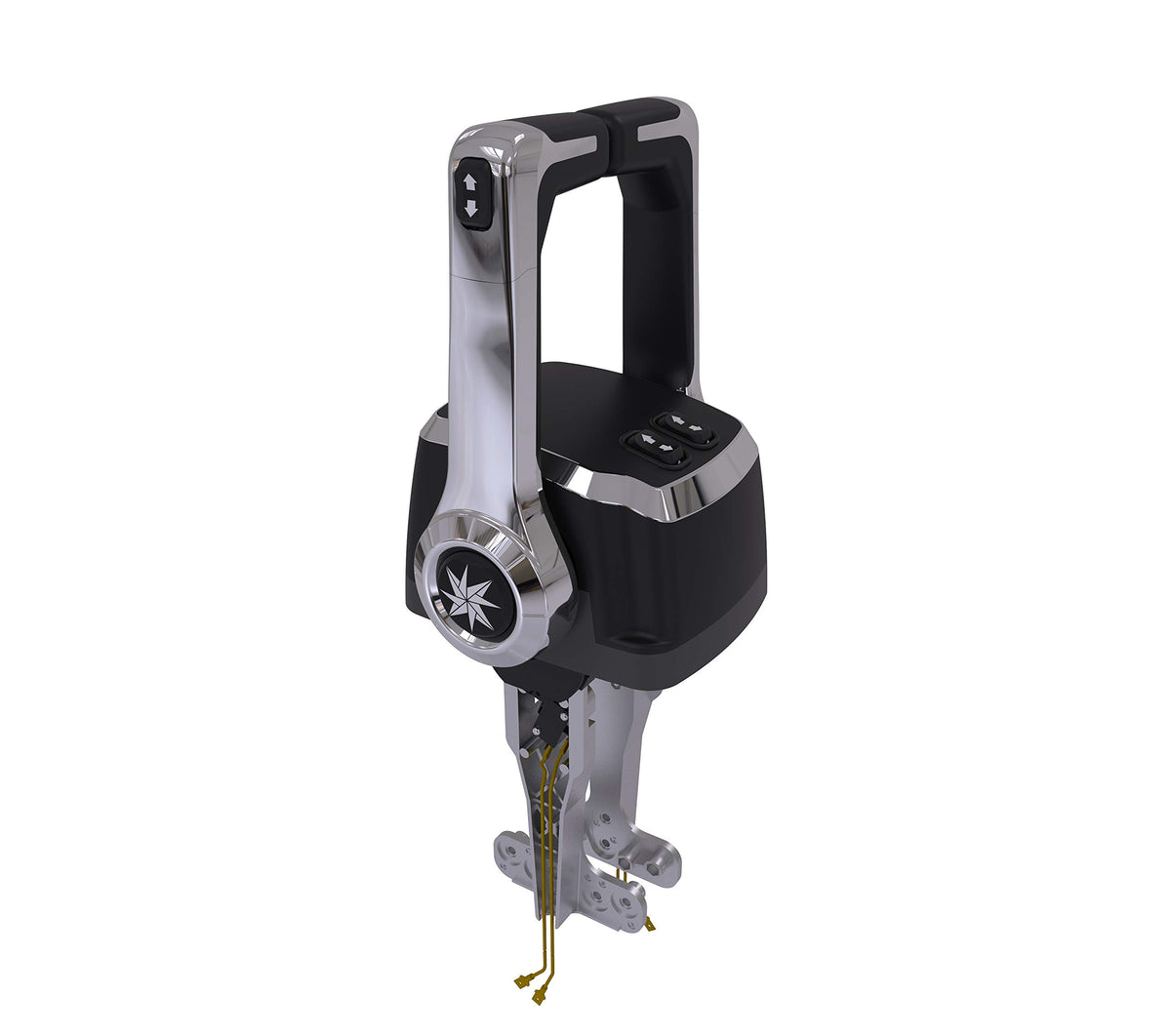

SeaStar CHX8241P Xtreme Dual Top Mount Control Box, Chrome, Trim Switch

The SeaStar CHX8241P is an Xtreme Dual Top Mount control box finished in chrome, built for dual-engine boat setups that need coordinated shift and throttle control at each helm station. It is designed for use with both universal and OEM shift and throttle cable connections, giving installers flexibility when replacing an existing control or setting up a new dual-engine console. Every SeaStar Xtreme control in this line includes start-in-gear protection, a safety feature that prevents the engine from starting while the control is engaged in gear. This particular model, CHX8241P, is equipped with a trim switch integrated into the housing, allowing the operator to adjust trim without removing a hand from the control lever. The chrome housing gives the control a polished, finished look at the helm while standing up to the marine environment. As a top mount unit, it installs above the console surface rather than under it, keeping the shift and throttle mechanism accessible for service. This control is intended for dual-engine applications, matching a control lever to each engine for independent shift and throttle operation. It is a direct fit for boats already configured for a SeaStar CHX8241P control or for owners upgrading from a compatible universal or OEM cable setup.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CHX8241P
• Product Type: Control Xtreme Dual Top Mount
• Mount Type: Dual Top Mount
• Finish/Color: Chrome
• Switch Feature: Trim Switch
• Safety Feature: Start-in-gear protection
• Cable Connection Compatibility: Universal and OEM shift and throttle cable connections
• Operation Mode: Manual
• Contact Type: Normally Open
• Connector Type: Screw Terminals
• Circuit Type: 2-way
• Mounting Type: Wall Mount
• Actuator Type: Push Button
• Number of Positions: 2
• Contact Material: Stainless Steel, Brass
• International Protection Rating: IP54
• Weight: 9.625 pounds
• UPC: 808282372484

Fitment

Designed for use with both universal and OEM shift and throttle cable connections on dual-engine boat applications.

Replaces (OEM)

No OEM cross-reference numbers are specified for this part.

Frequently Asked Questions

What is the SeaStar CHX8241P control box used for? The CHX8241P is a dual-engine boat control, meaning it pairs one lever to each engine for independent shift and throttle operation from a single top-mount housing.

Does the CHX8241P work with my existing shift and throttle cables? Yes, the CHX8241P is designed for use with both universal and OEM shift and throttle cable connections, so it accepts either type without needing a different cable setup.

What color or finish does this control come in? The CHX8241P has a chrome finish, giving the helm a polished look compared to the black-finish Xtreme control box options.

Does the CHX8241P have a trim switch? Yes, this model includes an integrated trim switch, letting the operator adjust trim from the control lever itself.

How much does the CHX8241P control box weigh? The SeaStar CHX8241P weighs 9.625 pounds.

Is this a top mount or side mount control? The CHX8241P is a top mount control, installing above the console surface for accessible dual-engine shift and throttle operation.

Does the CHX8241P include any safety features? Yes, it has start-in-gear protection built in, preventing the engine from starting while the control is engaged in gear.

What type of electrical connections does the CHX8241P use? The control uses screw terminal connectors with a normally open, 2-way circuit type.

Is the CHX8241P rated for outdoor or marine exposure? The CHX8241P carries an IP54 international protection rating, indicating resistance to dust and water splashing suitable for marine helm environments.

What is the difference between the CHX8241P and CHX8242P controls? The CHX8241P is a chrome dual top mount control with a trim switch only, while the CHX8242P adds a tilt switch alongside the trim switch and is described as suitable for most boat/dual engine combinations.

Is the CHX8241P suitable for single-engine boats? The CHX8241P is built as a dual control, pairing a lever to each engine, so it is intended for dual-engine applications rather than a single-engine setup.

What contact materials are used inside the CHX8241P? The internal contacts on the CHX8241P are made of stainless steel and brass.
