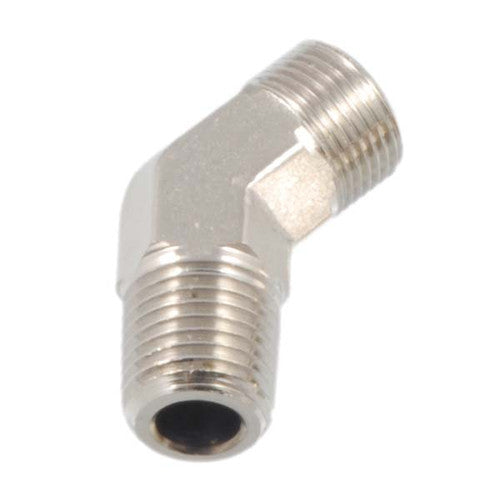

SeaStar 45 Degree Hydraulic Steering Fitting, HF5540, Stainless Steel

The SeaStar HF5540 is a 45 degree hydraulic steering fitting built for boats running SeaStar hydraulic steering systems. It is machined from stainless steel with an NPT thread connection, giving a corrosion-resistant connector for joining steering hose or tubing runs at a 45 degree angle where a straight fitting will not route cleanly through the helm, cylinder, or bulkhead. Hydraulic steering systems depend on tight, leak-free connections to keep the system bled and responsive, and a fitting with the correct angle and thread lets the hose or tube run without kinking or placing stress on the connection point.

This fitting is intended for use with SeaStar 2-line hydraulic steering systems, including systems set up with 3/8 inch diameter tubing or hose runs to the helm pump and cylinder. It is sold as a single fitting (Manufacturer Part Number HF5540) so it can be added or replaced individually without buying a full hose or tube kit.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: HF5540
• Product Type: Hydraulic Steering Fitting
• Fitting Angle: 45 Degrees
• Connector Type: Fitting
• Thread Type: NPT
• Material: Stainless Steel
• Color: White
• Item Dimensions: 0.5 x 5 x 8 inches
• Weight: 0.16 pounds
• UPC: 731957881632

Fitment

Intended for SeaStar 2-line hydraulic steering systems using 3/8 inch diameter tubing or hose runs, including systems built around the HC5332 cylinder.

Frequently Asked Questions

What angle is the HF5540 fitting? The HF5540 is a 45 degree fitting, used where a hydraulic steering hose or tube run needs to change direction without a sharp bend or a straight connector.

What material is the SeaStar HF5540 made of? It is made of stainless steel, chosen for corrosion resistance in a marine hydraulic steering system.

What thread type does the HF5540 use? It uses an NPT thread connection for joining to hydraulic steering hose or tube fittings.

What size tubing does this fitting work with? The HF5540 is intended for use in SeaStar 2-line hydraulic steering systems built with 3/8 inch diameter tubing or hose.

Does the HF5540 fit SeaStar 2.4 systems and the HC5332 cylinder? Yes, SeaStar 2.4 hydraulic steering systems and systems using the HC5332 cylinder are among the applications this fitting size and type is used on.

What are the dimensions of the HF5540? The HF5540 measures 0.5 x 5 x 8 inches as packaged.

How much does the HF5540 weigh? This fitting weighs 0.16 pounds.

Is the HF5540 sold as a single fitting or as part of a kit? It is sold as a single 45 degree fitting, Manufacturer Part Number HF5540, so it can be purchased on its own rather than as part of a full hose or tube kit.

Is this a genuine SeaStar part? Yes, the HF5540 is a genuine SeaStar branded hydraulic steering fitting, not a generic aftermarket substitute.

What color is the HF5540 fitting? The HF5540 is finished in white.

Can the HF5540 be used to replace a damaged or leaking fitting in an existing SeaStar steering system? Yes, because it is sold individually, the HF5540 can be used to replace a single damaged or leaking 45 degree fitting in a SeaStar 2-line hydraulic steering setup without replacing the entire hose or tube run.

What is included when I order the HF5540? You receive one SeaStar HF5540 45 degree stainless steel fitting.
