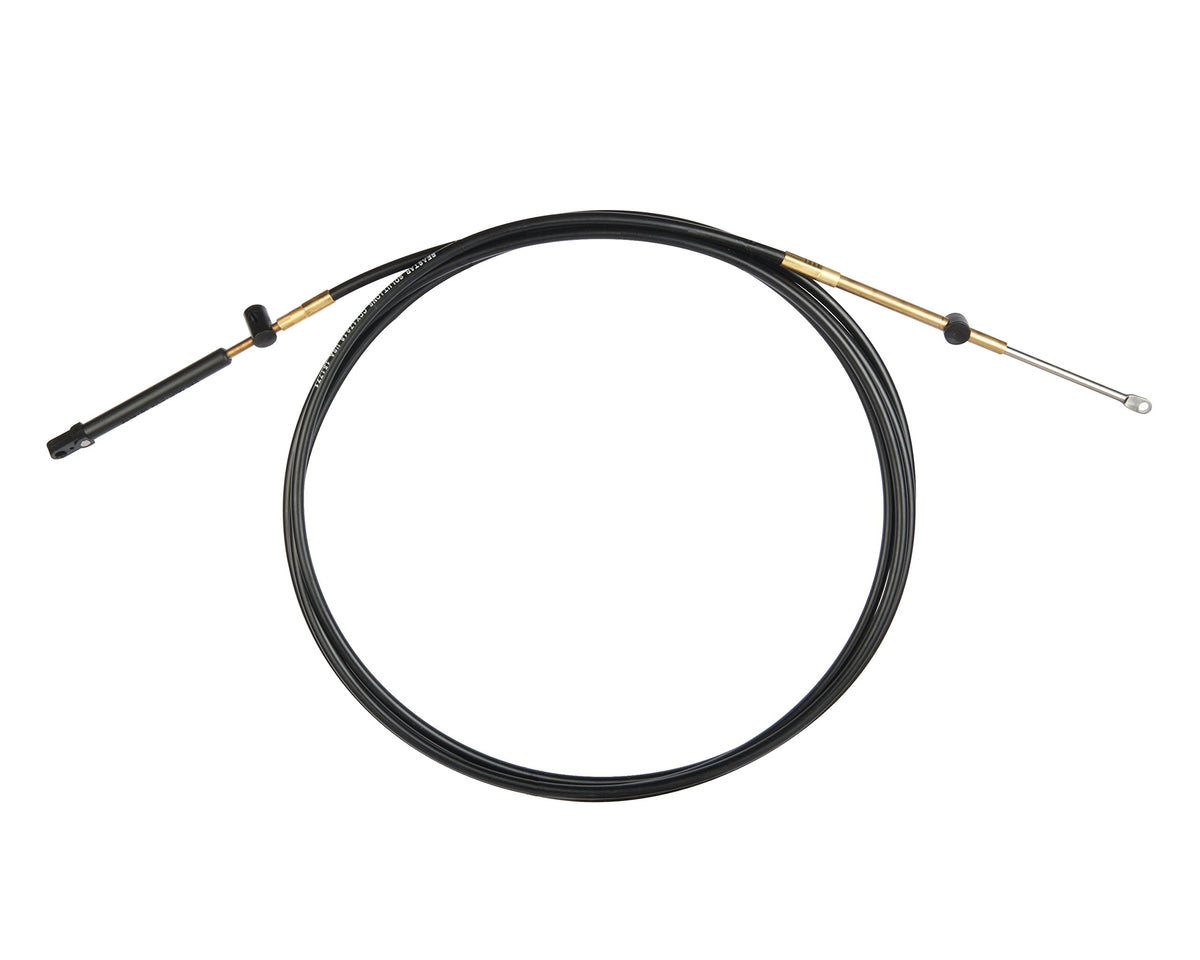

SeaStar Xtreme CCX17915 15-Foot Control Cable for Mercury, Mariner, MerCruiser and Force Engines

The SeaStar Xtreme CCX17915 is a 15-foot control cable engineered as a drop-in replacement for the Mercury 600A style control cable, built for Mercury, MerCruiser, Mariner, and most Force engines running Mercury, Quicksilver, or Mariner controls. It uses the existing connection components on your control head, so installation follows the same hookup as the cable it replaces. The cable's patented Xtreme splined core rides inside a long-wearing HDPE liner that is lubed for life, giving smooth, low-friction movement with minimal lost motion at the helm. A 0.34-inch super tough HDPE jacket resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, while 0.033-inch oil tempered lay wires and stainless steel terminals with brass fittings add strength and corrosion resistance. The Xtreme design carries a 4-inch minimum bend radius, half that of a standard control cable, making it well suited to tight, complex, or unusually long cable runs where a standard cable would bind or feel stiff. It also pairs with SeaStar Osprey and SL-3 series controls connected to Mercury, MerCruiser, Mariner, and most Force engines. This cable exceeds the engine manufacturer's specifications and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX17915
• Product Type: Control Cable Assembly
• Cable Length: 15 feet
• Cable Type: Xtreme High-Speed Control Cable
• Connector Type: Marine Engine Control Cable Connector
• Connector Gender: Male-to-Male
• Compatible Devices: Mercury, Mariner, Force
• Outer Material: High-Density Polyethylene
• Jacket Thickness: 0.34 inch
• Minimum Bend Radius: 4 inches
• Core Wire Diameter: 0.033 inch
• Maximum Voltage: 12 Volts DC
• Weight: 2.24 pounds
• Color: Silver
• Country of Origin: Made in the U.S.A.
• UPC: 808282272227

Fitment

• Mercury, Mariner, and MerCruiser engines (1965-date) with Mercury controls
• Force engines (1993-date, US Marine) with Force, US Marine, or Mercury controls
• Pre-1979 OMC, Johnson, and Evinrude engines with BRP/OMC controls
• SeaStar Osprey and SL-3 series controls connected to Mercury, MerCruiser, Mariner, and most Force engines

Frequently Asked Questions

What engines does the SeaStar CCX17915 control cable fit? The CCX17915 fits Mercury, Mariner, and MerCruiser engines (1965-date) with Mercury controls, Force engines (1993-date) with Force, US Marine, or Mercury controls, and pre-1979 OMC, Johnson, and Evinrude engines with BRP/OMC controls.

Is this cable compatible with Force outboards? Yes, the CCX17915 is compatible with Force engines built 1993-date when used with Force, US Marine, or Mercury controls.

How long is the CCX17915 control cable? This SeaStar Xtreme control cable measures 15 feet in length, as indicated by the 17915 in its part number.

What makes an Xtreme control cable different from a standard control cable? The Xtreme design used in the CCX17915 has a 4-inch minimum bend radius, compared to an 8-inch minimum bend radius for a standard control cable, so it handles tighter, more complex, or longer cable runs with a smoother feel.

What is the outer jacket made of? The CCX17915 is wrapped in a 0.34-inch super tough HDPE (high-density polyethylene) jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

Can this cable replace a Mercury 600A style control cable? Yes, the CCX17915 is engineered as a direct drop-in replacement for the Mercury 600A style control cable and uses the existing connection components at both ends.

Does the CCX17915 come pre-lubricated? Yes, the cable's HDPE liner is lubricated at the factory and designed to stay lubed for life, so no additional greasing is needed at installation.

Will this cable work with SeaStar Osprey or SL-3 controls? Yes, the CCX17915 is designed to connect SeaStar Osprey and SL-3 series controls to Mercury, MerCruiser, Mariner, and most Force engines.

How much does the CCX17915 weigh? This SeaStar control cable weighs 2.24 pounds.

Is the CCX17915 made in the USA? Yes, the CCX17915 control cable is made in the U.S.A.

What core wire and terminal materials are used in this cable? The CCX17915 uses 0.033-inch oil tempered lay wires with a splined, coated core, along with stainless steel terminals and brass fittings for corrosion resistance.

Does the CCX17915 meet marine safety standards? Yes, this SeaStar control cable exceeds the engine manufacturer's specifications and is built to ABYC, ISO/IMCI, and NMMA requirements.
