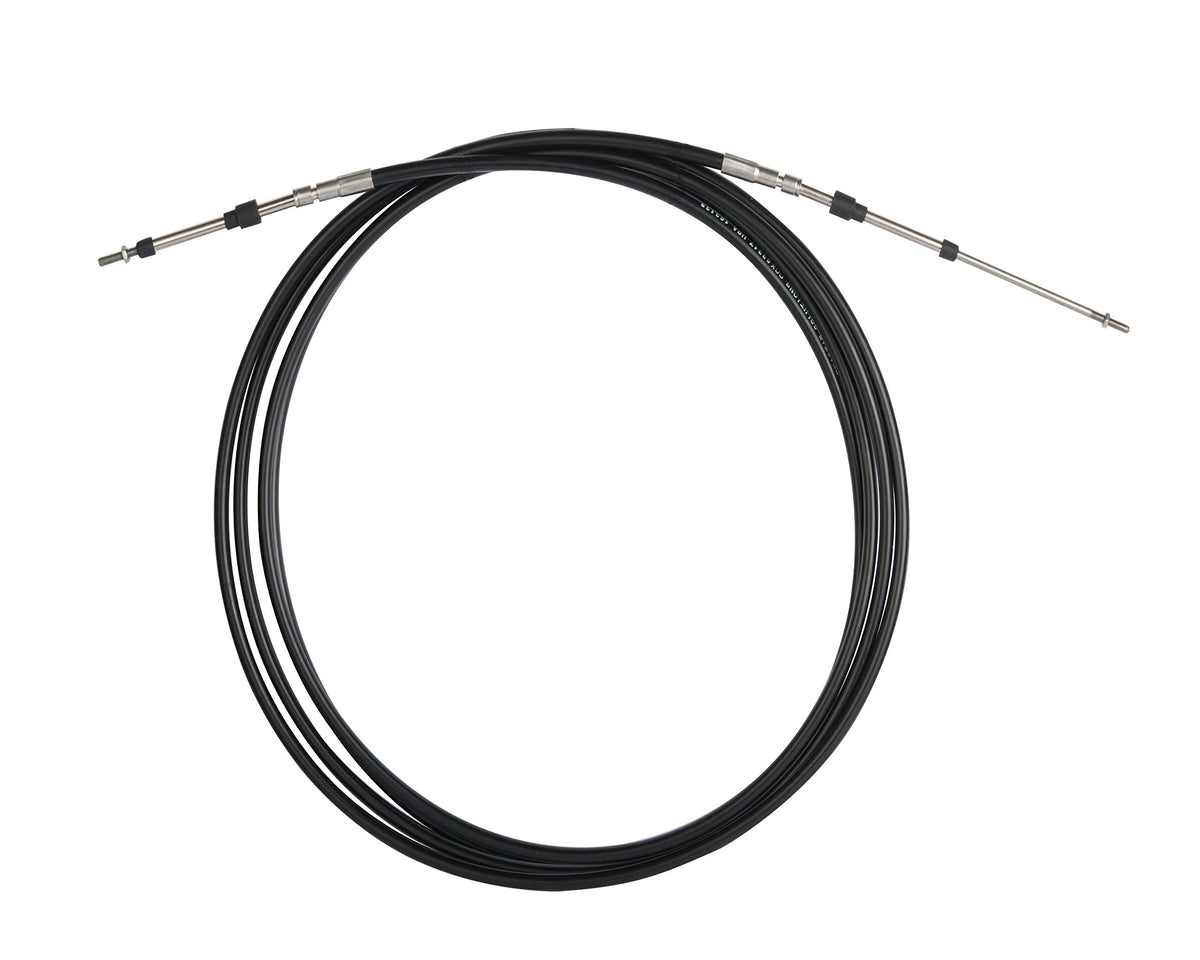

SeaStar CCX63327 3300 TFXtreme Control Cable, 27 Feet, Dual Station (DS) Compatible

The SeaStar CCX63327 is a 27 foot 3300/33C TFXtreme control cable built for dual function mechanical engine controls, including dual station (DS) setups where side mount controls are used with a single station selector. SeaStar Solutions specifically recommends the 33C cable series (part number stem CCX633XX) for use with the DS unit, and this 27 foot length is one of that series. Note that the DS throttle unit itself is a pull only setup; for a push throttle application, an outboard DS throttle unit is required instead.

The cable uses SeaStar's XTREME Splined Core technology, in which ridges on the core provide a close fit with the cable's inner liner for smooth movement with minimal lost motion. It has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs and tight engine room routing. The cable is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil, and it uses 0.033 inch oil tempered lay wires for strength. Terminals and conduit fittings are stainless steel for corrosion resistance, and each end has a 10-32 threaded terminal with a clamp-type fitting compatible with universal control ends. The cable is lifetime lubricated at the factory and made in the U.S.A.

This 10-32 threaded universal cable end is designed to fit aftermarket engine controls as well as Original Equipment Manufacturer control units, including those from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, Tohatsu, and many inboard applications. It will also fit Evinrude, Johnson, OMC, and Mercury engines when used with the correct engine adapter kit.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63327
• Cable Length: 27 feet
• Cable Series: 3300/33C TFXtreme
• Terminal Type: 10-32 threaded terminal with clamp-type fitting at each end
• Minimum Bend Radius: 4 inches
• Jacket Material: 0.34 inch Super Tough HDPE (High-Density Polyethylene)
• Lay Wires: 0.033 inch oil tempered
• Core: XTREME splined, coated core element
• Terminal/Fitting Material: Stainless steel
• Weight: 3.25 pounds
• Country of Origin: Made in the U.S.A.
• Compatible Controls: Universal 10-32 threaded cable end controls; aftermarket and OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, Tohatsu, and many inboard applications; also fits Evinrude, Johnson, OMC, and Mercury engines with the correct engine adapter kit
• Recommended Use: Dual station (DS) mechanical control setups, foot throttle applications on performance/bass boats, and complex or long cable runs
• Standards: Exceeds ABYC safety standards; type certified to ISO/IMCI and NMMA requirements
• Warranty: Two-year recreational user warranty against manufacturing defects
• UPC: 808282271688

Fitment

Recommended by SeaStar Solutions for use with the DS dual station control unit. Fits universal 10-32 threaded control ends on aftermarket engine controls and OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, Tohatsu, and many inboard applications; also fits Evinrude, Johnson, OMC, and Mercury engines with the correct engine adapter kit.

Frequently Asked Questions

What is the SeaStar CCX63327 control cable used for? The CCX63327 is a 27 foot 3300/33C TFXtreme control cable used with dual function mechanical engine controls, including dual station (DS) setups where side mount controls share a single station selector.

How long is the CCX63327 cable? This cable measures 27 feet, and it is part of the 33C cable series (part number stem CCX633XX) that SeaStar Solutions recommends specifically for use with the DS control unit.

Will this cable work with a dual station boat? Yes. SeaStar Solutions recommends the 33C cable series, including the CCX63327, for use with the DS unit so that side mount controls can be used in a dual station boat with just one station selector.

Is the CCX63327 a push or pull cable? The CCX63327 cable itself is a standard 3300/33C TFXtreme control cable; note that the DS throttle unit it is recommended for is a pull only setup, and a push throttle application requires the outboard DS throttle unit instead.

What engine controls is this cable compatible with? CCX63327 has a universal 10-32 threaded cable end that fits aftermarket engine controls as well as OEM units from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, Tohatsu, and many inboard applications, and it also fits Evinrude, Johnson, OMC, and Mercury engines with the correct engine adapter kit.

What is the minimum bend radius of this cable? The CCX63327 XTREME control cable has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius for standard control cables, which makes it a better fit for complex or long cable runs.

What material is the CCX63327 jacket made from? It has a 0.34 inch Super Tough HDPE (High-Density Polyethylene) jacket that resists abrasion and withstands the effects of UV exposure, salt water, chemicals, gasoline, and oil.

How much does the CCX63327 control cable weigh? The CCX63327 27 foot control cable weighs 3.25 pounds.

How is this cable different from a standard control cable? The CCX63327 uses SeaStar's XTREME splined core technology and a 4 inch minimum bend radius versus 8 inches on standard cables, giving smoother, more precise control feel with less lost motion, especially over long or complex cable runs.

Does the CCX63327 come pre-lubricated? Yes, the CCX63327 is lifetime lubricated at the factory and uses a long wearing, ultra smooth HDPE liner.

What terminal type does the CCX63327 use? Each end of the CCX63327 has a 10-32 threaded terminal with a clamp-type fitting and stainless steel terminals and conduit fittings for corrosion protection.

Where is the CCX63327 control cable made? The CCX63327 3300 TFXtreme control cable is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects.
