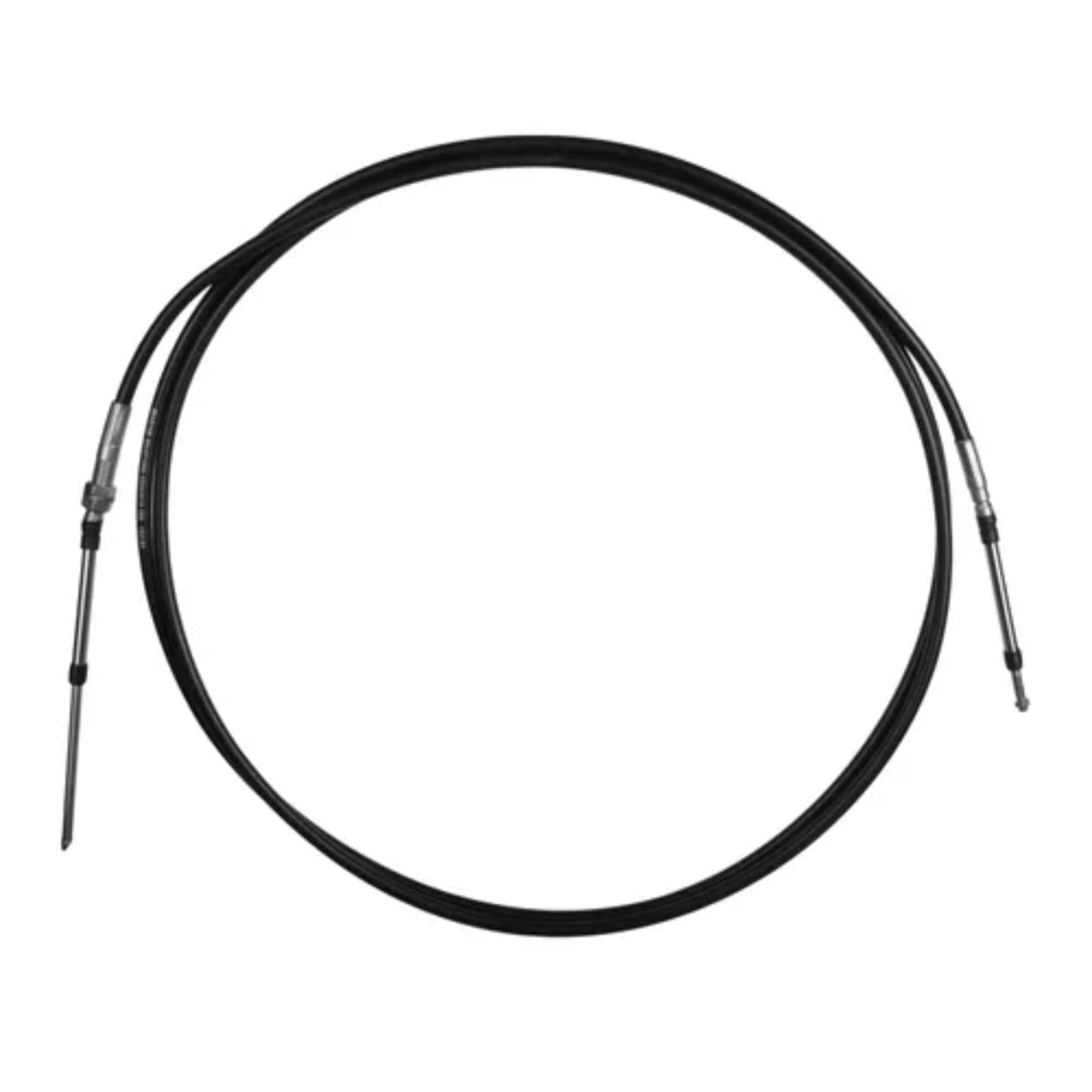

SeaStar Xtreme 6400BC Control Cable Assembly, 13 Feet, CCX64013
SeaStar Xtreme 6400BC Control Cable Assembly, 13 Feet, CCX64013
The SeaStar CCX64013 is a Xtreme 6400BC series control cable assembly built for marine engine and drive control systems. It is a "universal" type control cable designed to work with SeaStar Solutions and other brands of controls that accept the 6400/64 series cable design, making it a common replacement choice for boats using this cable style. The cable measures 13 feet in length and features one bulkhead fitting and one clamp-type fitting, with a 5/16-24 threaded terminal at each end for secure connection to the control head and engine or drive components.
This cable provides 4 inches of nominal travel and has an 8 inch minimum bend radius, which should be observed during routing and installation to avoid kinking or binding the cable and to maintain smooth, reliable shift or throttle response. The 64 Series design is not interchangeable with 63 Series cables, so boat owners should confirm their control system uses the 64 Series / 6400 style before ordering. The CCX64013 is part of the CCX640XX cable range within the 6400/64 Series family, which uses 5/16-24 threaded ends throughout the lineup.
Specifications
- Brand: SeaStar
- Manufacturer Part Number: CCX64013
- Series: 6400/64 Series (5/16-24 ends)
- Cable Type: 6400 BC cable (CCX640XX)
- Fitting Configuration: One bulkhead fitting and one clamp fitting
- Terminal Ends: One 5/16-24 threaded terminal at each end
- Nominal Travel: 4 inches
- Minimum Bend Radius: 8 inches
- Cable Length: 13 feet
- Weight: 1 pound
- Product Dimensions: 3.5 x 27 x 20 inches
Fitment
- Compatible with SeaStar Solutions controls and other brands of controls that accept the 6400/64 series control cable
Replaces (OEM)
- No OEM cross-reference numbers listed for this part
Frequently Asked Questions
What is the CCX64013 control cable used for? The CCX64013 is a SeaStar Xtreme 6400BC series control cable assembly used to connect a boat's control head to the engine or drive for throttle or shift function.
How long is the CCX64013 cable? This cable measures 13 feet in length, as indicated by the CCX64013 part number.
What controls is the CCX64013 compatible with? It is a universal-type 6400 BC cable designed to work with SeaStar Solutions controls and other brands of controls that accept the 6400/64 series cable design.
Can a 63 Series cable be used in place of the CCX64013? No, 64 Series cables such as the CCX64013 cannot be replaced by 63 Series cables; the two series are not interchangeable.
What type of end fittings does the CCX64013 have? The CCX64013 has one bulkhead fitting and one clamp-type fitting, with a 5/16-24 threaded terminal at each end of the cable.
What is the nominal travel of the CCX64013 control cable? The CCX64013 provides 4 inches of nominal travel.
What is the minimum bend radius for routing the CCX64013? This cable has an 8 inch minimum bend radius, which should be respected during installation and routing to prevent damage.
How much does the CCX64013 control cable weigh? The CCX64013 control cable assembly weighs 1 pound.
What size are the threaded terminals on the CCX64013? Each end of the CCX64013 has a 5/16-24 threaded terminal.
Is the CCX64013 part of a larger cable family? Yes, the CCX64013 belongs to the 6400/64 Series family of control cables, which use 5/16-24 ends and includes the CCX640XX cable range.
Does the CCX64013 include mounting hardware? The CCX64013 is a complete cable assembly with a bulkhead fitting, a clamp fitting, and threaded terminals at each end; no additional fitting details beyond these are specified.
