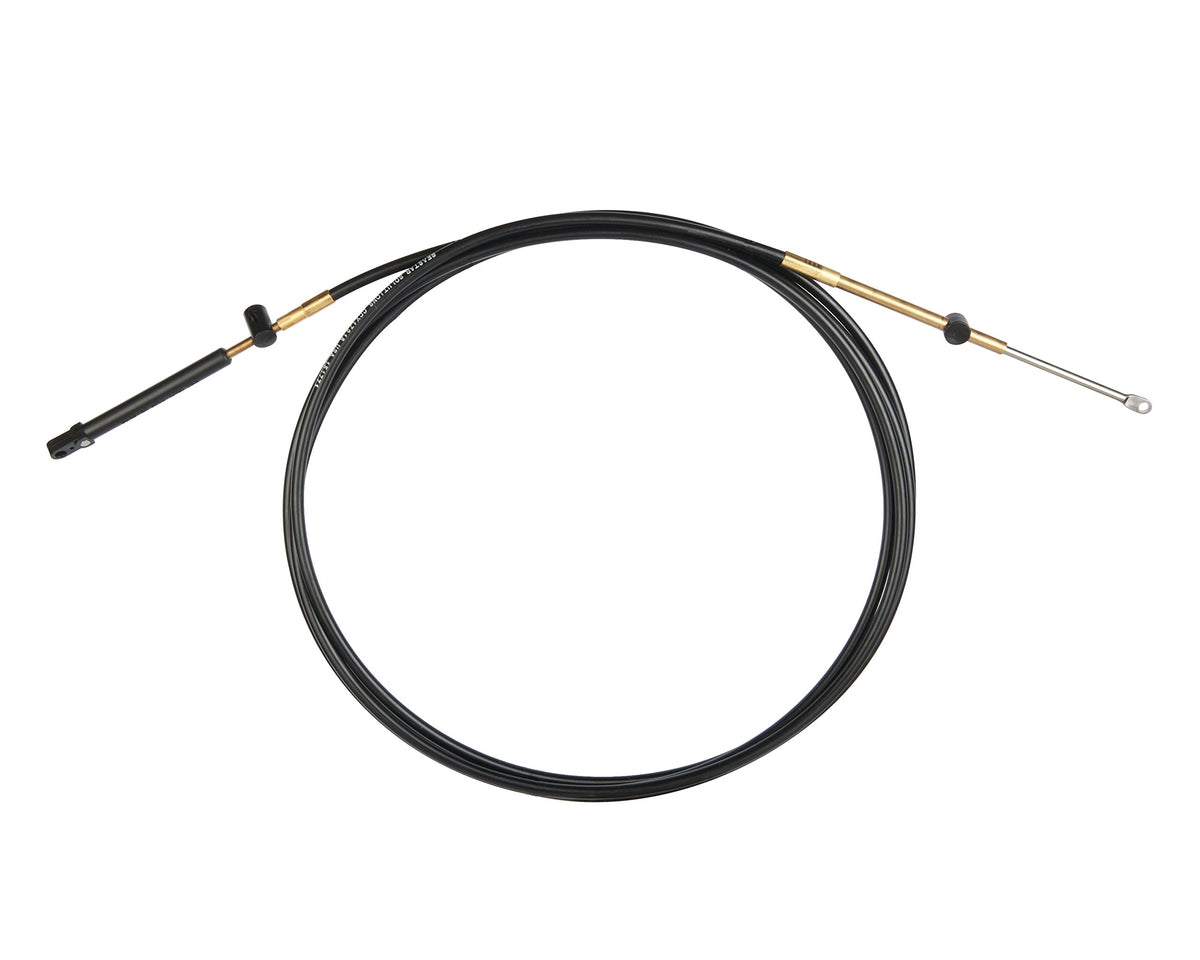

SeaStar XTREME Control Cable CCX17909, 9 Feet, for 1993-date Force (US Marine) with Mercury Controls

The SeaStar CCX17909 XTREME Control Cable is a 9-foot control cable engineered as a direct replacement for the Mercury 600A style control cable, designed to work with the existing connection components on the engine's control head. It is built for 1993-date Force (US Marine) engines using Force/US Marine/Mercury controls, and it is also used on Mercury, MerCruiser, and Mariner engines from 1965-date with Mercury controls.

This cable uses SeaStar's XTREME Technology, which incorporates a patented splined core. Ridges on the core provide a close fit with the cable's inner liner, allowing smooth movement with minimum lost motion. The XTREME design gives the cable a 4-inch minimum bend radius, versus an 8-inch minimum bend radius on standard control cables, which makes it well suited to complex or long cable runs, or simply for a smoother feel at the helm.

The cable is built with a 0.34-inch super tough HDPE outer jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil. Inside, it uses 0.033-inch oil tempered lay wires for strength and performance, with stainless or nylon covered core wires and moisture protective seals for added corrosion protection. Stainless steel terminals and brass fittings further protect against corrosion. The cable's HDPE liner is lubricated at the factory for life, giving ultra smooth, long-wearing operation. It is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX17909
• Cable Type: XTREME Control Cable
• Length: 9 feet
• Jacket Material: High-Density Polyethylene, 0.34 inch
• Core Wire: 0.033 inch oil tempered lay wires, stainless or nylon covered with moisture protective seals
• Minimum Bend Radius: 4 inches (XTREME); standard control cables require 8 inches
• Terminals: Stainless steel
• Fittings: Brass
• Compatible Controls: Mercury controls
• Compatibility: 1993-date Force (US Marine) with Force/US Marine/Mercury controls; Mercury, MerCruiser, Mariner (1965-date) with Mercury controls
• Weight: 1.59 pounds
• UPC: 808282272166
• Country of Origin: Made in U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• 1993-date Force (US Marine) with Force/US Marine/Mercury controls
• Mercury, MerCruiser, Mariner engines (1965-date) with Mercury controls
• All Mariner engines with Mercury/Mariner controls, except pre-1993 Mariner models rated 40 HP and lower

Frequently Asked Questions

What engines does the CCX17909 control cable fit? The SeaStar CCX17909 XTREME control cable is built for 1993-date Force (US Marine) engines using Force/US Marine/Mercury controls, and it also fits Mercury, MerCruiser, and Mariner engines from 1965-date that use Mercury controls.

Does this cable work with Mariner outboards? Yes, all Mariner engines with Mercury/Mariner controls are compatible with the CCX17909, except pre-1993 Mariner models rated 40 HP and lower.

How long is the CCX17909 control cable? It measures 9 feet, matching the length designation in the CCX17909 part number.

What is the minimum bend radius of this cable? 4 inches. The CCX17909 uses SeaStar's XTREME Technology to achieve this tighter minimum bend radius, compared to an 8-inch minimum bend radius on standard control cables.

What is the outer jacket made of? A 0.34-inch super tough HDPE (high-density polyethylene) jacket covers the CCX17909, resisting abrasion and withstanding UV, salt water, chemicals, gasoline, and oil.

Is the CCX17909 a direct replacement for my OEM Mercury cable? It is engineered as a replacement for the Mercury 600A style control cable and is designed to use the existing connection components at the control head, so no additional hardware swap is needed.

How much does the CCX17909 weigh? 1.59 pounds.

What warranty applies to this control cable? SeaStar backs the CCX17909 with a two-year recreational user warranty against manufacturing defects.

What are the core wires made of? 0.033-inch oil tempered lay wires, with stainless or nylon covered core wires and moisture protective seals for corrosion resistance.

Where is the CCX17909 made? The CCX17909 control cable is made in the U.S.A.

What are the terminals and fittings made of? Stainless steel terminals and brass fittings, both chosen for added corrosion protection on the CCX17909.

Does the CCX17909 come pre-lubricated? Yes, it is lubricated at the factory for life, with an HDPE liner that stays ultra smooth throughout the cable's service life.
