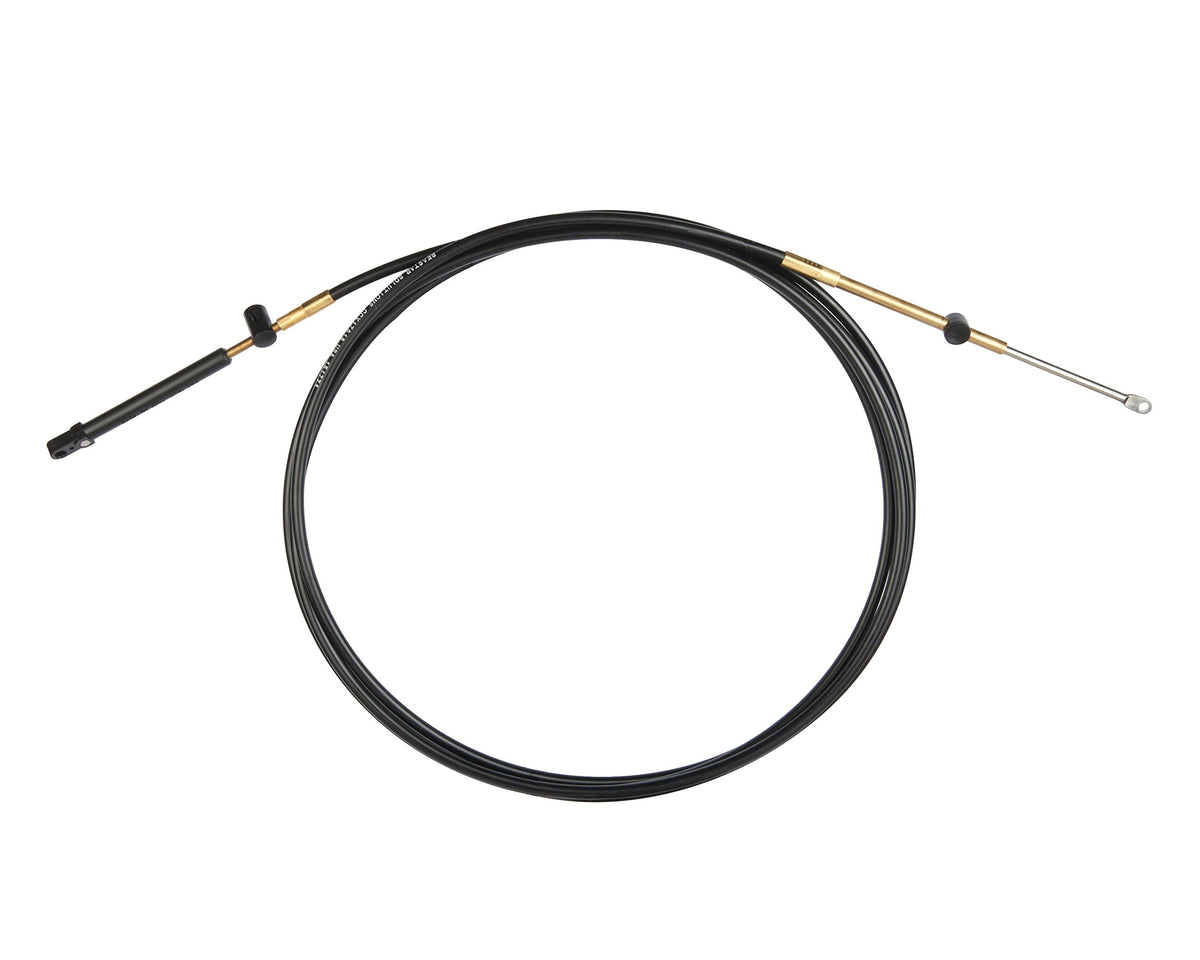

SeaStar Xtreme CCX17913 Control Cable, 13 Feet, Mercury 600A Style Replacement for Mercury/MerCruiser/Mariner/Force Engines

The SeaStar CCX17913 is a 13-foot Xtreme control cable engineered as a drop-in replacement for the Mercury 600A style control cable, using the existing connection components on the engine and control head. It is built for Mercury, MerCruiser, Mariner, and Force engines (1965-date for Mercury/MerCruiser/Mariner and 1993-date for Force) that run Mercury, Quicksilver, or Mariner controls, including SeaStar Solutions Osprey and SL-3 Series control heads.

Xtreme Technology gives this cable a patented splined core: ridges on the core create a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. That construction also delivers a 4-inch minimum bend radius, versus an 8-inch minimum bend radius on standard control cables, so it is well suited to complex routing, long cable runs, or performance and bass boats where a tighter, more direct feel is wanted.

The cable uses a 0.34-inch super tough HDPE outer jacket that resists abrasion, UV exposure, salt water, chemicals, gasoline, and oil, over 0.033-inch oil tempered lay wires for strength and consistent performance. Stainless steel terminals and brass fittings add corrosion protection, and the HDPE liner is lubricated for life at the factory. The cable is coiled in protective tubing and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX17913
• Cable Length: 13 feet
• Cable Family: Xtreme control cable, splined core
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34-inch HDPE, UV/salt water/chemical/gasoline/oil resistant
• Core Wires: 0.033-inch oil tempered lay wires, stainless or nylon covered core wires
• Terminals: Stainless steel
• Fittings: Brass
• Color: Gold
• Weight: 2.02 pounds
• Package Type: Coiled in protective tubing
• Compatible Controls: Mercury, Quicksilver, Mariner controls
• Country of Origin: Made in the U.S.A.
• UPC: 808282272203
• Warranty: Limited two-year recreational user warranty

Fitment

• Mercury, MerCruiser, and Mariner engines (1965-date) with Mercury controls
• Force engines (1993-date) with Force, US Marine, or Mercury controls
• All Mariner engines with Mercury/Mariner controls, except pre-1993 Mariner engines of 40 HP and lower
• SeaStar Solutions Osprey and SL-3 Series controls to Mercury, MerCruiser, Mariner, and most Force engines

Replaces (OEM)

Direct drop-in replacement for the Mercury 600A style control cable, using the existing connection components at the engine and control head.

Frequently Asked Questions

What engines and controls does the CCX17913 fit? The CCX17913 fits Mercury, MerCruiser, and Mariner engines (1965-date) with Mercury controls, and Force engines (1993-date) with Force, US Marine, or Mercury controls. It also fits SeaStar Solutions Osprey and SL-3 Series controls paired with Mercury, MerCruiser, Mariner, or most Force engines.

Does this cable fit all Mariner outboards? It fits Mariner engines with Mercury/Mariner controls, with one exception: pre-1993 Mariner engines of 40 HP and lower are not covered by the CCX17913.

How long is the CCX17913 control cable? The CCX17913 is 13 feet long, and buyers should confirm this is the correct length for their control-to-engine run before ordering, since control cables are not field-cuttable to length.

Is the CCX17913 a direct replacement for my existing cable? Yes. The CCX17913 is designed as a drop-in replacement for the Mercury 600A style control cable and uses the existing connection components at both the control head and the engine, so no adapter parts are needed.

What makes the Xtreme cable different from a standard control cable? The Xtreme design in the CCX17913 uses a patented splined core that keeps a close fit with the cable's inner liner for smoother, low-lost-motion movement, and it allows a 4-inch minimum bend radius compared to an 8-inch minimum on standard control cables.

What is the outer jacket made of and how durable is it? The CCX17913 has a 0.34-inch HDPE outer jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil, making it suited to continuous marine exposure.

What are the core wires made of? The core of the CCX17913 uses 0.033-inch oil tempered lay wires for strength, with stainless or nylon covered core wires for added corrosion protection and longer service life.

Are the terminals and fittings corrosion resistant? Yes, the CCX17913 uses stainless steel terminals and brass fittings, both chosen for corrosion resistance in a marine environment.

Does the CCX17913 come pre-lubricated? Yes, the cable's HDPE liner is lubricated for life at the factory, so no additional lubrication is required at installation.

What is included when I order the CCX17913? Each order includes one CCX17913 control cable assembly, 13 feet in length, coiled in protective tubing for shipping and storage.

How much does the CCX17913 weigh? The CCX17913 control cable weighs 2.02 pounds.

Is the CCX17913 suitable for performance or bass boats? Yes, its tighter 4-inch minimum bend radius and low-lost-motion splined core make the CCX17913 well suited to performance and bass boats and to complex or long control cable runs.
