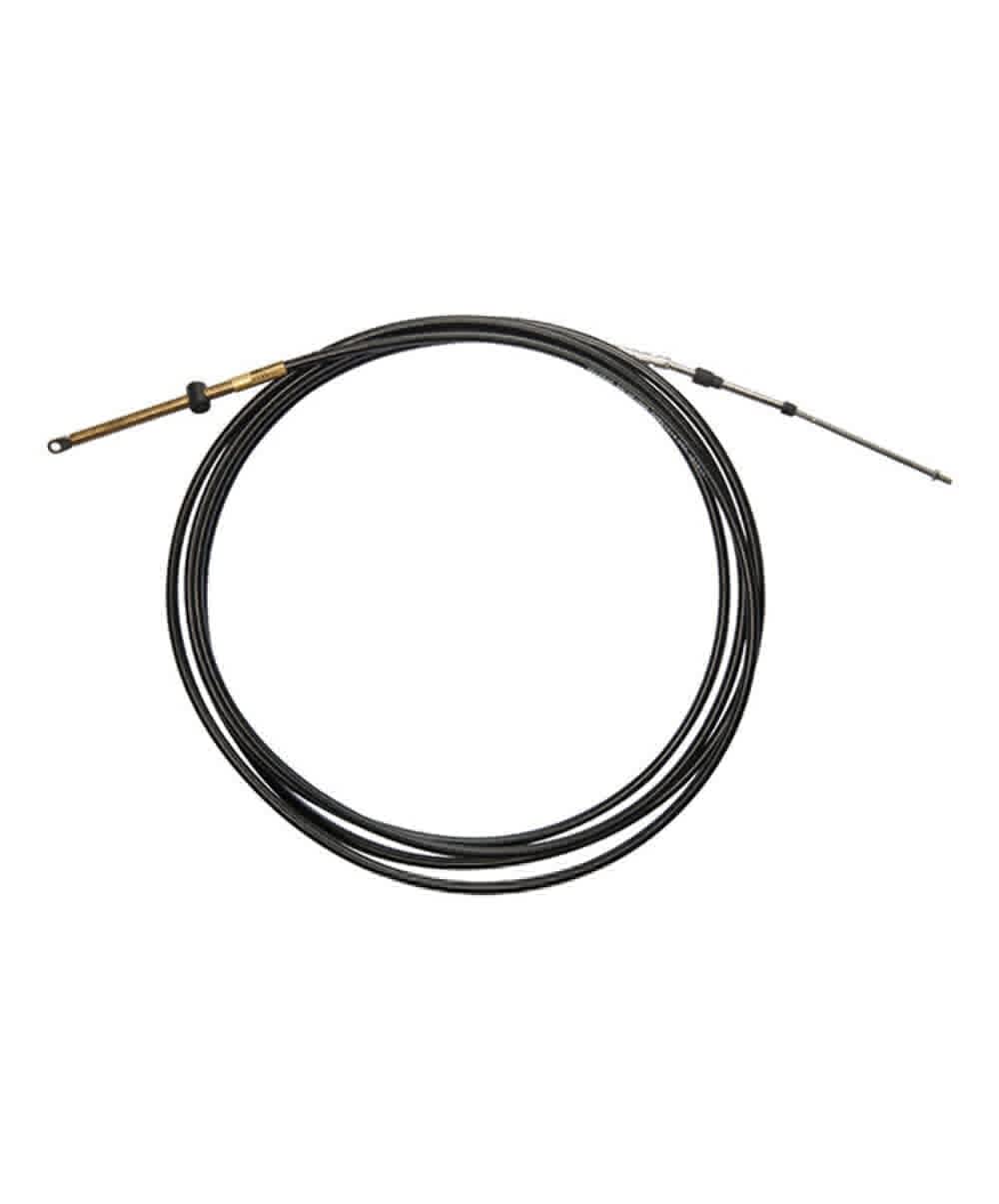

SeaStar Xtreme Control Cable CCX21417, 17 Feet, OMC-Volvo Penta Side Mount

The SeaStar Xtreme Control Cable CCX21417 is a 17-foot drop-in replacement cable engineered for OMC side mount controls that accept the OMC "snap in" OEM-type cable connection, including Volvo Penta engines using BRP/OMC side mount controls. Because it uses the existing connection components, it installs as a direct swap without modifying the control head or engine hardware.

Built on SeaStar's Xtreme Technology, the cable uses a patented splined core with ridges that hold a close fit against the cable's inner liner, giving smoother movement and minimal lost motion compared to standard cables. It carries a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs and to foot-throttle setups on performance and bass boats. The core wires are 0.033 inch oil-tempered lay wire for strength, riding inside a long-wearing HDPE liner that is lubricated for life. Stainless steel terminals and brass fittings guard the connection points against corrosion, and the outer jacket is 0.34 inch super-tough HDPE that resists abrasion, UV, salt water, chemicals, gasoline, and oil. The cable is made in the U.S.A. And exceeds ABYC safety standards and ISO/IMCI/NMMA certification requirements.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX21417
• Cable Length: 17 feet
• Weight: 1.06 pounds
• Material: Metal
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34 inch Super Tough HDPE
• Core Wire: 0.033 inch oil tempered lay wire
• Terminals: Stainless steel terminals with brass fittings
• Item Dimensions: 17 x 1.5 x 17 inches
• Package Dimensions: 17.4 x 17.3 x 1.1 inches
• Compatible Controls: OMC side mount controls with OMC snap-in style cable connection
• Country of Origin: Made in the U.S.A.
• UPC: 808282273422

Fitment

• OMC Turbo Jets with OMC side mount controls that accept the OMC snap-in OEM-type cable
• Volvo Penta engines using BRP/OMC side mount controls

Replaces (OEM)

• Uses existing connection components; no OEM cross-reference numbers listed for this part

Frequently Asked Questions

What is the SeaStar CCX21417 control cable used for? The CCX21417 is a 17-foot drop-in replacement control cable for OMC side mount controls that accept the OMC snap-in OEM-type cable connection, including Volvo Penta engines using BRP/OMC side mount controls.

Will CCX21417 fit my Volvo Penta engine? Yes, if your Volvo Penta engine uses BRP/OMC side mount controls with the OMC snap-in style cable connection, the CCX21417 is designed as a direct-replacement fit.

How long is this control cable? This cable measures 17 feet, matching the length designation in the CCX21417 part number.

Do I need new connectors or hardware to install CCX21417? No, CCX21417 is engineered to use the existing connection components at the control head, so it installs as a straightforward swap for the original cable.

What makes the Xtreme cable different from a standard control cable? The Xtreme Technology in CCX21417 has a 4 inch minimum bend radius versus an 8 inch minimum bend radius on standard cables, plus a patented splined core for smoother movement with less lost motion.

What is the outer jacket made of? CCX21417 has a 0.34 inch Super Tough HDPE jacket that resists abrasion, UV exposure, salt water, chemicals, gasoline, and oil.

How much does the CCX21417 cable weigh? The CCX21417 control cable weighs 1.06 pounds.

Is this cable suitable for a foot throttle setup? Yes, the tight 4 inch minimum bend radius on CCX21417 makes it well suited for foot-throttle applications on performance and bass boats, and for complex or long cable runs.

What corrosion protection does CCX21417 have? CCX21417 uses stainless steel terminals and brass fittings, along with moisture-protective seals on the core wire, for added corrosion resistance.

Where is the CCX21417 cable made? The CCX21417 control cable is made in the U.S.A.

Does CCX21417 meet marine safety standards? Yes, CCX21417 exceeds ABYC safety standards and meets ISO/IMCI/NMMA certification requirements.

Is CCX21417 for side mount or top mount controls? CCX21417 is built for OMC side mount controls; a separate cable line exists for OMC top mount controls, so confirm your control type before ordering.
