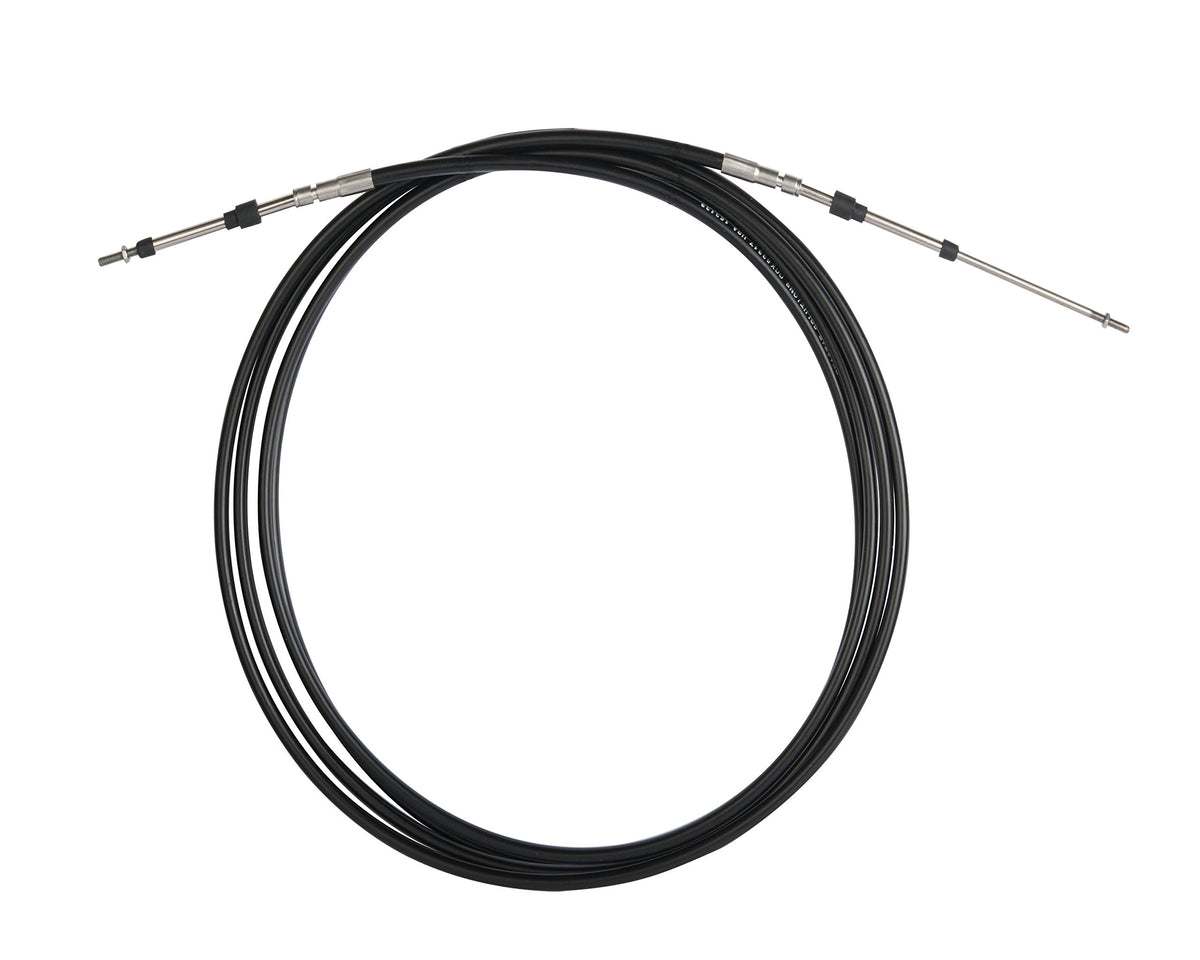

SeaStar CCX63311 Xtreme 3300/33C Control Cable, 11 Feet, Dual-Station Pull Throttle

The SeaStar CCX63311 is an 11-foot Xtreme 3300/33C control cable engineered for dual-station mechanical throttle and shift setups. SeaStar Solutions recommends this 33C cable specifically for use with its DS unit, which allows a single station selector to serve either a single engine or a dual-station boat, and lets side mount controls be used in dual-station applications. Simply put both levers in neutral and turn the selector switch to change stations. Note that this DS throttle unit is a pull-only configuration; a push throttle setup requires the outboard DS throttle unit instead.

Built with SeaStar's patented Xtreme splined core, the cable uses ridges on the core to keep a close fit with the inner liner, giving smooth movement with minimal lost motion. The core is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, while 0.033 inch oil tempered lay wires add strength and performance. Each end terminates in a 10-32 threaded terminal with a clamp-type fitting, compatible with existing connection components on aftermarket and OEM engine controls. The Xtreme design gives a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, making it well suited to tight or complex cable runs. Terminals and conduit fittings are stainless steel for corrosion protection, the cable is lubricated for life at the factory, and it is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63311
• Cable Length: 11 feet
• Cable Type: 3300/33C Xtreme control cable
• Terminal Type: 10-32 threaded terminal with clamp-type fitting at each end
• Minimum Bend Radius: 4 inches
• Jacket Thickness: 0.34 inch
• Jacket Material: Super Tough HDPE
• Lay Wire Diameter: 0.033 inch, oil tempered
• Core Type: Splined, coated Xtreme core element
• Terminal/Fitting Material: Stainless steel
• Color: Black
• Weight: 1 pound
• Country of Origin: Made in the U.S.A.
• Recommended Use: Dual-station (DS) mechanical control unit, pull-only throttle setup

Frequently Asked Questions

How long is the CCX63311 control cable? The CCX63311 measures 11 feet in length, so confirm this is the correct length for your control run before ordering since cable length cannot be adjusted after purchase.

What is this cable used for? This 33C cable is recommended for use with SeaStar's DS unit, letting dual-station boats use a single station selector for either a single engine or dual-station setup; both levers are put in neutral and the selector switch is turned to change stations.

Is this a push or pull throttle cable? The CCX63311 is set up for a pull-only DS throttle unit. If you need a push throttle configuration, the outboard DS throttle unit should be used instead.

What size are the cable end terminals? Each end of the CCX63311 has a 10-32 threaded terminal with a clamp-type fitting, designed to use existing connection components on compatible engine controls.

What makes the Xtreme cable different from a standard 3300/33C cable? The Xtreme technology in the CCX63311 gives a 4 inch minimum bend radius compared to an 8 inch minimum bend radius on standard cables, and uses a patented splined core for smoother movement with less lost motion.

What is the cable jacket made of? The CCX63311 has a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil exposure.

Does the CCX63311 need lubrication after installation? No, the cable is lubricated for life at the factory, so no additional lubrication is required during normal use.

What are the lay wires made of? The CCX63311 uses 0.033 inch oil tempered lay wires, chosen for superior strength and performance in the control cable core.

Where is the CCX63311 manufactured? The CCX63311 control cable is made in the U.S.A.

How much does the CCX63311 weigh? The CCX63311 weighs 1 pound.

Can this cable be used for a single-engine boat? Yes, the DS setup that the CCX63311 is designed for allows one station selector to be used for either a single engine or a dual-station boat configuration.

What color is the CCX63311 cable? The CCX63311 control cable is black.
