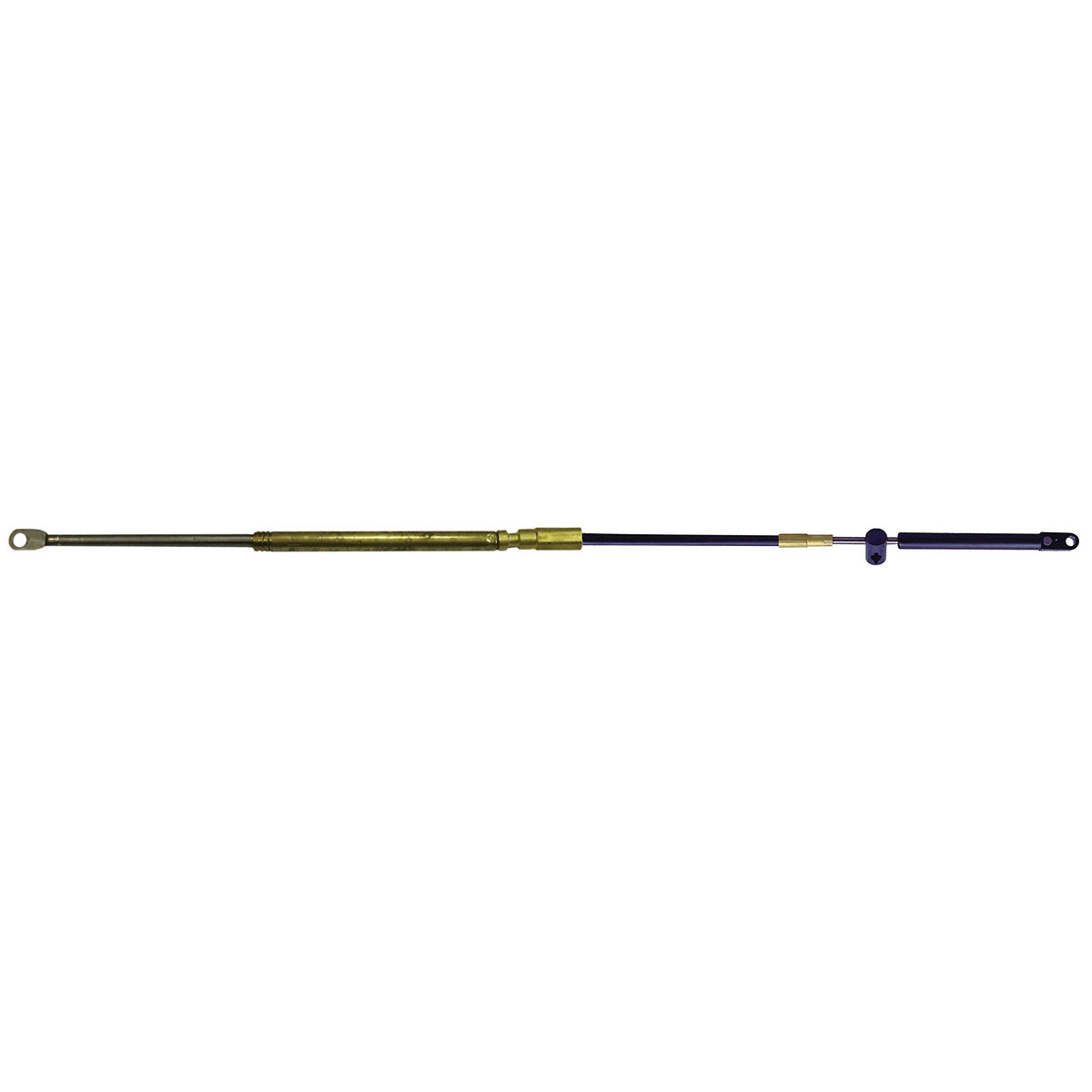

SeaStar Xtreme Gen II Control Cable CCX18924, 24 Feet, for Mercury 4000 Series Controls (2003-Date)

The SeaStar Xtreme Gen II Control Cable, CCX18924, is a 24 foot OEM direct-replacement type control cable engineered for Mariner, Mercury, and MerCruiser engines and other engines using Mercury 2003-date 4000 Series Controls. Built with SeaStar's Xtreme Technology, it features a patented splined core whose ridges create a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. The cable is designed as a drop-in replacement for original equipment cables and uses the existing connection components, so installation follows the same hookup as the factory cable it replaces.

Xtreme cables carry a 4 inch minimum bend radius, half the 8 inch minimum bend radius of standard control cables, making this cable well suited to complex or long cable runs and to foot throttle applications on performance and bass boats. The 0.34 inch Super Tough HDPE jacket resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil. Internally, 0.033 inch oil tempered lay wires provide strength and performance, while stainless steel terminals and brass fittings add corrosion protection. The HDPE liner is ultra smooth and lubricated for life at the factory. This cable exceeds engine manufacturer specifications and is Made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18924
• Product Type: Xtreme Gen II Control Cable
• Length: 24 feet
• Minimum Bend Radius: 4 inches
• Jacket: 0.34 inch Super Tough HDPE Jacket
• Lay Wires: 0.033 inch Oil Tempered
• Core: Xtreme Splined, Coated Core Element
• Terminals: Stainless Steel Terminals with Brass Fittings
• Liner: HDPE, Lubricated for Life
• Weight: 3.23 pounds
• Compatible Controls: Mercury 4000 Series Controls, 2003-date
• Country of Origin: Made in the U.S.A.
• Certification: Exceeds ABYC, ISO, IMCI, and NMMA standards
• Warranty: Two-year recreational user warranty

Fitment

• Mariner, Mercury, MerCruiser, and other engines using Mercury 2003-date 4000 Series Controls

Frequently Asked Questions

What is the CCX18924 control cable used for? CCX18924 is a 24 foot SeaStar Xtreme Gen II control cable used to connect an engine control head to the throttle or shift mechanism on Mariner, Mercury, and MerCruiser engines and other engines using Mercury 2003-date 4000 Series Controls.

How long is the CCX18924 cable? The CCX18924 measures 24 feet, and buyers should verify this is the correct length for their application before ordering since control cables are cut to length.

Will this cable fit my Mercury control head? CCX18924 is designed for Mariner, Mercury, and MerCruiser engines and other engines using Mercury 2003-date 4000 Series Controls; it is not intended for earlier Mercury control types.

What is the minimum bend radius of the CCX18924 cable? The CCX18924 Xtreme cable has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which makes it better suited to tight or complex cable runs.

What is the outer jacket made of? CCX18924 uses a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Is the CCX18924 cable pre-lubricated? Yes, the CCX18924 control cable is lubricated at the factory for life, so no additional lubrication is required during installation.

Can I install CCX18924 as a direct replacement for my original cable? Yes, CCX18924 is engineered as a drop-in replacement for original equipment control cables and uses the existing connection components at each end.

What internal components give the CCX18924 its strength? CCX18924 uses 0.033 inch oil tempered lay wires along with an Xtreme splined, coated core element for smooth movement with minimal lost motion.

Does the CCX18924 cable resist corrosion? Yes, CCX18924 has stainless steel terminals and brass fittings for corrosion protection, along with a moisture-protective liner.

How much does the CCX18924 control cable weigh? The SeaStar CCX18924 control cable weighs 3.23 pounds.

Where is the CCX18924 cable manufactured? CCX18924 is made in the U.S.A. By SeaStar.

Is the CCX18924 cable good for foot throttle applications? Yes, the tighter 4 inch bend radius of the CCX18924 Xtreme cable makes it well suited to foot throttle applications on performance and bass boats, as well as long or complex cable runs.
