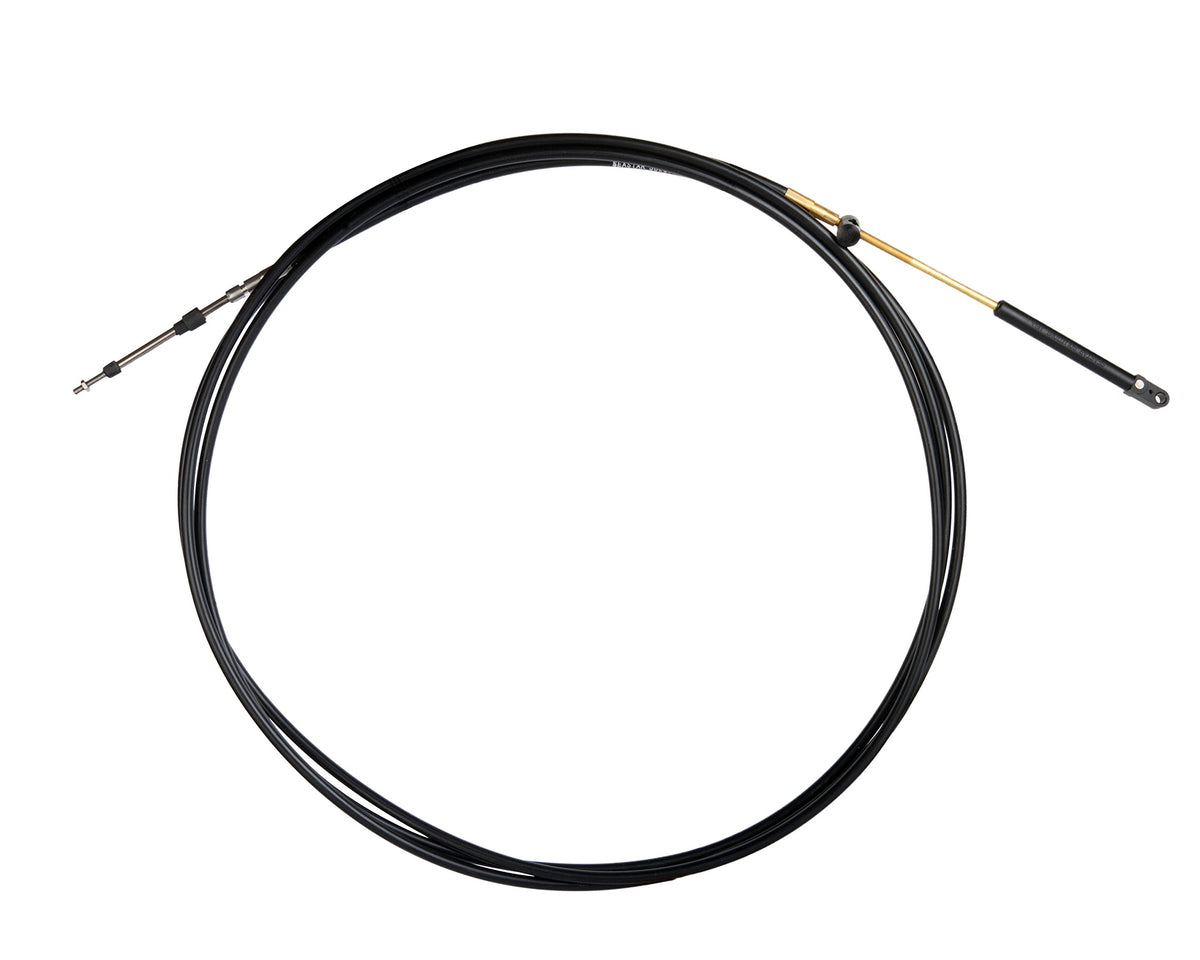

SeaStar CCX63016 Xtreme 3600 Mercury Control Cable, 16 Feet, 10-32 Threaded End

The SeaStar CCX63016 is a 16-foot Xtreme control cable built for Mercury 3600-type throttle and shift applications. It has a 10-32 threaded terminal at the control end and a Mercury type engine end connection, and it is a drop-in replacement cable that does not require the CA27319 connection kit at the engine end. SeaStar's Xtreme Technology core uses a patented splined core design, with ridges that create a close fit with the cable's inner liner for smooth movement and minimal lost motion. The cable gives a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which makes it well suited to tight or complex routing on performance and bass boats, including foot throttle setups.

Construction includes a 0.34 inch Super Tough HDPE outer jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, along with 0.033 inch oil tempered lay wires for strength and performance. The core wires are covered in stainless or nylon with moisture protective seals for added corrosion resistance, and the liner is a long wearing HDPE liner that is lubed for life. This cable is designed for Mercury products (1965-date) and Force products (1993-date) that use controls accepting 10-32 threaded ends, or most aftermarket controls, paired with a Mercury style engine end connection. It is Made in the U.S.A., exceeds ABYC safety standards, and is type certified to ISO/IMCI and NMMA requirements, and is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63016
• Cable Length: 16 feet
• Control End: 10-32 threaded terminal
• Engine End: Mercury type engine end connection
• Connection Kit Required: Not required (CA27319 kit not needed)
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34 inch Super Tough HDPE
• Lay Wires: 0.033 inch oil tempered
• Core Wire Covering: Stainless or nylon covered core wires with moisture protective seals
• Liner: Long wearing HDPE liner, lubed for life
• Weight: 2.2 pounds
• Country of Origin: Made in the U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection

Replaces (OEM)

No specific OEM part numbers are listed for this cable; it is designed as a drop-in replacement for Mercury (1965-date) and Force (1993-date) applications using 10-32 threaded controls, without requiring the CA27319 connection kit.

Frequently Asked Questions

What is the SeaStar CCX63016 control cable used for? The CCX63016 is a 16-foot Xtreme control cable for Mercury 3600-type throttle and shift applications, connecting the helm control to the engine with a 10-32 threaded terminal at the control end and a Mercury type engine end.

Does the CCX63016 fit my Mercury engine? This cable fits Mercury products (1965-date) that use controls which accept 10-32 threaded ends or most aftermarket controls, along with a Mercury style engine end connection.

Will this cable work on a Force outboard? Yes, the CCX63016 is also designed for Force products (1993-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection.

Do I need the CA27319 connection kit with this cable? No, the CCX63016 does not require the CA27319 connection kit at the engine end; it is a drop-in replacement cable that uses a Mercury type engine end connection.

How long is the CCX63016 cable? The CCX63016 is 16 feet long, and buyers should verify this is the correct length for their application before ordering since control cables are length-specific.

What makes an Xtreme control cable different from a standard control cable? SeaStar's Xtreme Technology cables, including the CCX63016, use a patented splined core for maximum smoothness with minimal lost motion, and offer a 4 inch minimum bend radius compared to an 8 inch minimum bend radius on standard cables.

What is the outer jacket made of? The CCX63016 has a 0.34 inch Super Tough HDPE outer jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

Is the CCX63016 corrosion resistant? The core wires on this cable are stainless or nylon covered with moisture protective seals, which adds corrosion protection and extends the cable's life in marine use.

Is the CCX63016 good for foot throttle applications? Yes, SeaStar markets this Xtreme control cable as ideal for foot throttle applications on performance and bass boats, and for complex or long cable runs.

Where is the CCX63016 control cable made? The CCX63016 is Made in the U.S.A. And exceeds ABYC safety standards, with type certification to ISO/IMCI and NMMA requirements.

What warranty comes with the CCX63016? SeaStar backs the CCX63016 control cable with a two-year recreational user warranty against manufacturing defects.

How much does the CCX63016 weigh? The SeaStar CCX63016 control cable weighs 2.2 pounds.
