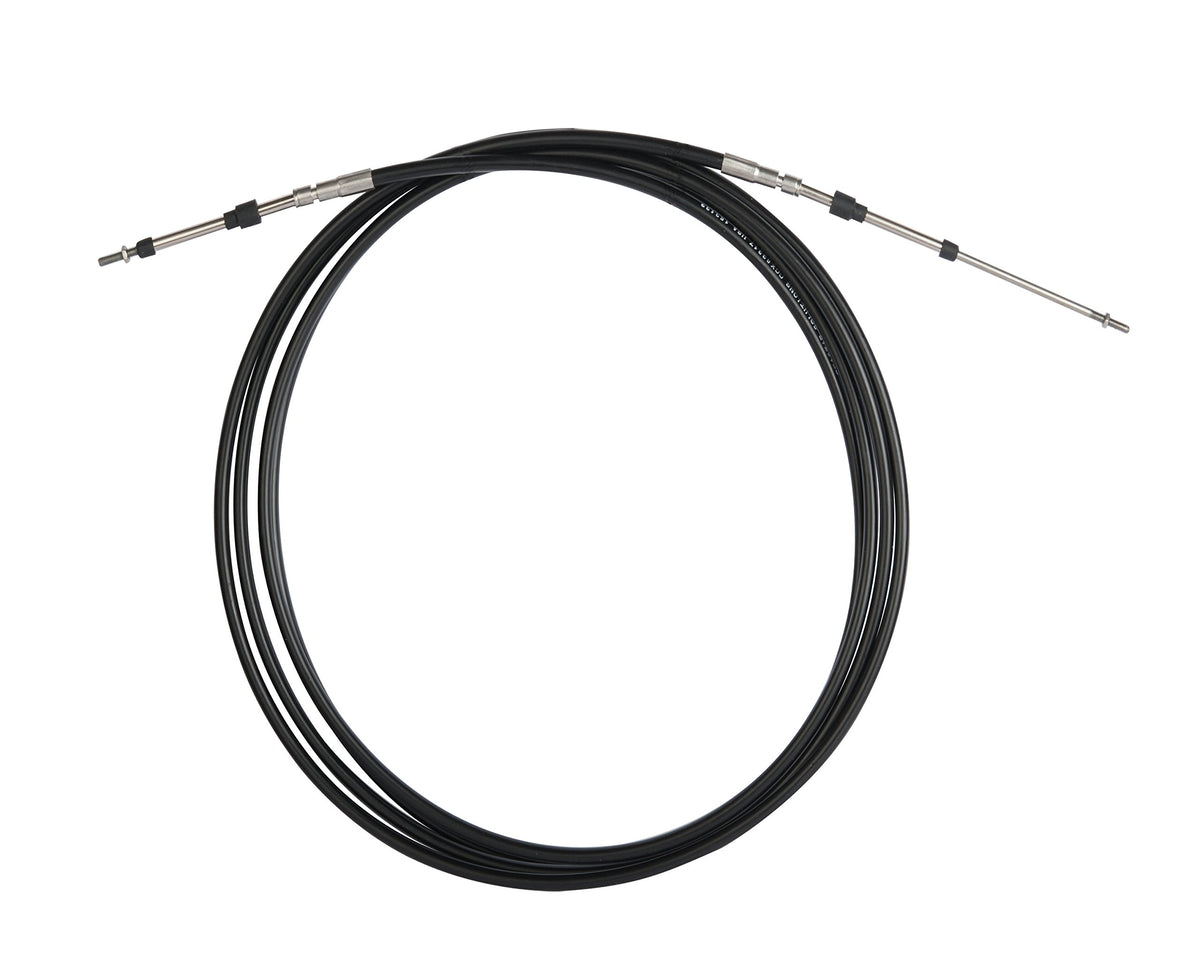

SeaStar CCX63320 3300 TFXtreme Control Cable, 20 Feet, Universal 10-32 Threaded

The SeaStar CCX63320 is a 20 foot 3300 (33C) TFXtreme control cable built for dual function mechanical engine and steering controls. It uses SeaStar's XTREME Technology, a patented splined core with ridges that create a close fit with the cable's inner liner, allowing smooth, low-friction movement with minimal lost motion. The cable terminates in a Universal 10-32 threaded terminal with a clamp-type fitting at each end, so it works with the existing connection components on aftermarket engine controls as well as many original equipment manufacturer units.

An oil tempered 0.033 inch lay wire core delivers strength and consistent feel, while a 0.34 inch super tough HDPE jacket resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil. Stainless steel terminals and conduit fittings add corrosion protection, and the liner is lubricated for life at the factory. The XTREME construction gives this cable a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs and to foot throttle applications on performance and bass boats.

This cable is designed to be used as the 33C cable recommended for a dual station (DS) throttle unit, letting dual function mechanical controls be used on a dual station boat with a single station selector for either a single engine or dual station setup. The DS throttle unit it pairs with is a pull-only configuration; a separate outboard DS throttle unit is used for push throttle applications. The cable fits controls that accept Universal type 10-32 threaded cable ends, including many inboard applications and outboard engines from manufacturers such as BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and Tohatsu; Evinrude, Johnson, OMC, and Mercury engines can also be fitted with the correct engine adapter kit.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63320
• Cable Series: 3300 (33C) TFXtreme
• Length: 20 feet
• Connector Type: 10-32 threaded, clamp-type fitting
• Connector Gender: Male-to-male
• Core Wire: 0.033 inch oil tempered lay wires with splined, coated core
• Outer Jacket: 0.34 inch HDPE, UV, salt water, chemical, gasoline, and oil resistant
• Minimum Bend Radius: 4 inches
• Terminal and Conduit Fittings: Stainless steel
• Color: Black
• Weight: 2.55 pounds
• Country of Origin: Made in the U.S.A.

Fitment

• Aftermarket engine controls and OEM units accepting Universal 10-32 threaded cable ends
• Recommended for use with dual station (DS) throttle units in a pull-only configuration
• Inboard applications and outboard engines from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and Tohatsu
• Evinrude, Johnson, OMC, and Mercury engines with the correct engine adapter kit

Frequently Asked Questions

What is the CCX63320 control cable used for? The SeaStar CCX63320 is a 20 foot 3300 (33C) TFXtreme control cable used with dual function mechanical engine and steering controls, and it is the recommended 33C cable for a dual station (DS) throttle unit.

Is this cable compatible with my engine controls? Yes, as long as your controls accept Universal type 10-32 threaded cable ends. The CCX63320 fits aftermarket engine controls and many OEM units, including inboard applications and outboard engines from BMW, Chrysler, Honda, Nissan, Suzuki, Volvo, Yamaha, and Tohatsu.

Will this cable work with an Evinrude, Johnson, OMC, or Mercury outboard? It will fit those engines when used with the correct engine adapter kit, since the CCX63320 terminates in a Universal 10-32 threaded connection rather than those manufacturers' proprietary fittings.

How long is the CCX63320 cable? This control cable measures 20 feet in length, matching the 20 in its part number.

Does this cable work for push throttle setups? No. This 33C cable is intended for a pull-only DS throttle unit; a push throttle application requires the outboard DS throttle unit instead.

What makes the TFXtreme design different from a standard 33C control cable? The CCX63320 uses XTREME Technology with a patented splined core that creates a close fit with the cable's inner liner, giving a 4 inch minimum bend radius versus the 8 inch minimum bend radius typical of standard control cables, which helps on tight or long cable runs.

What is the outer jacket made of and how durable is it? The cable has a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX63320 need to be lubricated before installation? No, the cable's liner is lubricated for life at the factory, so no additional lubrication is needed before or during installation.

What connector type does this cable use? The CCX63320 has a 10-32 threaded terminal with a clamp-type fitting at each end, and uses existing connection components on Universal type controls.

How much does the CCX63320 weigh? The SeaStar CCX63320 control cable weighs 2.55 pounds.

Is dual station operation supported with this cable? Yes, the CCX63320 allows dual function mechanical controls to be used in a dual station boat, and only one station selector is required for either a single engine or dual station setup.

Where is this control cable manufactured? The SeaStar CCX63320 is made in the U.S.A.
