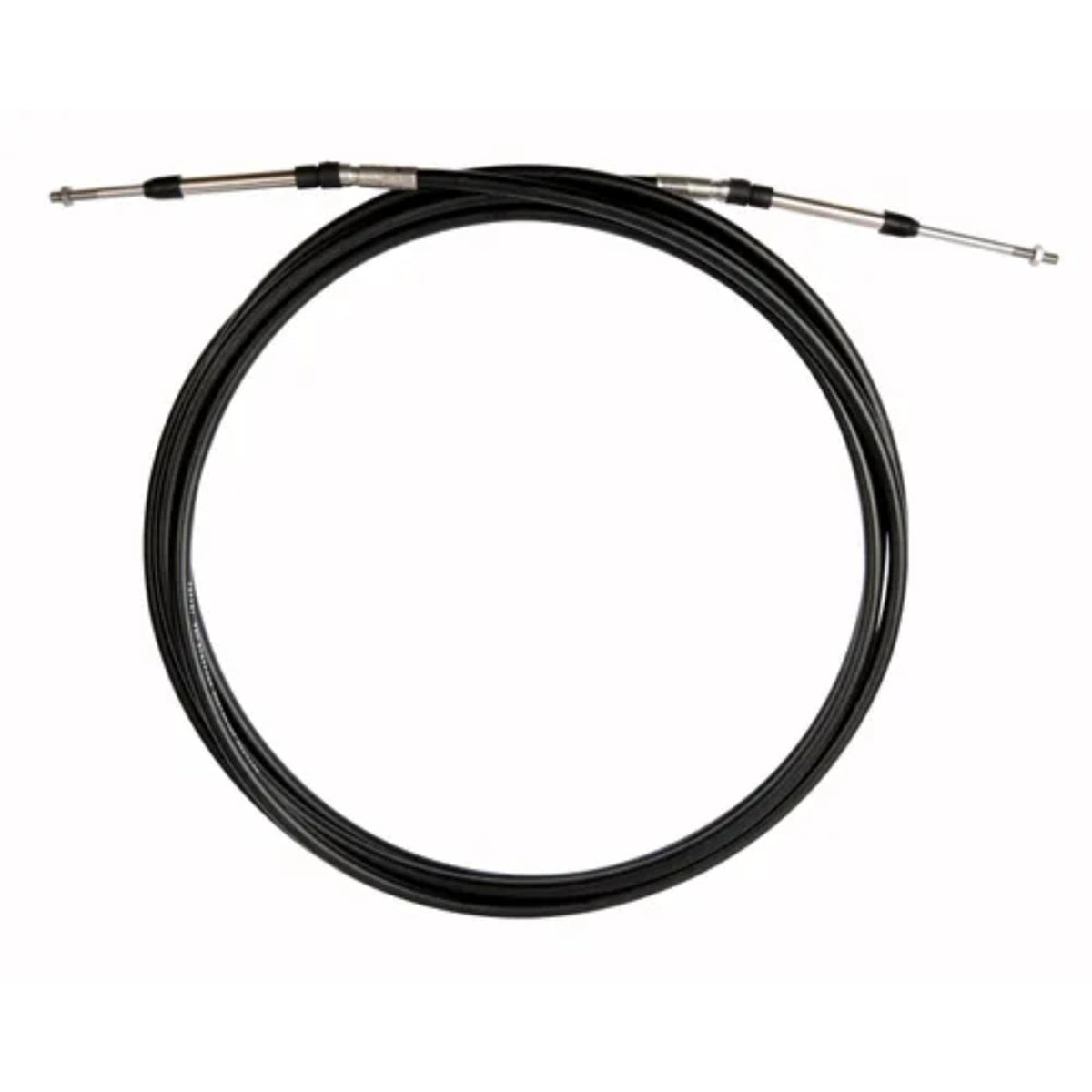

Dometic CCX43321 Xtreme 4300CC Control Cable Assembly, 21 Feet

The Dometic CCX43321 is a Xtreme 4300CC control cable assembly measuring 21 feet in length, built for reliable throttle and shift control runs between the helm station and the outboard or sterndrive engine. The cable core is protected by a black HDPE (high-density polyethylene) outer casing engineered for durability and strong resistance to UV exposure and chemical contact, making it suited to the harsh marine environment where sun, saltwater, and fuel or oil residue can degrade lesser materials over time.

Each end of the CCX43321 terminates in a 1/4-28 threaded terminal paired with a clamp-type fitting, allowing a secure, positive connection at both the control head and the engine end. The cable provides 3 inches of nominal travel and can be routed through a minimum bend radius of 5 inches, giving installers flexibility when running the cable through tight engine bays or around obstructions without kinking or binding the internal core. Dometic states that this cable meets or exceeds all applicable industry standards for marine control cables.

This 21-foot 4300CC cable is intended as a direct fit for boats and control systems already set up for the 4300CC cable type and terminal configuration. Confirm your existing control cable's part number and terminal style before ordering to ensure correct fitment.

Specifications

• Brand: Dometic
• Manufacturer Part Number: CCX43321
• Product Line: Xtreme 4300CC
• Length: 21 feet
• Weight: 3.85 pounds
• Product Dimensions: 1.6 x 17.1 x 17.1 inches
• Outer Casing Material: Black HDPE (high-density polyethylene)
• Terminal Thread: 1/4-28
• End Fitting: Clamp-type fitting at each end
• Nominal Travel: 3 inches
• Minimum Bend Radius: 5 inches
• UPC: 808282274269

Frequently Asked Questions

What length is the Dometic CCX43321 control cable? The CCX43321 is 21 feet long, part of the Xtreme 4300CC control cable line from Dometic.

What is the CCX43321 cable's outer casing made of? It uses a black HDPE (high-density polyethylene) outer casing, chosen for durability and resistance to UV exposure and chemical contact in marine environments.

What kind of terminal does the CCX43321 have? Each end of the Dometic CCX43321 terminates in a 1/4-28 threaded terminal paired with a clamp-type fitting.

How much travel does this control cable provide? The CCX43321 provides 3 inches of nominal travel.

What is the minimum bend radius for the CCX43321? 5 inches is the minimum bend radius, giving some routing flexibility through engine bays without kinking the cable core.

How much does the CCX43321 control cable weigh? This cable weighs 3.85 pounds.

Does the CCX43321 meet marine industry standards? Yes, Dometic states the CCX43321 meets or exceeds all applicable industry standards for control cables.

Is the CCX43321 a universal control cable? The CCX43321 is a 4300CC-type cable built to a specific terminal and travel configuration; it is not the same as the 6400 series universal-type cables, so confirm your control head uses the 4300CC cable type before ordering.

What connection type is used at the ends of the CCX43321? A clamp-type fitting is used at each end of the cable, in combination with the 1/4-28 threaded terminal.

What is included when I order the CCX43321? The CCX43321 ships as a complete 21-foot control cable assembly with the threaded terminal and clamp-type fitting already installed at each end.
