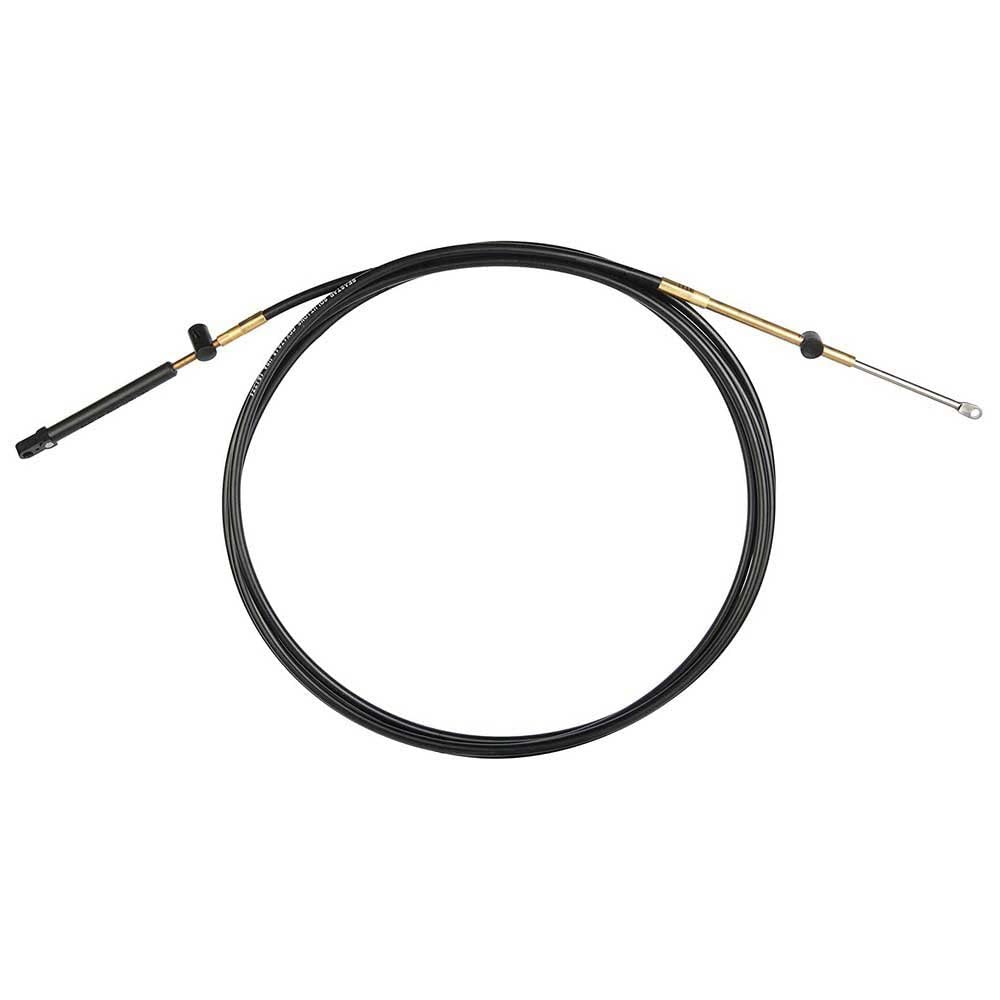

SeaStar Xtreme Control Cable CCX17922, 22 Foot, for Mercury/Mariner/MerCruiser (1965-Date) with Mercury Controls

The SeaStar Xtreme Control Cable CCX17922 is a 22 foot, direct drop-in replacement control cable engineered for outboard and sterndrive engines that use the Mercury 600A style control cable connection. Built with SeaStar's patented XTREME splined core, the cable uses ridges on the core to keep a close fit with the cable's inner liner, giving smoother, more precise throttle and shift movement with minimal lost motion. Its 4-inch minimum bend radius (versus 8-inch on standard cables) makes it a better fit for tight engine compartments, performance and bass boats, or long and complex cable runs. The cable is wrapped in a 0.34-inch super tough HDPE jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline and oil, and it uses 0.033-inch oil tempered lay wires for strength. Stainless steel terminals and brass fittings add corrosion protection, and the HDPE liner is lubricated for life at the factory for a smooth, long-lasting feel. It uses the existing connection components on compatible control heads, so no adapters are needed. It fits Mercury, Mariner and MerCruiser engines (1965-date) and Force engines (1993-date) with Mercury controls, and works with SeaStar Osprey and SL-3 Series control heads on Mercury, MerCruiser, Mariner and most Force engines. The cable is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX17922
• Cable Length: 22 feet
• Weight: 2.96 pounds
• Minimum Bend Radius: 4 inches (versus 8 inches for standard cables)
• Jacket: 0.34-inch super tough HDPE jacket
• Core Wires: 0.033-inch oil tempered lay wires
• Core Design: XTREME splined, coated core element
• Terminals: Stainless steel terminals with brass fittings
• Liner: HDPE liner, lubricated for life
• Connection Type: 10-32 threaded ends (existing OEM-style connection components)
• Country of Origin: Made in the U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• Mercury, Mariner and MerCruiser engines (1965-date) with Mercury controls
• Force engines (1993-date) with Mercury controls
• All Mariner engines with Mercury/Mariner controls, except pre-1993, 40 HP and lower models
• All 1993-date Force (US Marine) engines with Force/US Marine/Mercury controls
• SeaStar Osprey and SL-3 Series control heads to Mercury, MerCruiser, Mariner and most Force engines

Frequently Asked Questions

What length is the SeaStar CCX17922 control cable? The CCX17922 is a 22 foot control cable, sized for longer or more complex cable runs on compatible Mercury, Mariner, MerCruiser and Force engines.

Which engines and controls does the CCX17922 fit? It fits Mercury, Mariner and MerCruiser engines from 1965-date and Force engines from 1993-date, all with Mercury controls, and it also works with SeaStar Osprey and SL-3 Series control heads on Mercury, MerCruiser, Mariner and most Force engines.

Will this cable fit a pre-1993 Mariner outboard under 40 HP? No. The CCX17922 is designed for Mariner engines with Mercury/Mariner controls except pre-1993 models of 40 HP and lower, which use a different control cable.

How is the XTREME cable different from a standard control cable? A 4-inch minimum bend radius on the CCX17922 versus an 8-inch minimum bend radius on standard cables is the key difference, making it better suited to tight or complex cable routing while still using the same OEM-style connection components.

What is the cable jacket made of? A 0.34-inch super tough HDPE jacket covers the CCX17922, resisting abrasion and standing up to UV exposure, salt water, chemicals, gasoline and oil.

Is the CCX17922 a direct drop-in replacement? Yes, it is engineered as a replacement for the Mercury 600A style control cable and uses the existing connection components, so no adapters are required for compatible applications.

How much does the CCX17922 control cable weigh? This 22 foot control cable weighs 2.96 pounds.

Does the cable come pre-lubricated? Yes, the CCX17922 is lubricated for life at the factory, and its HDPE liner stays smooth throughout the life of the cable.

What are the core wires made of? 0.033-inch oil tempered lay wires run through the CCX17922's splined core for added strength and consistent performance.

What connection type does this cable use? The CCX17922 works with controls that accept 10-32 threaded ends, using the existing connection components on the control head and engine.

Where is the CCX17922 control cable made? It is made in the U.S.A.

What warranty comes with the CCX17922? A two-year recreational user warranty against manufacturing defects covers the CCX17922 control cable.
