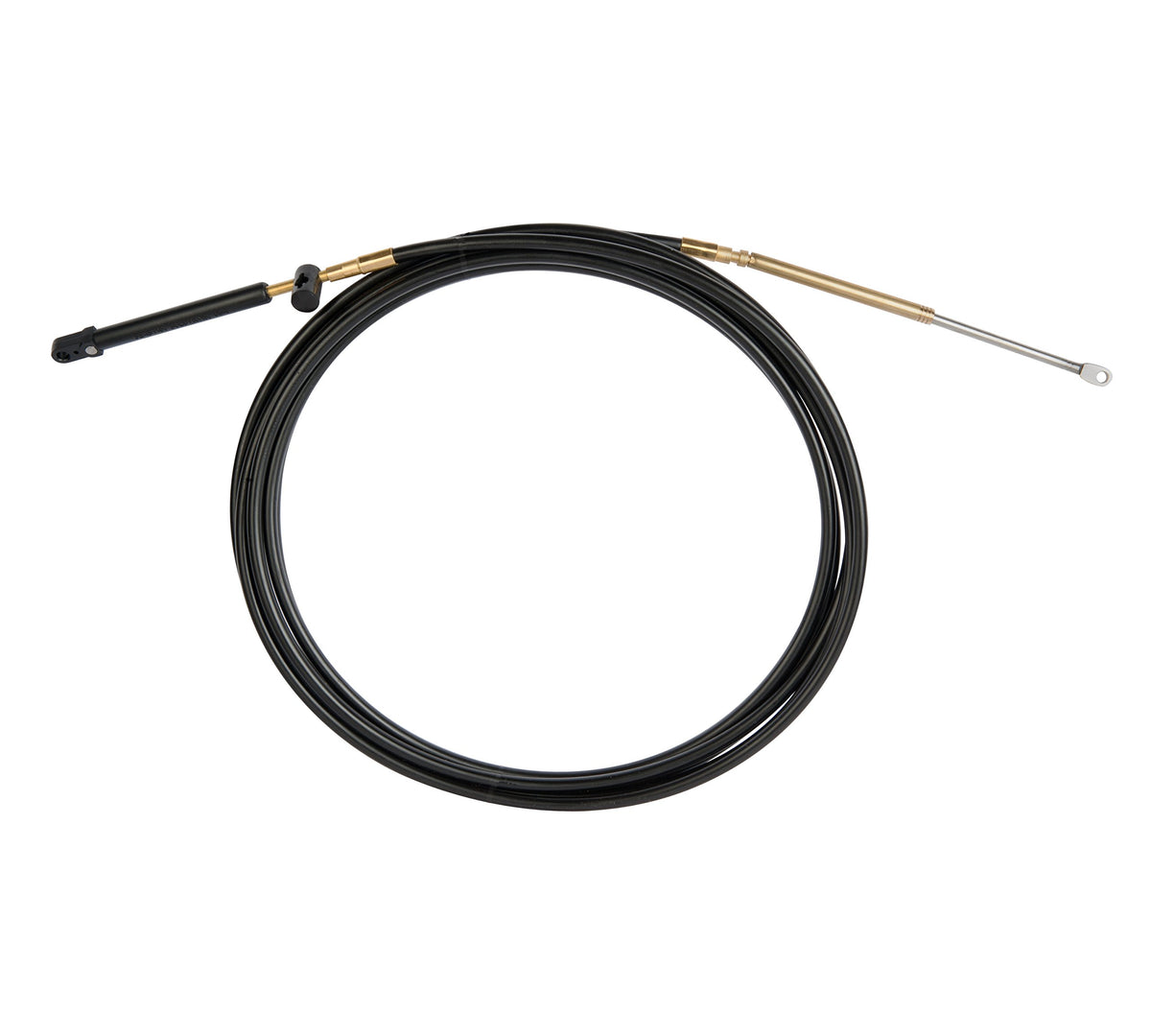

SeaStar Xtreme Control Cable CCX18906, 6 Feet, Mercury 4000 Series Controls

The SeaStar CCX18906 is a 6 foot Xtreme control cable engineered as a direct drop-in replacement for Mariner, Mercury, and MerCruiser engines and other engines using Mercury 2003-date 4000 Series Controls. It uses the existing connection components on the control head, so no modification is needed at installation. The cable's patented Xtreme splined core provides ridges that create a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. This construction gives the cable a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to foot throttle applications on performance and bass boats, and to complex or long cable runs where a tighter turn is required.

Weather and chemical resistance comes from a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil. Inside, 0.033 inch oil tempered lay wires provide strength, while stainless steel terminals and brass fittings guard against corrosion. The core is lubricated for life at the factory and sealed against moisture. The CCX18906 is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18906
• Length: 6 feet
• Cable Type: Xtreme Gen II control cable (premium)
• Minimum Bend Radius: 4 inches
• Jacket: 0.34 inch super tough HDPE jacket
• Core Wire Diameter: 0.033 inch oil tempered lay wires
• Terminals: Stainless steel terminals with brass fittings
• Connector Gender: Male-to-Male
• Number of Pins: 2
• Maximum Voltage: 12 Volts DC
• Weight: 1.4 pounds
• Country of Origin: Made in the U.S.A.
• UPC: 808282272524

Fitment

• Mariner, Mercury, MerCruiser, and other engines using Mercury 2003-date 4000 Series Controls

Replaces (OEM)

• No verified OEM cross-reference numbers listed for this part

Frequently Asked Questions

What engines does the SeaStar CCX18906 control cable fit? The CCX18906 is designed for Mariner, Mercury, and MerCruiser engines, and other engines using Mercury 2003-date 4000 Series Controls.

How long is the CCX18906 control cable? The CCX18906 is 6 feet long, so measure your existing cable run before ordering to confirm this length matches your application.

What is the minimum bend radius of this cable? 4 inches, versus an 8 inch minimum bend radius for standard control cables, which makes the CCX18906 better suited to tight or complex cable routing.

Is the CCX18906 a direct OEM replacement? Yes, this Xtreme control cable is designed as a drop-in replacement that uses the existing connection components on Mercury 4000 Series Control heads, with no modification needed.

What is the outer jacket made of? A 0.34 inch super tough HDPE jacket covers the CCX18906, resisting abrasion, UV exposure, salt water, chemicals, gasoline, and oil.

Does the cable come pre-lubricated? Yes, the core of the CCX18906 is lubricated for life at the factory, so no additional lubrication is required at installation.

What connector configuration does this cable use? The CCX18906 has a male-to-male connector with 2 pins, rated for a maximum of 12 Volts DC.

How much does the CCX18906 weigh? The CCX18906 control cable weighs 1.4 pounds.

Is this cable good for foot throttle applications? Yes, the tighter 4 inch bend radius of the CCX18906 makes it ideal for foot throttle setups on performance and bass boats, as well as long or complex cable runs.

What warranty covers the CCX18906? SeaStar backs the CCX18906 control cable with a two-year recreational user warranty against manufacturing defects.

Where is the CCX18906 manufactured? The CCX18906 control cable is made in the U.S.A.
