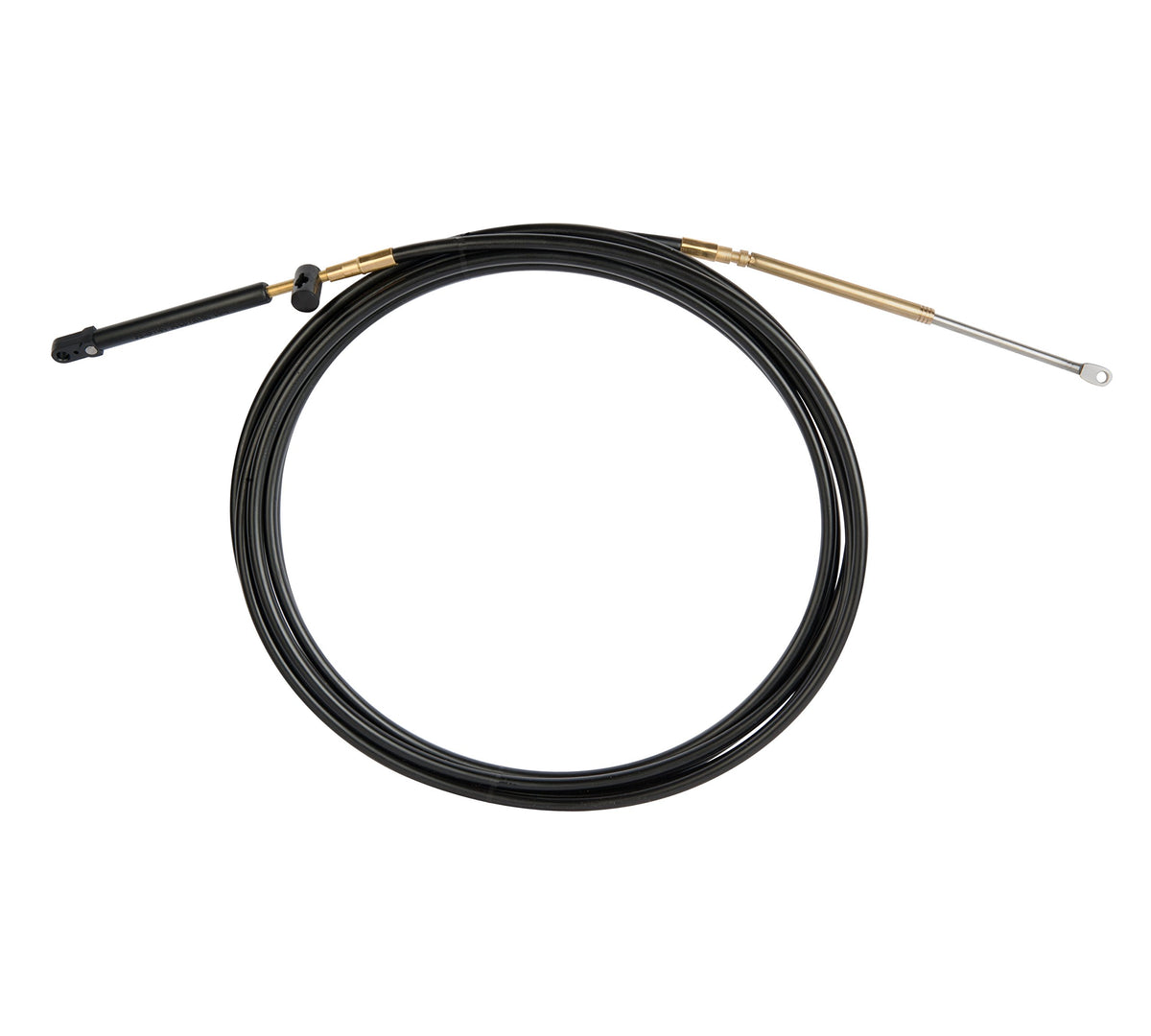

SeaStar CCX18910 XTREME Control Cable, 10 Feet, Mercury 4000 Series Controls 2003-Date

The SeaStar CCX18910 is a 10-foot XTREME technology control cable engineered as a drop-in replacement for original equipment cables on Mariner, Mercury, and MerCruiser engines (and other engines) using Mercury 2003-date 4000 Series Controls. It uses the existing OEM connection components, so no modification to the control head or engine end is required.

The cable's patented XTREME splined, coated core element allows the inner liner to move with minimal lost motion, giving a noticeably smoother, more precise feel at the helm or foot throttle compared to standard cables. Its XTREME construction also gives it a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard cables, making it well suited to complex or long cable runs and tight engine compartments, and a common choice for foot throttle setups on performance and bass boats.

Build quality includes a 0.34 inch super tough HDPE jacket that resists abrasion, UV, salt water, chemicals, gasoline, and oil; 0.033 inch oil tempered lay wires for strength; stainless steel terminals and brass fittings for corrosion resistance; and stainless or nylon covered core wires with moisture protective seals. The cable is lubricated for life at the factory and made in the U.S.A. It exceeds ABYC safety standards and meets ISO/IMCI/NMMA certification requirements, and is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18910
• Cable Length: 10 feet
• Cable Series: CCX189XX (Mercury Gen II type, premium)
• Compatible Engines/Controls: Mariner/Mercury/MerCruiser and other engines using Mercury 2003-date 4000 Series Controls
• Minimum Bend Radius: 4 inches (versus 8 inches for standard cables)
• Jacket: 0.34 inch super tough HDPE jacket
• Lay Wires: 0.033 inch oil tempered lay wires
• Terminals/Fittings: Stainless steel terminals and brass fittings
• Core Wires: Stainless or nylon covered core wires with moisture protective seals
• Country of Origin: United States
• Certifications: Exceeds ABYC safety standards; meets ISO/IMCI/NMMA certification requirements
• Warranty: Two-year recreational user warranty
• Weight: 1.68 pounds
• UPC: 808282272562

Fitment

• Mariner/Mercury/MerCruiser and other engines using Mercury 2003-date 4000 Series Controls

Frequently Asked Questions

What engines and controls does the SeaStar CCX18910 fit? The CCX18910 fits Mariner, Mercury, and MerCruiser engines, along with other engines, that use Mercury 2003-date 4000 Series Controls.

How long is the CCX18910 control cable? This cable measures 10 feet, so it is important to verify this is the correct length for your application before ordering, since control cables are not adjustable in length.

Is the CCX18910 a direct OEM replacement? Yes, the CCX18910 is designed as a drop-in replacement for the original equipment cable and uses the existing OEM connection components, so no modification is needed at installation.

What makes XTREME technology different from a standard control cable? XTREME cables like the CCX18910 use a patented splined, coated core element that reduces lost motion and gives a smoother feel, and they have a 4 inch minimum bend radius compared to 8 inches on standard cables.

Can the CCX18910 be used for a foot throttle setup? Yes, the CCX18910's XTREME construction and tight bend radius make it well suited to foot throttle applications on performance and bass boats, as well as complex or long cable runs.

What is the outer jacket made of? The CCX18910 has a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

What hardware is used at the cable ends? The CCX18910 uses stainless steel terminals and brass fittings for corrosion resistance.

Does the CCX18910 come pre-lubricated? Yes, this cable is lubricated for life at the factory and features a long-wearing, ultra smooth HDPE liner.

What certifications does the CCX18910 meet? The CCX18910 exceeds ABYC safety standards and meets ISO/IMCI/NMMA certification requirements.

Is the CCX18910 covered by a warranty? Yes, the CCX18910 is backed by a two-year recreational user warranty against manufacturing defects.

How much does the CCX18910 weigh? The CCX18910 control cable weighs 1.68 pounds.

Where is the CCX18910 manufactured? The CCX18910 is made in the U.S.A.
