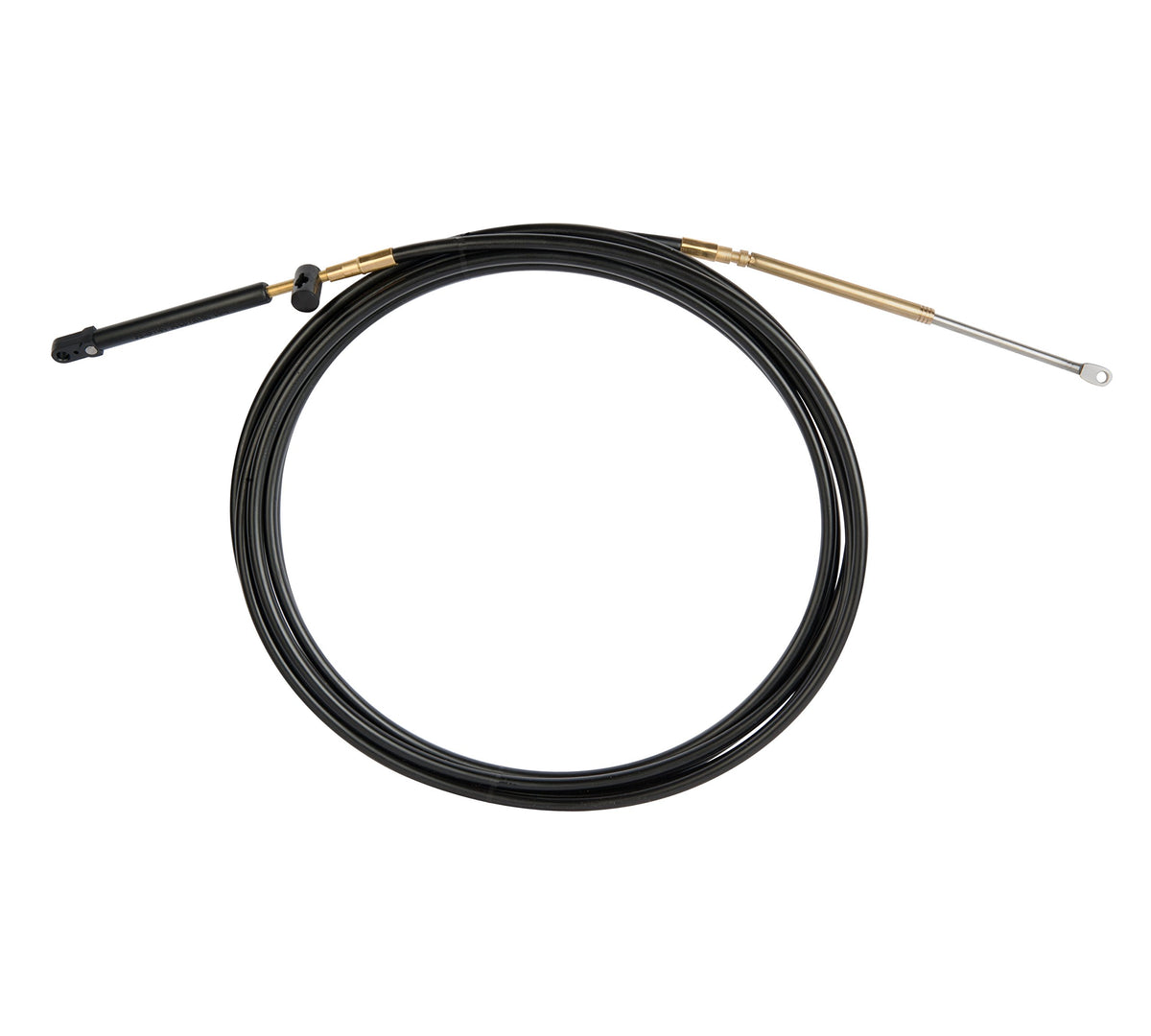

SeaStar CCX18911 XTREME Control Cable, 11 Feet, Mercury Gen II 4000 Series Controls

The SeaStar CCX18911 is an 11-foot XTREME control cable engineered as a drop-in replacement for Mariner, Mercury, and MerCruiser engines (and other engines) using Mercury 2003-date 4000 series controls. It uses the existing connection components at the control head, so installation follows the same hookup as the original cable it replaces. The cable is built with SeaStar's patented XTREME splined, coated core, which uses ridges on the core to keep a close fit with the cable's inner liner for smooth movement with minimal lost motion. A 0.34 inch super tough HDPE jacket resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, while 0.033 inch oil tempered lay wires add strength. Stainless steel terminals and brass fittings provide added corrosion protection, and the cable is lubricated for life at the factory.

The XTREME design gives this cable a 4 inch minimum bend radius, versus an 8 inch minimum bend radius for standard control cables, making it well suited to foot throttle applications on performance and bass boats and to complex or long cable runs. It is made in the U.S.A. And is intended for Mariner, Mercury, and MerCruiser (and other engines using Mercury) 2003-date 4000 series controls.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18911
• Product Type: XTREME control cable (Mercury Gen II type, premium)
• Length: 11 feet
• Bend Radius: 4 inch minimum (versus 8 inch minimum for standard cables)
• Outer Jacket: 0.34 inch High-Density Polyethylene (HDPE)
• Lay Wires: 0.033 inch oil tempered
• Terminals: Stainless steel
• Fittings: Brass
• Core: XTREME splined, coated core
• Compatible Controls: Mercury 2003-date 4000 series controls
• Compatible Engines: Mariner, Mercury, MerCruiser and other engines using Mercury 4000 series controls
• Weight: 1.79 pounds
• Color: Black
• Country of Origin: Made in USA
• UPC: 808282272579

Fitment

• Mariner, Mercury, MerCruiser and other engines using Mercury 2003-date 4000 series controls

Replaces (OEM)

• Designed as a direct drop-in replacement using the existing connection components on applicable control heads; no specific OEM cross-reference numbers are listed for this part.

Frequently Asked Questions

What engines does the SeaStar CCX18911 control cable fit? CCX18911 is built for Mariner, Mercury, and MerCruiser engines, and other engines, that use Mercury 2003-date 4000 series controls.

How long is this control cable? The CCX18911 measures 11 feet in length.

What is the bend radius of this cable? The XTREME construction of the CCX18911 gives it a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which helps it route through tighter spaces.

What is the outer jacket made of? CCX18911 uses a 0.34 inch super tough High-Density Polyethylene (HDPE) jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

Is this a genuine SeaStar part or an aftermarket copy? The CCX18911 is a genuine SeaStar XTREME control cable, made in the U.S.A.

Can I install this cable myself? Yes. The CCX18911 is engineered as a drop-in replacement that uses the existing connection components at your control head, so it installs using the same hookup as the cable it replaces.

What makes the XTREME cable different from a standard control cable? Compared to a standard cable, the XTREME construction used in CCX18911 has a tighter 4 inch minimum bend radius versus 8 inches, along with a splined, coated core for smoother movement with minimal lost motion.

Is this cable suitable for foot throttle setups on performance or bass boats? Yes, the CCX18911 is designed for foot throttle applications on performance and bass boats, as well as for complex or long cable runs.

Does the cable come pre-lubricated? Yes, the CCX18911 is lubricated at the factory for life, so no additional lubrication is needed at installation.

What color is the CCX18911 cable? The CCX18911 control cable is black.

How much does this cable weigh? The CCX18911 weighs 1.79 pounds.

What terminals and fittings does this cable use? CCX18911 has stainless steel terminals and brass fittings for added corrosion protection.
