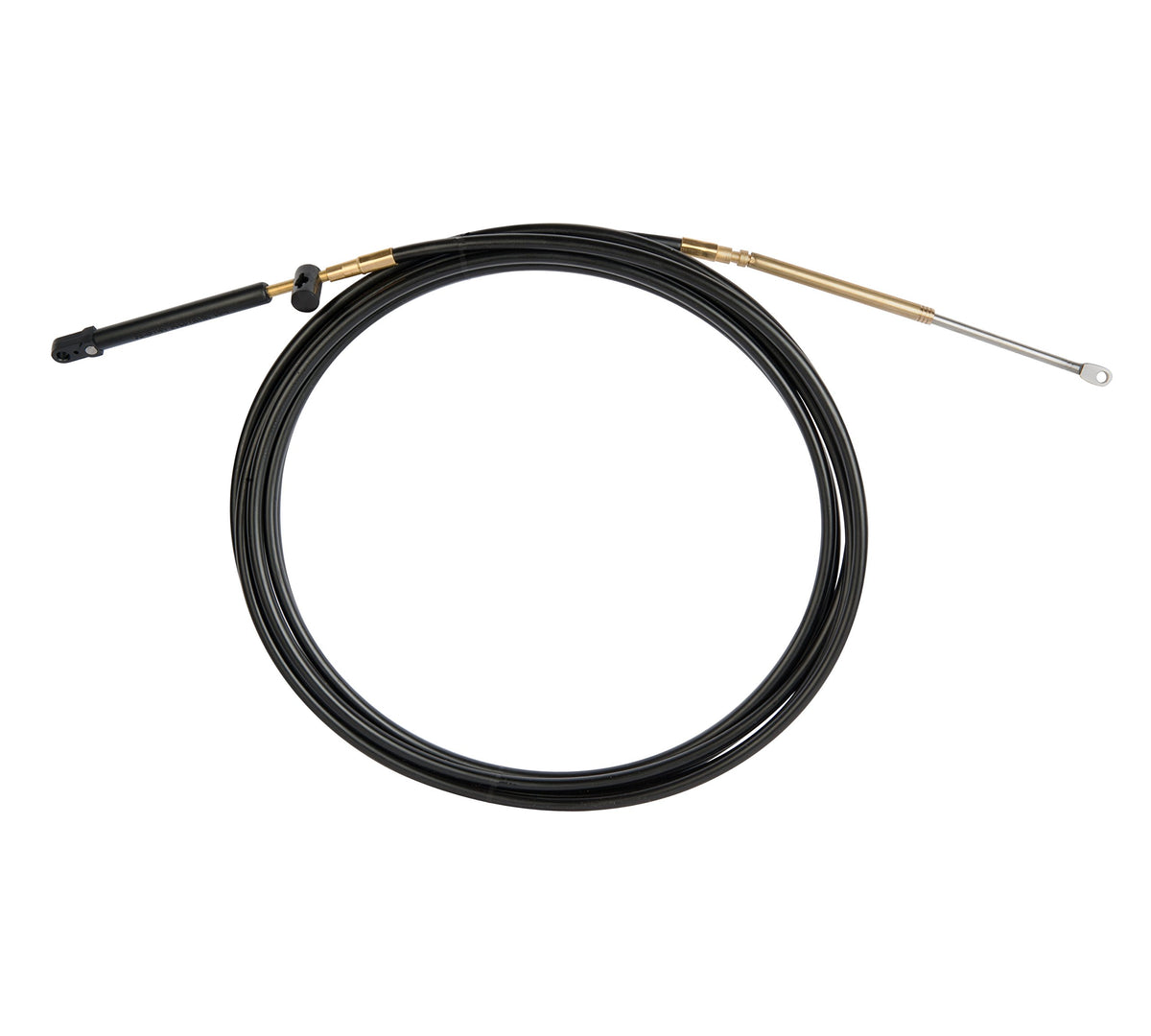

SeaStar CCX18919 Xtreme Gen II Control Cable, 19 Feet, for Mercury 4000 Series Controls (2003-Date)

The SeaStar CCX18919 is a 19-foot Xtreme Gen II control cable engineered as a direct OEM-type replacement for Mariner, Mercury, and MerCruiser engines (and other engines) using Mercury 2003-date 4000 series controls. It uses the existing connection components on the control head, so it is a drop-in replacement rather than requiring modification of the mounting hardware.

Xtreme control cables feature a patented splined core: ridges on the core create a close fit with the cable's inner HDPE liner, giving smooth, low-friction movement with minimal lost motion at the helm. Because of this construction, the CCX18919 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs, tight engine rooms, and foot-throttle setups on performance and bass boats.

The cable is built with a 0.34 inch thick, super tough HDPE outer jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil. Internally, 0.033 inch oil tempered lay wires provide strength, and stainless steel terminals with brass fittings add corrosion protection. The cable is lubricated for life at the factory and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18919
• Product Line: Xtreme Gen II (premium)
• Cable Length: 19 feet
• Minimum Bend Radius: 4 inches (versus 8 inches for standard control cables)
• Outer Jacket: 0.34 inch super tough HDPE, resists abrasion, UV, salt water, chemicals, gasoline and oil
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals/Fittings: Stainless steel terminals and brass fittings
• Core Technology: Splined, coated core element
• Color: Black
• Weight: 2.74 pounds
• Country of Origin: Made in the U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects
• UPC: 808282272654

Fitment

• Mariner, Mercury, MerCruiser, and other engines using Mercury 2003-date 4000 series controls

Frequently Asked Questions

What is the SeaStar CCX18919 control cable used for? The CCX18919 is a 19-foot throttle/shift control cable that connects an engine control head to Mariner, Mercury, or MerCruiser engines (and other engines) using Mercury 2003-date 4000 series controls.

Will this cable fit my existing Mercury control head without modification? Yes, the CCX18919 is designed as a drop-in OEM-type replacement that uses the existing connection components on Mercury 2003-date 4000 series control heads, so no modification is needed.

How long is the CCX18919 cable? The CCX18919 measures 19 feet, matching the length designation built into its part number.

What makes the Xtreme Gen II cable different from a standard control cable? The Xtreme Gen II cable, including the CCX18919, has a patented splined core and a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which makes it better suited to tight or complex cable routing.

What is the outer jacket made of? The CCX18919 uses a 0.34 inch thick, super tough HDPE (high-density polyethylene) outer jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Is the CCX18919 pre-lubricated? Yes, the cable is lubricated for life at the factory, so no additional lubrication is required at installation.

How much does the CCX18919 weigh? The CCX18919 control cable weighs 2.74 pounds.

Is this cable suitable for foot-throttle applications on a performance or bass boat? Yes, the tighter 4 inch bend radius of the CCX18919 makes it well suited for foot-throttle setups on performance and bass boats, as well as for long or complex cable runs.

Where is the CCX18919 manufactured? The CCX18919 Xtreme Gen II control cable is made in the U.S.A.

What is the terminal and fitting construction on this cable? The CCX18919 uses stainless steel terminals and brass fittings, which are included to add corrosion protection at the connection points.

Does the CCX18919 come with a warranty? The CCX18919 is backed by a two-year recreational user warranty covering manufacturing defects.

What engines and controls does the CCX18919 fit? The CCX18919 fits Mariner, Mercury, and MerCruiser engines, and other engines, that use Mercury 2003-date 4000 series controls.
