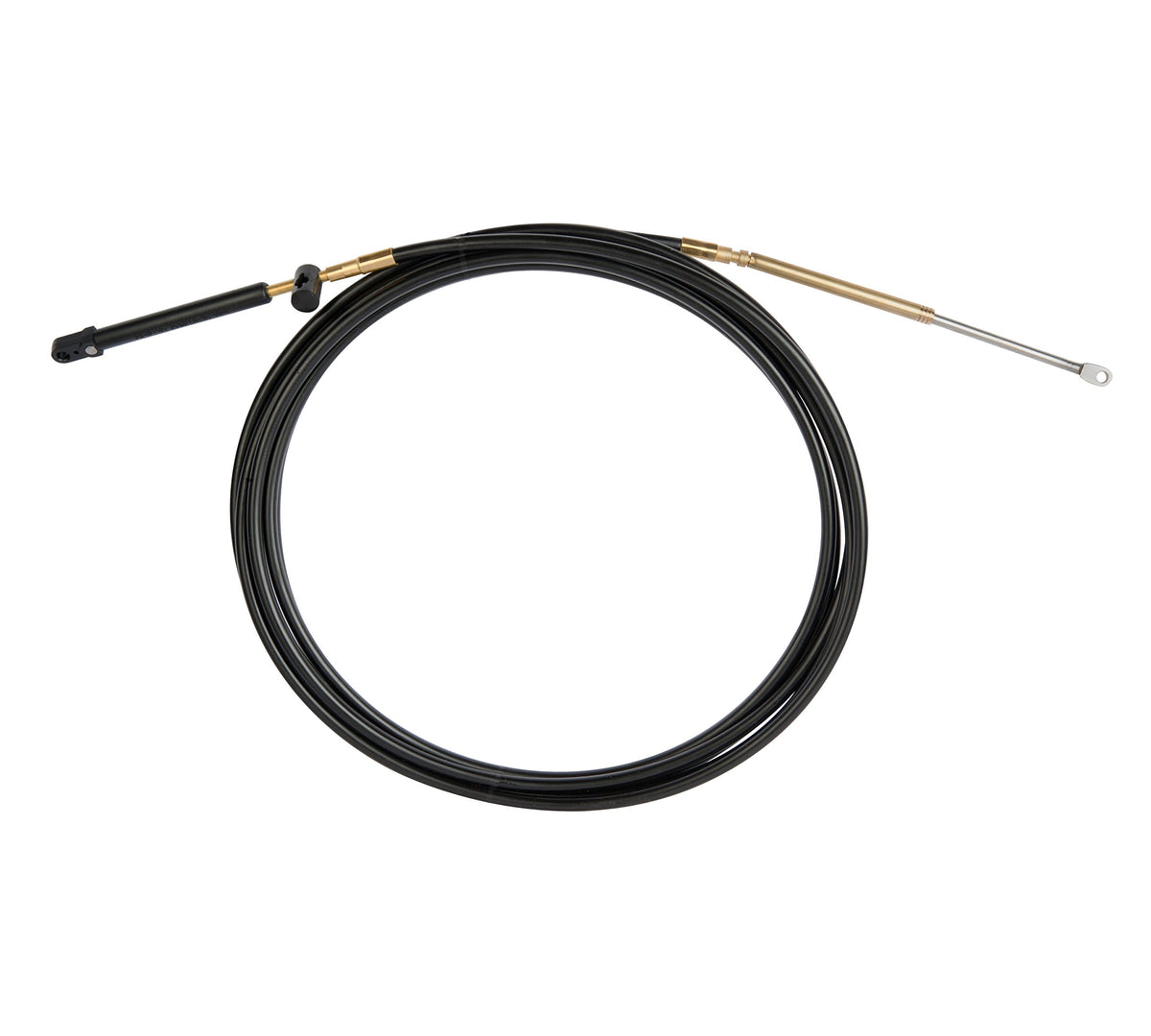

SeaStar CCX18923 Xtreme Control Cable, 23 Feet, for Mercury 4000 Series Controls (2003-Date)

The SeaStar CCX18923 is a Gen II premium-type Xtreme control cable built as a drop-in replacement for Mariner, Mercury, and MerCruiser engines (and other engines using Mercury 2003-date 4000 Series Controls). It uses the existing connection components at the control head, so installation follows the same hookup as the original equipment cable it replaces.

Xtreme Technology gives this cable a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs and to foot-throttle setups on performance and bass boats where routing space is tight. Inside, a patented splined, coated core element rides in a long-wearing HDPE liner that is lubricated for life, allowing smooth, low-friction movement with minimal lost motion at the helm. The core itself uses 0.033 inch oil-tempered lay wires for strength, wrapped in a 0.34 inch super-tough HDPE outer jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil.

Stainless steel terminals and brass fittings add corrosion resistance at the connection points, and the cable is manufactured in the U.S.A. To exceed engine manufacturer specifications, ABYC safety standards, and ISO/IMCI/NMMA certification requirements. Before ordering, confirm this 23 foot length is correct for your control run.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18923
• Cable Length: 23 feet
• Cable Series: Gen II premium type Xtreme Control Cable
• Compatible Controls: Mercury 2003-date 4000 Series Controls
• Compatible Engines: Mariner, Mercury, MerCruiser, and other engines using Mercury 4000 Series Controls
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34 inch HDPE, abrasion, UV, salt water, chemical, gasoline, and oil resistant
• Core Wire: 0.033 inch oil-tempered lay wires
• Core Technology: Splined, coated core element
• Terminals/Fittings: Stainless steel terminals with brass fittings
• Color: Black
• Weight: 3.11 pounds
• Country of Origin: Made in the U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• Mariner, Mercury, MerCruiser, and other engines using Mercury 2003-date 4000 Series Controls

Frequently Asked Questions

What engines and controls does the CCX18923 fit? It is designed for Mariner, Mercury, and MerCruiser engines, and other engines using Mercury 2003-date 4000 Series Controls, using the existing control head connection components.

How long is the CCX18923 control cable? This cable measures 23 feet. Always verify the correct length for your specific cable run before ordering, since control cables are not interchangeable across lengths.

What is the minimum bend radius on this cable? The CCX18923 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it easier to route through tight or complex cable runs.

Is this an OEM cable or an aftermarket replacement? The CCX18923 is a drop-in replacement type cable engineered to replace original equipment cables and uses the existing OEM connection components at the control head.

What material is the outer jacket made of? A 0.34 inch super-tough HDPE jacket covers the CCX18923, resisting abrasion and withstanding UV, salt water, chemicals, gasoline, and oil exposure.

What is the core of the cable made from? The core uses 0.033 inch oil-tempered lay wires with a splined, coated core element that rides in a lubricated-for-life HDPE liner for smooth, low-friction movement.

How much does the CCX18923 weigh? This control cable weighs 3.11 pounds.

Does the cable come pre-lubricated? Yes, the CCX18923 is lifetime lubricated at the factory, with a long-wearing HDPE liner that stays smooth without additional maintenance.

Is this cable good for foot throttle or performance boat applications? Yes, the tight 4 inch bend radius on the CCX18923 makes it well suited to foot throttle setups on performance and bass boats, as well as complex or long cable runs.

What connectors or fittings does this cable use? The CCX18923 has stainless steel terminals and brass fittings for added corrosion protection at the connection points.

Where is the CCX18923 manufactured? This control cable is made in the U.S.A.

What warranty comes with this control cable? The CCX18923 is backed by a two-year recreational user warranty against manufacturing defects.
