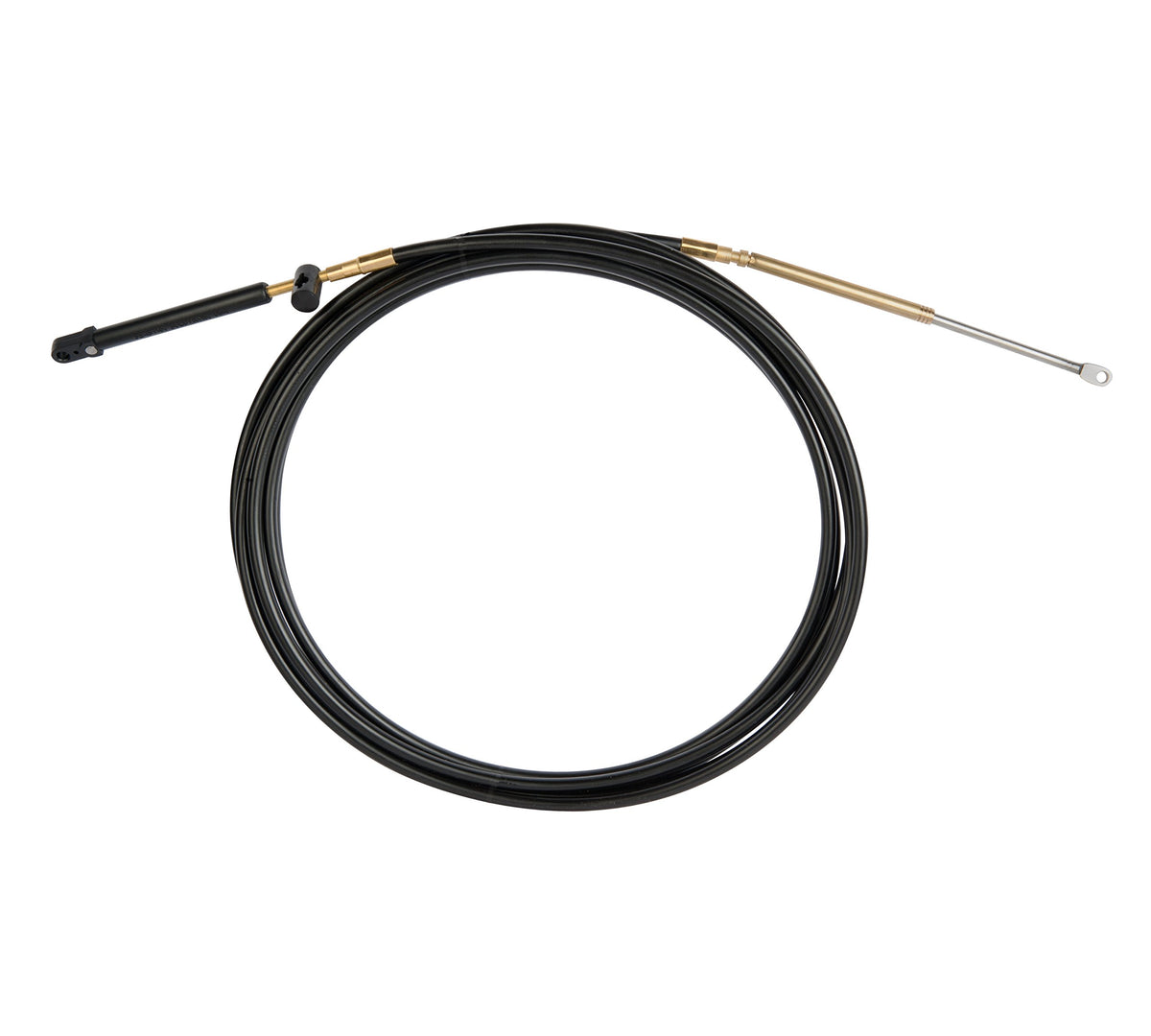

SeaStar CCX18925 Mercury Gen II Xtreme Control Cable, 25 Feet, for Mariner/Mercury/MerCruiser 4000 Series Controls (2003-date)

The SeaStar CCX18925 is a Mercury Gen II type premium Xtreme control cable built for Mariner, Mercury, and MerCruiser engines using Mercury 2003-date 4000 Series Controls. This is a drop-in replacement type cable engineered to work with the existing OEM connection components on these control heads, so no adapter parts are needed at the engine or helm end.

The cable uses SeaStar's Xtreme Technology with a patented splined core: ridges on the core give a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. The Xtreme design also delivers a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, which makes it a strong fit for foot throttle setups on performance and bass boats, and for runs that are long, tightly routed, or need a more precise feel at the helm.

Construction includes a 0.34 inch super tough HDPE jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, plus 0.033 inch oil tempered lay wires for strength. Stainless steel terminals and brass fittings add corrosion protection, and the cable is lubricated for life at the factory. It is made in the U.S.A. And is intended for Mariner/Mercury/MerCruiser and other engines that use Mercury 2003-date 4000 Series Controls.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18925
• Category: Mercury Gen II type (premium) control cable
• Cable Length: 25 feet
• Compatible Devices: Mariner, Mercury, MerCruiser Engines (Mercury 2003-date 4000 Series Controls)
• Connector Type: Specialized Marine Engine Control Connectors
• Connector Gender: Male-to-Male
• Number of Pins: 2
• Maximum Voltage: 12 Volts (DC)
• Bend Radius: 4 inch minimum (versus 8 inch minimum for standard cables)
• Jacket: 0.34 inch Super Tough HDPE Jacket
• Core Wires: 0.033 inch Oil Tempered Lay Wires
• Terminals/Fittings: Stainless Steel Terminals and Brass Fittings
• Item Shape: Round
• Usage: Indoor, Outdoor
• Special Feature: Tangle Free
• Country of Origin: Made in the U.S.A.
• UPC: 808282272715
• Weight: 3.55 pounds

Fitment

• Mariner/Mercury/MerCruiser and other engines using Mercury 2003-date 4000 Series Controls

Frequently Asked Questions

What engines does the SeaStar CCX18925 control cable fit? The CCX18925 is designed for Mariner, Mercury, and MerCruiser and other engines that use Mercury 2003-date 4000 Series Controls.

How long is this control cable? The CCX18925 is a 25 foot control cable.

Is this a direct OEM replacement or will I need extra adapter parts? The CCX18925 is a drop-in replacement type cable engineered to use the existing OEM connection components at the control head and engine, so no separate adapter parts are needed.

What makes the Xtreme version different from a standard control cable? The Xtreme construction in the CCX18925 gives a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which allows tighter, more complex cable routing.

What is the outer jacket made of? The CCX18925 has a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

What are the core wires made of? Inside the CCX18925 are 0.033 inch oil tempered lay wires, chosen for strength and consistent performance.

What connector type and pin configuration does this cable use? The CCX18925 uses a specialized marine engine control connector with a male-to-male gender and 2 pins.

Does this cable come pre-lubricated? Yes, the CCX18925 is lubricated for life at the factory, so no additional lubrication is needed at installation.

Is the CCX18925 good for foot throttle applications on a bass boat? Yes, its tight 4 inch minimum bend radius makes the CCX18925 well suited to foot throttle applications on performance and bass boats and to long or complex cable runs.

Where is this control cable manufactured? The CCX18925 is made in the U.S.A.

What is the maximum voltage rating of this cable? The CCX18925 is rated for a maximum of 12 Volts (DC).

How much does the CCX18925 weigh? The CCX18925 control cable weighs 3.55 pounds.
