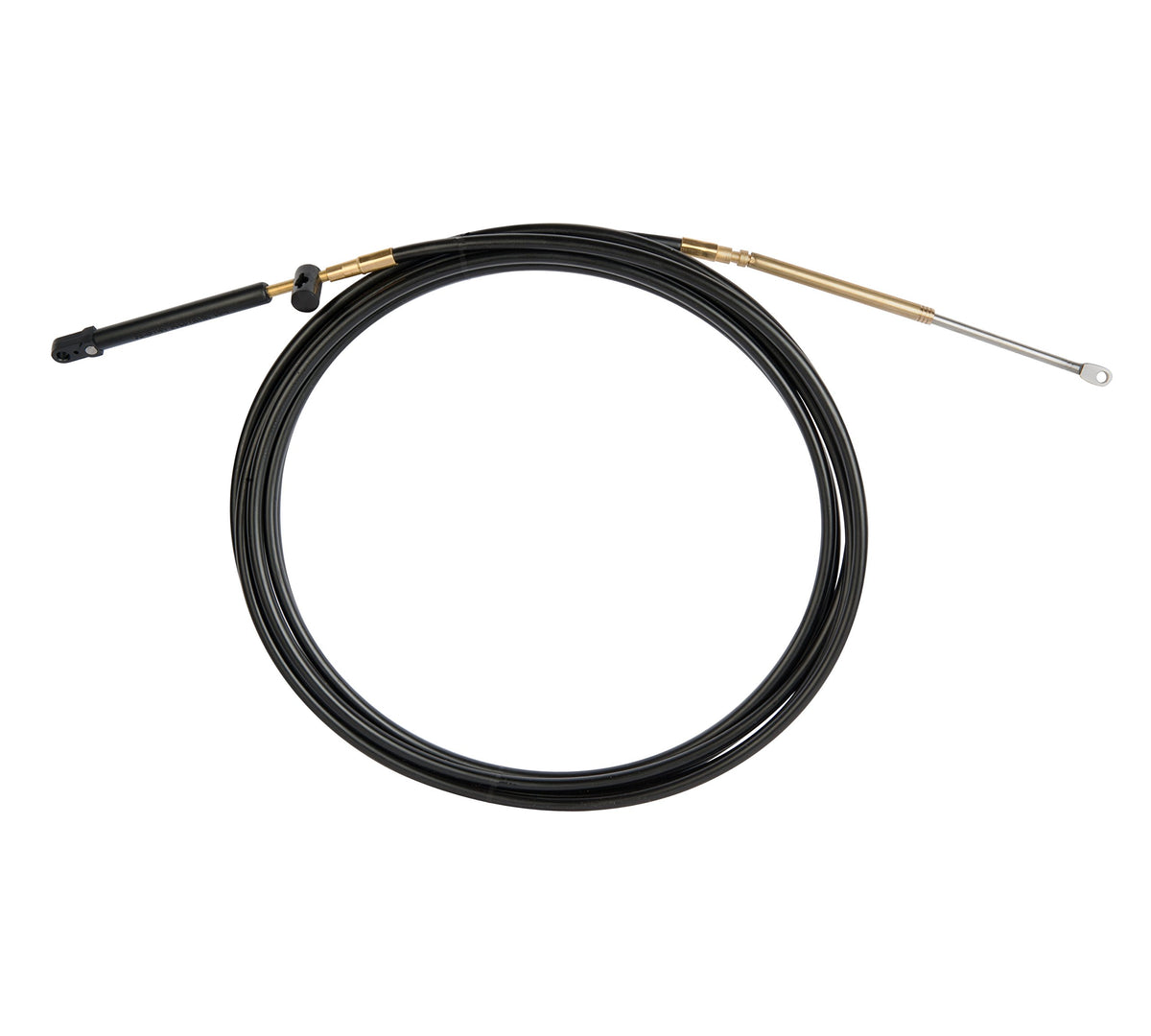

SeaStar CCX18927 Xtreme Control Cable, 27 Feet, for Mercury 4000 Series Controls (2003-Date)

The SeaStar CCX18927 is a 27-foot Xtreme control cable engineered as a direct drop-in replacement for the original equipment cable on your engine's control head, using the existing connection components so there is no need to modify hardware at either end. It is built for Mariner, Mercury, and MerCruiser engines and other engines that use Mercury 2003-date 4000 Series Controls, and it is a common choice for foot throttle applications on performance and bass boats as well as complex or long cable runs where a smoother feel is wanted.

At the core of the cable is SeaStar's patented Xtreme splined core, where ridges on the core create a close fit with the cable's inner liner for easy movement with minimal lost motion. The core wires are 0.033 inch oil tempered lay wires for strength and performance, and the whole assembly is wrapped in a 0.34 inch Super Tough HDPE jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil. Stainless steel terminals and brass fittings add corrosion protection at the connection points, and the cable is lubricated for life at the factory so it will not need to be re-greased. The Xtreme design gives the cable a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, making it easier to route through tight engine compartments. This cable is made in the U.S.A. And is engineered to exceed the engine manufacturer's specifications.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX18927
• Cable Length: 27 feet
• Weight: 3.54 pounds
• Cable Type: Mercury Gen II type (premium)
• Core Technology: Xtreme splined, coated core element
• Minimum Bend Radius: 4 inches (versus 8 inches for standard cables)
• Jacket: 0.34 inch Super Tough HDPE, abrasion, UV, salt water, chemical, gasoline, and oil resistant
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals and Fittings: Stainless steel terminals and brass fittings
• Lubrication: Lubricated for life at the factory
• Item Shape: Round
• Special Feature: Tangle free
• Country of Origin: Made in the U.S.A.
• UPC: 808282272739

Fitment

Fits Mariner, Mercury, and MerCruiser engines and other engines using Mercury 2003-date 4000 Series Controls.

Replaces (OEM)

Designed as a drop-in replacement for the original equipment control cable at your engine's control head, using the existing connection components.

Frequently Asked Questions

How long is the SeaStar CCX18927 control cable? The CCX18927 is 27 feet long, part of SeaStar's Xtreme control cable line built for Mercury 4000 Series Controls.

What engines and controls does the CCX18927 fit? It fits Mariner, Mercury, and MerCruiser engines and other engines that use Mercury 2003-date 4000 Series Controls.

Is the CCX18927 an OEM or aftermarket cable? The CCX18927 is a direct drop-in replacement type cable designed to use the existing connection components at your engine's control head, so no OEM cable modification is needed.

What is the minimum bend radius on this cable? The CCX18927 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which makes routing easier in tight engine compartments.

What is the outer jacket made of? A 0.34 inch Super Tough HDPE jacket covers the CCX18927, resisting abrasion, UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX18927 need to be greased before installation? No, the cable is lubricated for life at the factory, so it arrives ready to install without additional lubrication.

What are the terminals and fittings made of? Stainless steel terminals and brass fittings are used on the CCX18927 for added corrosion protection.

Where is the CCX18927 control cable made? The CCX18927 Xtreme control cable is made in the U.S.A.

How much does the CCX18927 weigh? The CCX18927 weighs 3.54 pounds.

What is different about SeaStar's Xtreme core versus a standard control cable? The CCX18927 uses a patented Xtreme splined, coated core element, where ridges on the core create a close fit with the inner liner for smooth movement with minimal lost motion, unlike a standard core design.

Is this cable a good fit for foot throttle setups on performance or bass boats? Yes, the CCX18927's Xtreme design is intended for foot throttle applications on performance and bass boats, as well as complex or long cable runs.

What core wire gauge does the CCX18927 use? The CCX18927 uses 0.033 inch oil tempered lay wires for strength and performance.
