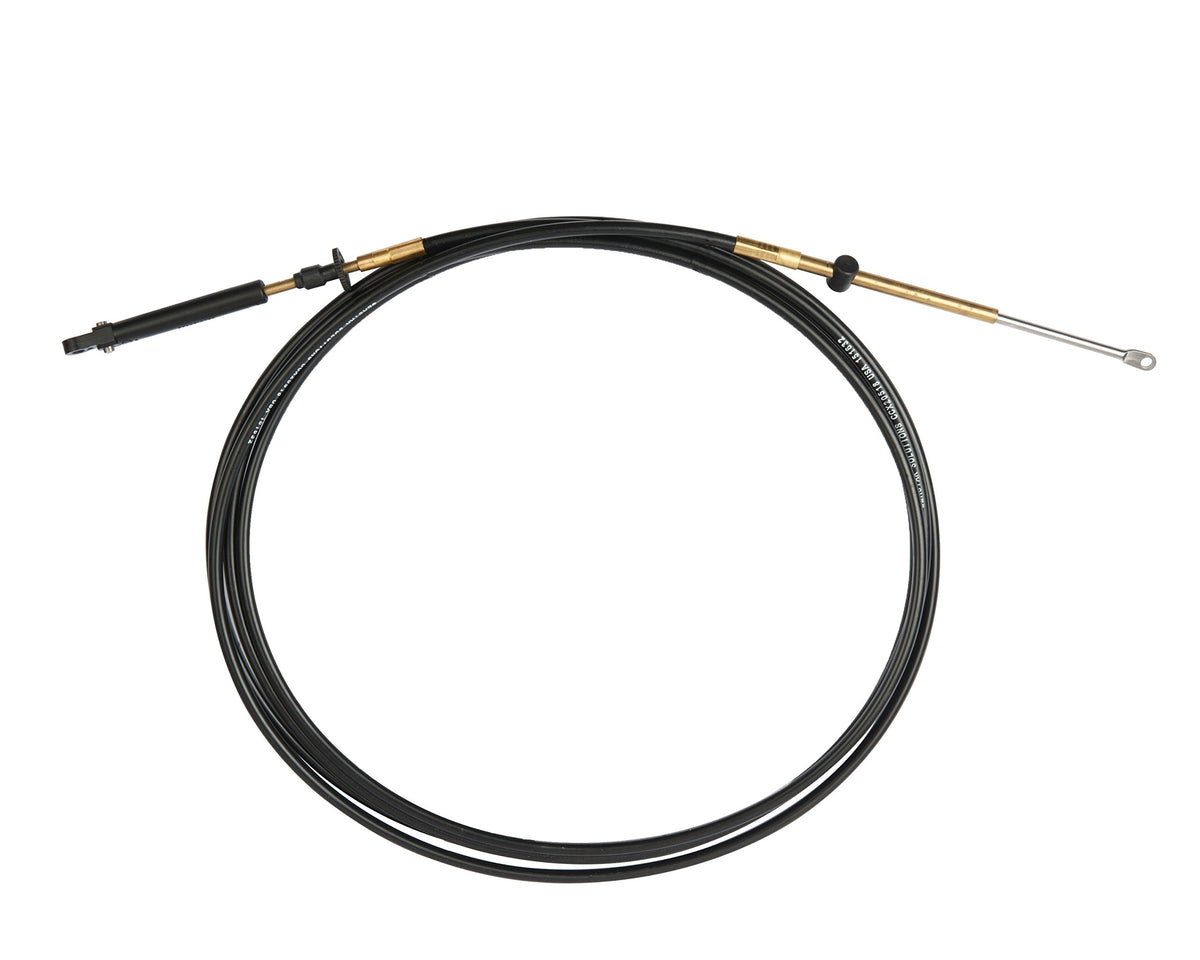

SeaStar CCX20507 Xtreme Control Cable, 7-Feet, Mercury Style Engine End for Mercury 1965-date and Force 1993-date

The SeaStar CCX20507 is a 7-foot Xtreme control cable from the CCX205XX cable line, built with a Mercury style engine end connection for Mercury products (1965-date) and Force products (1993-date). On the control end, it accepts 10-32 threaded ends or works with most aftermarket controls, making it a drop-in option for control heads that use this connection style.

The cable uses SeaStar's Xtreme Technology core, a splined and coated core element designed for maximum smoothness with minimal lost motion. It carries a 0.34 inch Super Tough HDPE jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, and it is built with a 4 inch minimum bend radius, tighter than the 8 inch minimum bend radius of standard control cables. This makes it well suited to complex or long cable runs and to foot throttle setups on performance and bass boats. Stainless steel terminals and brass fittings add corrosion protection at the connection points, and stainless or nylon covered core wires with moisture protective seals extend service life in a marine environment. The cable is lubricated for life at the factory and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20507
• Cable Series: CCX205XX
• Length: 7 feet
• Weight: 1.38 pounds
• Item Dimensions: 17 x 1.5 x 17 inches
• Control End Connection: Accepts 10-32 threaded ends or most aftermarket controls
• Engine End Connection: Mercury style engine end connection
• Jacket: 0.34 inch Super Tough HDPE jacket
• Terminals and Fittings: Stainless steel terminals and brass fittings
• Core Wires: Stainless or nylon covered core wires with moisture protective seals
• Minimum Bend Radius: 4 inches
• Country of Origin: Made in the U.S.A.
• UPC: 808282272937

Fitment

• Mercury products (1965-date), Mercury style engine end connection
• Force products (1993-date), Mercury style engine end connection
• Control end accepts 10-32 threaded ends or most aftermarket controls

Replaces (OEM)

• No specific OEM cross-reference numbers are listed for the CCX20507.

Frequently Asked Questions

What engines does the SeaStar CCX20507 control cable fit? The CCX20507 is built with a Mercury style engine end connection for Mercury products (1965-date) and Force products (1993-date).

What length is the CCX20507 cable? This CCX205XX-series cable is the 7-foot length, listed under part number CCX20507.

What kind of control head does the control end of this cable accept? The control end of the CCX20507 accepts 10-32 threaded ends or works with most aftermarket controls.

How much does the CCX20507 weigh? The SeaStar CCX20507 control cable weighs 1.38 pounds.

What are the outer dimensions of this cable as packaged? The CCX20507 measures 17 x 1.5 x 17 inches.

What is the jacket material on this control cable? The CCX20507 uses a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

Is the CCX20507 suitable for long or complex cable runs? Yes, its 4 inch minimum bend radius (versus an 8 inch minimum on standard cables) makes the CCX20507 well suited to complex or long cable runs, including foot throttle applications.

What are the terminals and fittings made of on this cable? The CCX20507 has stainless steel terminals and brass fittings for corrosion protection.

Does the CCX20507 come pre-lubricated? Yes, the cable is lubricated for life at the factory.

Where is the CCX20507 control cable manufactured? The SeaStar CCX20507 is made in the U.S.A.

What core wire construction does this cable use? The CCX20507 uses stainless or nylon covered core wires with moisture protective seals for corrosion resistance and longer life.

Are there other lengths available in this cable series? The CCX20507 belongs to the CCX205XX cable series, which covers multiple lengths for the same Mercury style engine end connection.
