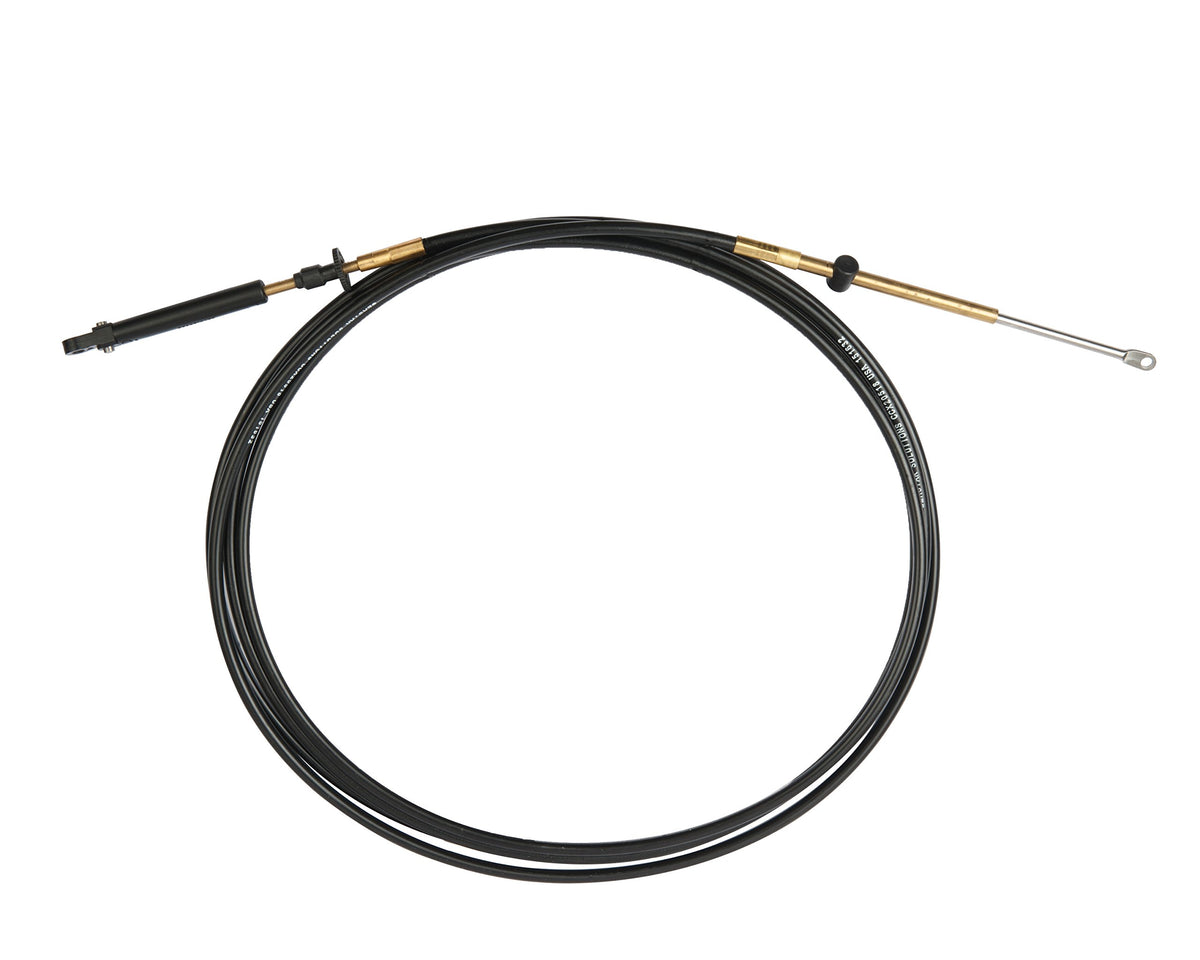

SeaStar CCX20508 Control Cable, 8 Feet, Mercury (1965-date) and Force (1993-date) Engine End

The SeaStar CCX20508 is an 8-foot control cable built for boats running Mercury products (1965-date) or Force products (1993-date), using a Mercury style engine end connection. On the control end, it accepts controls that use 10-32 threaded ends, or works with most aftermarket controls, giving installers flexibility when matching an existing helm or side-mount control head.

This cable uses SeaStar's XTREME Control Cable Technology, built around a splined core that keeps ridges in close contact with the cable's inner liner for smooth movement and minimal lost motion. The core is protected by a 0.34 inch super tough HDPE jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, while 0.033 inch oil tempered lay wires add strength and consistent feel over long cable runs. Stainless steel terminals and brass fittings guard against corrosion at the connection points, and the cable is lubricated for life at the factory so it does not need field greasing.

The XTREME design gives this cable a 4 inch minimum bend radius, half the 8 inch minimum bend radius of a standard control cable, which makes it a good fit for tight, complex, or long cable runs and for foot throttle applications on performance and bass boats. It is a drop-in replacement engineered to use the existing connection components at both the control and engine ends. The cable is black and made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20508
• Cable Length: 8 feet
• Weight: 1.53 pounds
• Color: Black
• Material: Metal
• Package Dimensions: 17.5 x 17.3 x 1.5 inches
• Item Dimensions: 17 x 1.5 x 17 inches
• Minimum Bend Radius: 4 inches
• Cable Jacket Thickness: 0.34 inches
• Lay Wire Diameter: 0.033 inches
• Engine End Connection: Mercury style
• Control End Connection: Accepts 10-32 threaded ends or most aftermarket controls
• Fitment: Mercury products (1965-date); Force products (1993-date)
• Country of Origin: United States
• UPC: 808282272944

Fitment

Fits Mercury products (1965-date) and Force products (1993-date) using controls that accept 10-32 threaded ends, or most aftermarket controls, with a Mercury style engine end connection.

Frequently Asked Questions

What does the CCX20508 fit? The SeaStar CCX20508 control cable fits Mercury products (1965-date) and Force products (1993-date) that use controls accepting 10-32 threaded ends, or most aftermarket controls, with a Mercury style engine end connection.

How long is this control cable? The CCX20508 is 8 feet long, as reflected in the part number and product size.

What is the minimum bend radius of the CCX20508? 4 inches, thanks to SeaStar's XTREME Control Cable Technology, compared to the 8 inch minimum bend radius of a standard control cable.

Is the SeaStar CCX20508 a direct replacement for my factory cable? Yes, it is engineered as a drop-in replacement that uses the existing connection components at the control and engine ends.

What is the control cable made of? The CCX20508 uses stainless steel terminals and brass fittings, oil tempered lay wires, and a super tough HDPE outer jacket over a splined core.

Does the cable come pre-lubricated? Yes, the SeaStar CCX20508 is lubricated for life at the factory, so it does not require field greasing.

What connector does the engine end use? The engine end of the CCX20508 uses a Mercury style engine end connection.

What control heads work with this cable? The control end of the CCX20508 accepts controls that use 10-32 threaded ends, or works with most aftermarket controls.

What is the weight of the CCX20508? The SeaStar CCX20508 weighs 1.53 pounds.

Is this cable good for tight or long cable runs? Yes, the 4 inch minimum bend radius makes the CCX20508 suited for complex or long cable runs, and for foot throttle applications on performance and bass boats.

Where is the CCX20508 made? The SeaStar CCX20508 control cable is made in the U.S.A.

What color is the CCX20508? The CCX20508 control cable is black.
