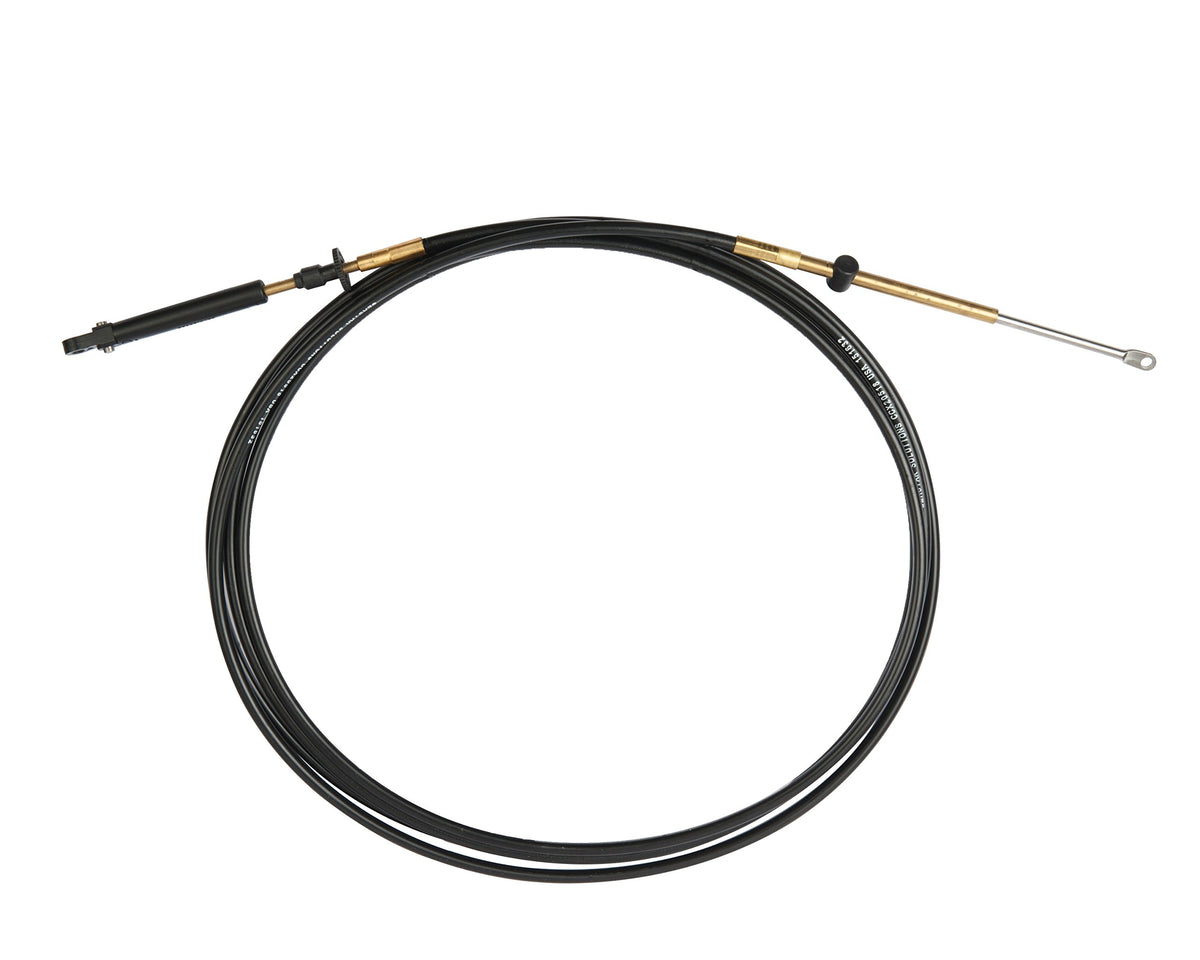

SeaStar Xtreme Control Cable CCX20511, 11 Foot, Mercury/Force Style Engine End Connection

The SeaStar CCX20511 is an 11-foot Xtreme control cable built as a drop-in replacement for original equipment control cables, using the boat's existing connection components. It is designed for Mercury products (1965-date) and Force products (1993-date) that use controls accepting 10-32 threaded ends, or most aftermarket controls, with a Mercury style engine end connection.

The cable uses SeaStar's XTREME Splined Core technology, in which ridges on the core create a close fit with the cable's inner liner for smooth movement and minimal lost motion. It carries a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard cables, making it well suited to complex or long cable runs and to foot throttle applications on performance and bass boats. The core is protected by a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, and it uses 0.033 inch oil tempered lay wires for strength. Stainless steel terminals and brass fittings add further corrosion protection, and the cable is lubricated for life at the factory. It exceeds engine manufacturer specifications and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20511
• Length: 11 feet
• Engine Compatibility: Mercury (1965-date); Force (1993-date)
• Control End Connection: Accepts 10-32 threaded ends or most aftermarket controls
• Engine End Connection: Mercury style
• Jacket: 0.34 inch HDPE
• Minimum Bend Radius: 4 inches
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals: Stainless steel
• Fittings: Brass
• Color: Black
• Material: Metal
• Weight: 1.84 pounds
• Country of Origin: Made in the U.S.A.

Fitment

• Mercury products (1965-date) using controls accepting 10-32 threaded ends or most aftermarket controls
• Force products (1993-date) using controls accepting 10-32 threaded ends or most aftermarket controls
• Mercury style engine end connection

Replaces (OEM)

• Designed as a drop-in replacement using existing original equipment connection components; no specific OEM cross-reference numbers are listed for this part number.

Frequently Asked Questions

What engines does the SeaStar CCX20511 fit? The CCX20511 is designed for Mercury products from 1965-date and Force products from 1993-date that use controls accepting 10-32 threaded ends, or most aftermarket controls, and it uses a Mercury style engine end connection.

How long is this control cable? The SeaStar CCX20511 is an 11 foot control cable, as indicated by the 11 in its part number.

Can I install the CCX20511 as a direct replacement for my old cable? Yes, the CCX20511 is engineered as a drop-in replacement for original equipment control cables and uses the boat's existing connection components, so no new hardware is required at the control or engine end.

What is the minimum bend radius on this cable? This Xtreme cable has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, which makes it a better fit for complex or long cable runs.

What is the outer jacket made of? The CCX20511 uses a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

What material are the core wires and terminals? The cable uses 0.033 inch oil tempered lay wires for strength, along with stainless steel terminals and brass fittings for corrosion protection.

Does the CCX20511 need to be lubricated before installation? No, the SeaStar CCX20511 is lubricated for life at the factory, so no additional lubrication is needed before or during installation.

Is the CCX20511 suitable for foot throttle applications? Yes, its 4 inch minimum bend radius and Xtreme core design make the CCX20511 well suited to foot throttle applications on performance and bass boats.

How does this cable compare to a standard control cable? The CCX20511 exceeds engine manufacturer specifications and offers a 4 inch minimum bend radius versus 8 inches on standard cables, making it a better choice for tight or long cable routing.

Where is the CCX20511 manufactured? The SeaStar CCX20511 control cable is made in the U.S.A.

What color is the CCX20511 cable? The CCX20511 has a black finish.

How much does the CCX20511 weigh? The SeaStar CCX20511 weighs 1.84 pounds.
