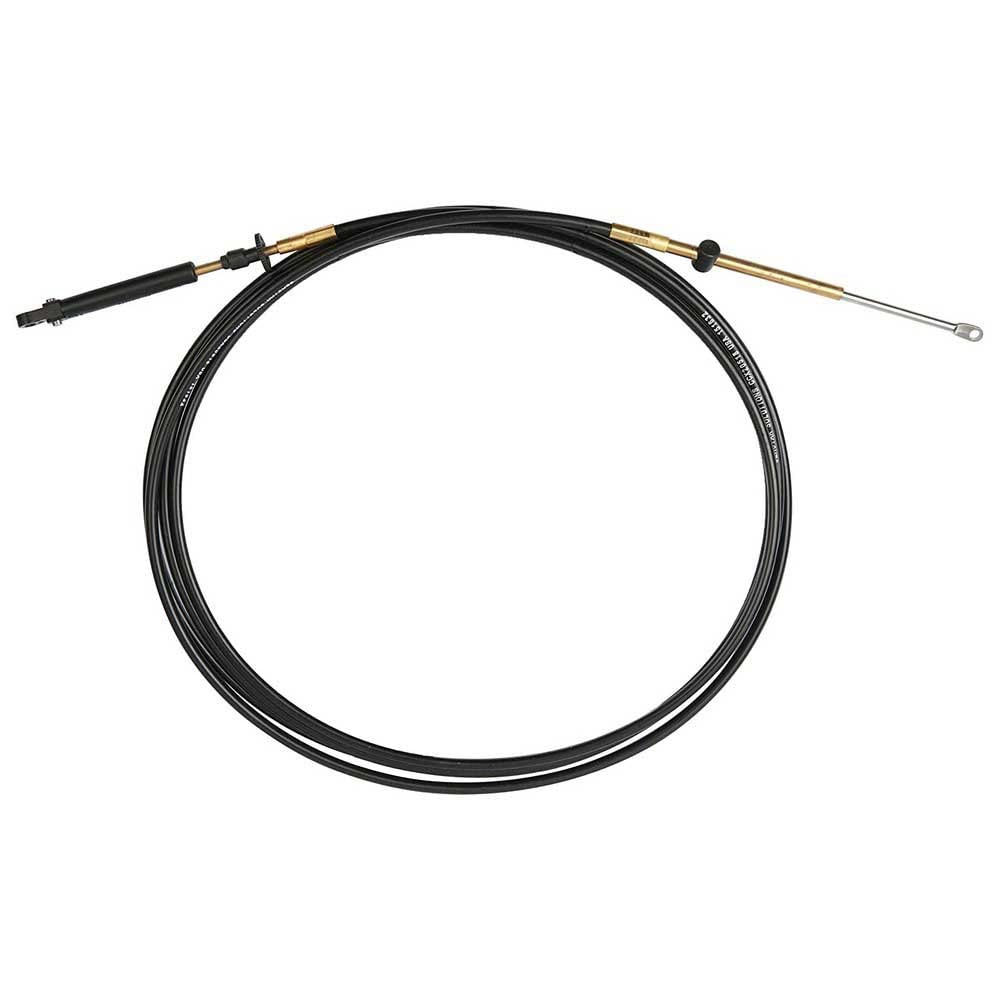

SeaStar CCX20512 Xtreme Control Cable, 12 Feet, Mercury Style Engine End for Mercury (1965-date) and Force (1993-date)

The SeaStar CCX20512 is a 12-foot Xtreme control cable engineered as a drop-in replacement for boat throttle and shift control runs. It uses SeaStar's Xtreme Technology, built around a patented splined core: ridges on the core keep a close fit with the cable's inner liner so the cable moves smoothly with minimal lost motion. The Xtreme design also gives the cable a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, which makes it a strong choice for complex or long cable runs, tight engine compartments, and foot-throttle setups on performance and bass boats.

Construction is built for the marine environment: a 0.34 inch super tough HDPE outer jacket resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, while 0.033 inch oil tempered lay wires provide strength and consistent performance. Stainless steel terminals and brass fittings add corrosion protection, and the cable is lubricated for life at the factory, so no field lubrication is required. The engine end uses a Mercury style connection, and the control end accepts 10-32 threaded ends or fits most aftermarket controls. The cable is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20512
• Product Series: CCX205XX
• Cable Length: 12 feet
• Engine End Connection: Mercury style
• Compatible Engines (Engine End): Mercury (1965-date); Force (1993-date)
• Control End: Accepts 10-32 threaded ends or most aftermarket controls
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34 inch Super Tough HDPE, resists UV, salt water, chemicals, gasoline, and oil
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals: Stainless steel
• Fittings: Brass
• Lubrication: Lubricated for life at the factory
• Country of Origin: Made in U.S.A.
• Weight: 1.96 pounds
• UPC: 808282272982

Fitment

• Mercury engines (1965-date), using controls that accept 10-32 threaded ends or most aftermarket controls
• Force engines (1993-date), using controls that accept 10-32 threaded ends or most aftermarket controls

Frequently Asked Questions

What is the SeaStar CCX20512 used for? The CCX20512 is a 12-foot Xtreme control cable used for boat throttle or shift control runs, connecting the helm control to the engine using a Mercury style engine end connection.

How long is the CCX20512 control cable? This cable measures 12 feet, matched to the CCX205XX series length option that fits this run length; always confirm the correct length for your control run before ordering.

Which engines does the CCX20512 fit? On the engine end, the CCX20512 is built for Mercury engines (1965-date) and Force engines (1993-date) using a Mercury style connection.

What type of helm controls does this cable work with? The control end of the CCX20512 accepts 10-32 threaded ends, so it works with most aftermarket control units built to that standard.

What makes the Xtreme cable different from a standard control cable? The CCX20512's Xtreme construction uses a splined core that allows a close fit with the cable's inner liner for smoother movement, giving it a 4 inch minimum bend radius compared to 8 inches on standard control cables, which helps on long or complex cable runs.

What is the outer jacket made of? A 0.34 inch Super Tough HDPE jacket covers the CCX20512, resisting abrasion and standing up to UV, salt water, chemicals, gasoline, and oil.

Does the CCX20512 need to be lubricated before installation? No. The CCX20512 is lubricated for life at the factory, so no additional lubrication is needed at install.

What are the terminals and fittings made of? The CCX20512 uses stainless steel terminals and brass fittings for corrosion protection in marine environments.

Is the CCX20512 a direct drop-in replacement? Yes, the CCX20512 is designed as a drop-in replacement control cable using the existing connection components at the Mercury style engine end.

Where is the CCX20512 control cable made? The CCX20512 is made in the U.S.A.

How much does the CCX20512 weigh? The SeaStar CCX20512 weighs 1.96 pounds.

Is the CCX20512 suitable for foot throttle applications? Yes, the tight 4 inch minimum bend radius of the CCX20512's Xtreme construction makes it well suited to foot throttle setups on performance and bass boats as well as complex or long cable runs.
