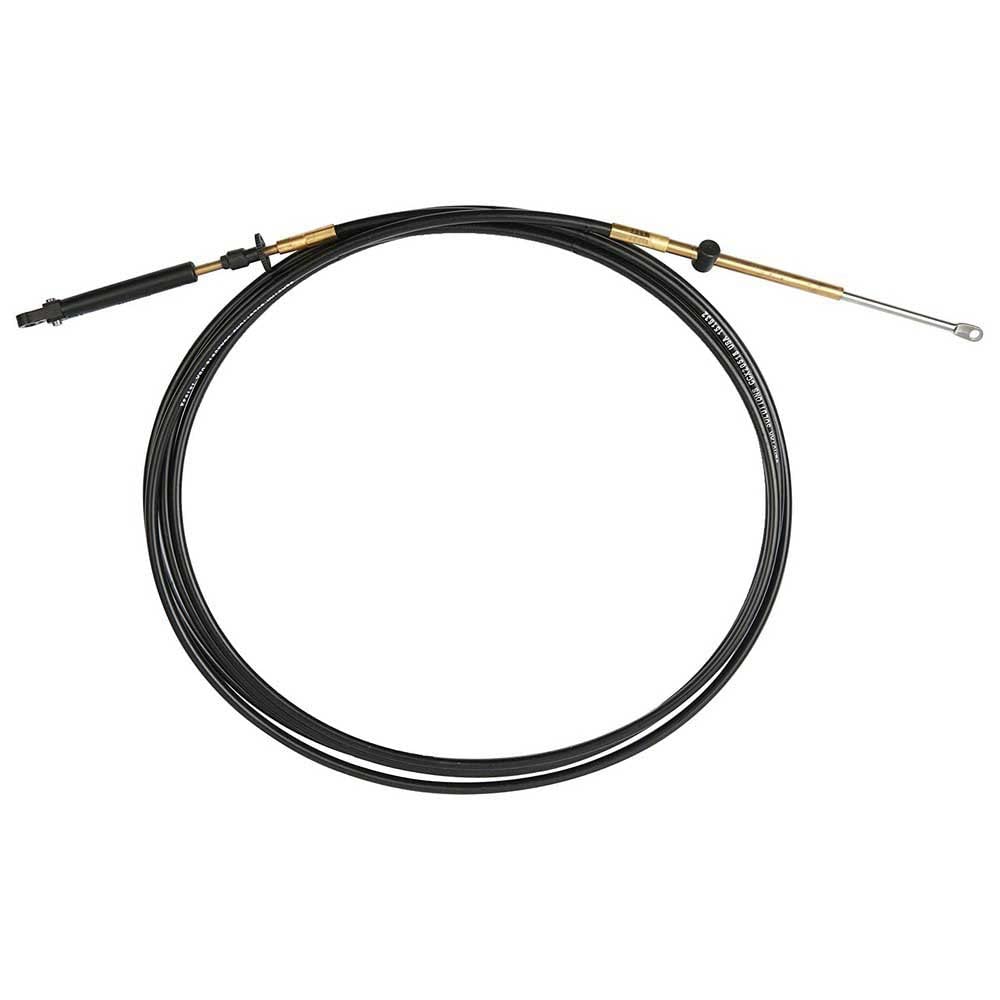

SeaStar CCX20514 Xtreme Control Cable, 14 Feet, Mercury Style Engine End for Mercury (1965-date) and Force (1993-date)

The SeaStar CCX20514 is a 14-foot Xtreme control cable built for boaters who need a drop-in replacement for their existing engine control cable. It uses SeaStar's Xtreme Technology, built around a patented splined core: ridges on the core give a close fit with the cable's inner liner, which keeps the cable moving smoothly with minimal lost motion. Compared to a standard control cable's 8-inch minimum bend radius, this Xtreme cable bends down to a 4-inch minimum radius, making it a strong choice for tight or complex cable runs and for foot-throttle setups on performance and bass boats.

Construction is built for the marine environment: a 0.34-inch super tough HDPE jacket resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil, while the core uses 0.033-inch oil tempered lay wires across 105 copper cable strands for strength and smooth performance. Stainless steel terminals and brass fittings add corrosion protection at the connection points, and the cable is lubricated for life at the factory so it does not need field greasing. It is finished in black and made in the U.S.A.

The CCX20514 has a Mercury style engine end connection and is built for Mercury products (1965-date) and Force products (1993-date) using controls which accept 10-32 threaded ends, making it a fit for most aftermarket control setups using that connection style. It carries a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20514
• Cable Length: 14 feet
• Engine End Connection: Mercury style
• Compatible Engines: Mercury (1965-date), Force (1993-date)
• Compatible Control Ends: Aftermarket controls with 10-32 threaded ends
• Jacket Material: HDPE, 0.34 inch thick
• Core Wire Material: Copper
• Number of Cable Strands: 105
• Lay Wire Diameter: 0.033 inch, oil tempered
• Terminal Material: Stainless steel
• Fitting Material: Brass
• Minimum Bend Radius: 4 inches
• Color: Black
• Weight: 2.13 pounds
• Country of Origin: Made in the U.S.A.
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• Mercury products, 1965-date
• Force products, 1993-date
• Controls which accept 10-32 threaded ends (most aftermarket controls)

Frequently Asked Questions

What length is the SeaStar CCX20514 control cable? The CCX20514 is a 14-foot control cable, so measure your existing cable run before ordering to confirm this is the correct length for your boat.

What engines does the CCX20514 fit? It is built for Mercury products from 1965-date and Force products from 1993-date, using controls which accept 10-32 threaded ends.

What kind of engine end connection does this cable have? The SeaStar CCX20514 has a Mercury style engine end connection, designed as a drop-in replacement using the existing connection components at the engine.

Will this cable work with my aftermarket controls? Yes, as long as your controls accept 10-32 threaded ends, which covers most aftermarket control heads compatible with the Mercury style connection on the CCX20514.

What is the minimum bend radius of this cable? The CCX20514 has a 4-inch minimum bend radius, half of the 8-inch minimum radius of a standard control cable, which makes it better suited to tight or complex cable runs.

What is the cable core made of? SeaStar builds the CCX20514 with 105 copper cable strands and 0.033-inch oil tempered lay wires around a splined core for strength and smooth, low-lost-motion movement.

How durable is the outer jacket on this control cable? The CCX20514 uses a 0.34-inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Does the CCX20514 need to be lubricated before installation? No, this cable is lubricated for life at the factory, so it is ready to install without adding grease.

How much does the CCX20514 control cable weigh? It weighs 2.13 pounds.

What color is this control cable? The SeaStar CCX20514 is finished in black.

Where is the CCX20514 control cable made? It is made in the U.S.A.

What warranty comes with the CCX20514? SeaStar backs the CCX20514 with a two-year recreational user warranty against manufacturing defects.
