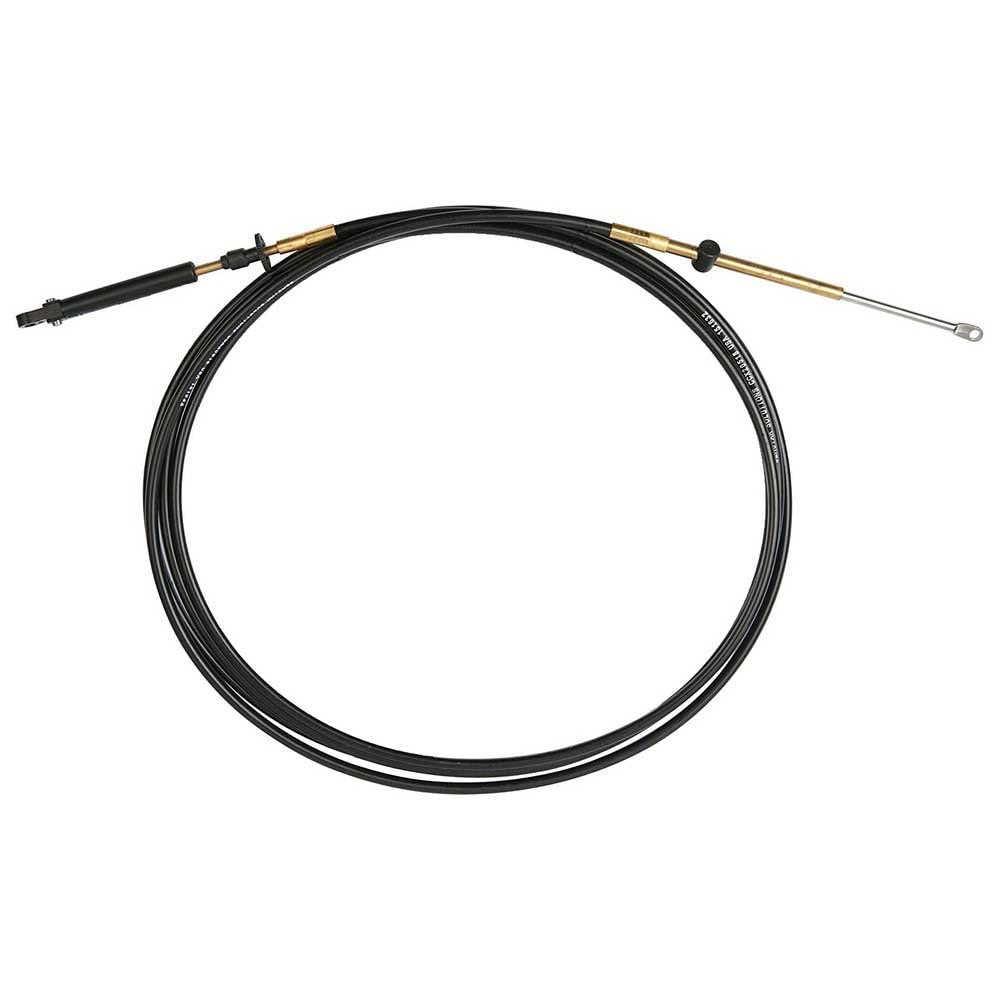

SeaStar CCX20519 Xtreme Control Cable, 19 Foot, Mercury/Force Engine Control Cable

The SeaStar CCX20519 is a 19 foot Xtreme control cable built to operate the shift or throttle function on engines that use a Mercury-style engine end connection. It is engineered for Mercury products (1965-date) and Force outboards (1993-date) that use control heads accepting 10-32 threaded ends, and it is also compatible with most aftermarket controls. SeaStar's Xtreme Technology is built around a patented splined core: ridges on the core create a close fit with the cable's inner liner, giving smooth, low-friction movement with minimal lost motion. The cable carries a 4 inch minimum bend radius, half the 8 inch minimum bend radius of a standard control cable, which makes it a strong choice for tight engine rooms, complex routing, or long cable runs where a standard cable would bind or add drag. Construction includes a 0.34 inch super tough HDPE jacket that resists abrasion, UV, salt water, chemicals, gasoline, and oil, along with 0.033 inch oil tempered lay wires for strength. Stainless steel terminals and brass fittings add corrosion protection, and the cable is lubricated for life at the factory, so no additional lubrication is required at installation. It exceeds the engine manufacturer's specifications and is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20519
• Cable Length: 19 feet
• Weight: 2.72 pounds
• Color: Black
• Material: Stainless steel, brass, and HDPE (High-Density Polyethylene)
• Minimum Bend Radius: 4 inches
• Jacket Thickness: 0.34 inches
• Lay Wire Diameter: 0.033 inches
• Number of Cable Strands: 680
• Number of Wires: 1
• Engine End Connection: Mercury style
• Control End Compatibility: 10-32 threaded ends or most aftermarket controls
• UPC: 808282273057

Fitment

The CCX20519 is designed for Mercury products (1965-date) and Force outboards (1993-date) using controls that accept 10-32 threaded ends, and it also works with most aftermarket controls. It uses a Mercury-style engine end connection.

Frequently Asked Questions

What engines does the SeaStar CCX20519 control cable fit? The CCX20519 is built for Mercury products from 1965-date and Force outboards from 1993-date that use control heads accepting 10-32 threaded ends, and it also works with most aftermarket controls.

How long is the CCX20519 control cable? This cable measures 19 feet, which is the length designation built into the CCX20519 part number.

What type of engine end connection does this cable use? The CCX20519 uses a Mercury-style engine end connection.

Is the CCX20519 pre-lubricated? Yes, SeaStar lubricates the CCX20519 at the factory for life, so no additional lubrication is needed during installation.

What is the bend radius of this cable compared to a standard control cable? The CCX20519 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on a standard control cable, which allows it to handle tighter routing.

What materials is the CCX20519 made from? It is built with a 0.34 inch HDPE jacket, 0.033 inch oil tempered lay wires, and stainless steel terminals with brass fittings for corrosion resistance.

How much does the CCX20519 weigh? The CCX20519 control cable weighs 2.72 pounds.

What color is the CCX20519 cable? The CCX20519 is black.

Where is the CCX20519 manufactured? The CCX20519 is made in the U.S.A.

Does the CCX20519 meet marine safety standards? The CCX20519 exceeds the engine manufacturer's specifications and is designed for marine control cable applications.

How many wires and strands does the CCX20519 have? The CCX20519 has 1 wire made up of 680 cable strands.

What control head types work with the CCX20519? The CCX20519 works with controls that accept 10-32 threaded ends, as well as most aftermarket controls.
