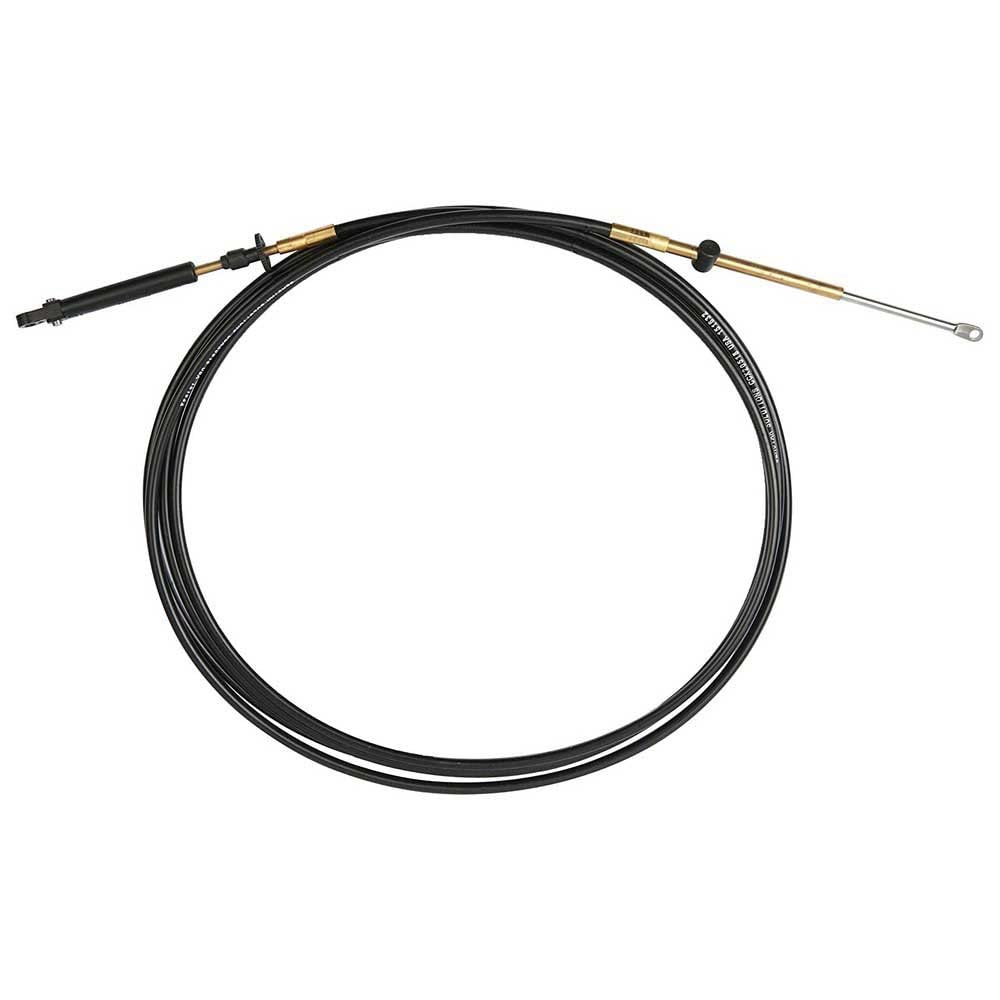

SeaStar Xtreme Control Cable CCX20520, 20 Foot, Mercury (1965-date) and Force (1993-date) Engines

The SeaStar CCX20520 is a 20 foot Xtreme control cable built for Mercury products (1965-date) and Force engines (1993-date). It uses a Mercury style engine end connection, while the control end accepts 10-32 threaded ends or works with most aftermarket controls, making it a drop-in replacement that reuses the existing connection components at the control head and engine.

The cable is built around SeaStar's patented splined core, which allows a close fit with the cable's inner liner for smooth, minimal-lost-motion movement. This construction gives the CCX20520 a 4 inch minimum bend radius, compared to the 8 inch minimum bend radius of standard control cables, so it suits complex or long cable runs, tight engine compartments, and foot throttle applications on performance and bass boats.

Corrosion protection comes from stainless steel core wires and brass fittings with moisture protective seals, wrapped in a 0.34 inch Super Tough HDPE jacket that resists abrasion, UV exposure, salt water, chemicals, gasoline, and oil. The cable is lifetime lubricated at the factory and made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20520
• Length: 20 feet
• Engine End Connection: Mercury style engine end connection
• Control End Connection: Accepts 10-32 threaded ends or most aftermarket controls
• Fitment: Mercury products (1965-date); Force (1993-date)
• Minimum Bend Radius: 4 inches
• Cable Jacket: 0.34 inch Super Tough HDPE
• Core Wire: 0.033 inch oil tempered lay wires
• Number of Wires: 3
• Material: Stainless steel core wires, brass fittings, HDPE jacket
• Terminals: Stainless steel
• Color: Black
• Weight: 2.74 pounds
• Country of Origin: Made in the U.S.A.
• UPC: 808282273064

Fitment

Mercury products (1965-date) and Force (1993-date) using controls which accept 10-32 threaded ends, or using most aftermarket controls. Mercury style engine end connection.

Frequently Asked Questions

What length is the SeaStar CCX20520 control cable? The CCX20520 is a 20 foot control cable, cut to length for direct installation without trimming.

Which engines does the CCX20520 fit? This cable is built for Mercury products (1965-date) and Force engines (1993-date), using a Mercury style engine end connection.

What kind of control head does the CCX20520 work with? The control end of the CCX20520 accepts 10-32 threaded ends and also works with most aftermarket control heads.

What is the CCX20520 made of? It is built with stainless steel core wires and brass fittings under a 0.34 inch Super Tough HDPE jacket, with moisture protective seals for corrosion resistance.

How much does the CCX20520 weigh? The SeaStar CCX20520 control cable weighs 2.74 pounds.

How tight can the CCX20520 be routed? Its splined Xtreme core gives the CCX20520 a 4 inch minimum bend radius, versus the 8 inch minimum bend radius of standard control cables, so it handles tighter and more complex cable runs.

Does the CCX20520 come pre-lubricated? Yes, the CCX20520 is lifetime lubricated at the factory for smooth, low-friction movement.

What color is the CCX20520 cable? The CCX20520 has a black HDPE jacket.

Where is the CCX20520 manufactured? The CCX20520 is made in the U.S.A.

How many wires are in the CCX20520 control cable? The CCX20520 has 3 wires in its construction.

Is the CCX20520 a drop-in replacement for the factory cable? Yes, the CCX20520 is engineered to use the existing connection components at both the control head and the Mercury style engine end.

How resistant is the CCX20520 jacket to fuel and UV exposure? The 0.34 inch Super Tough HDPE jacket on the CCX20520 resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.
