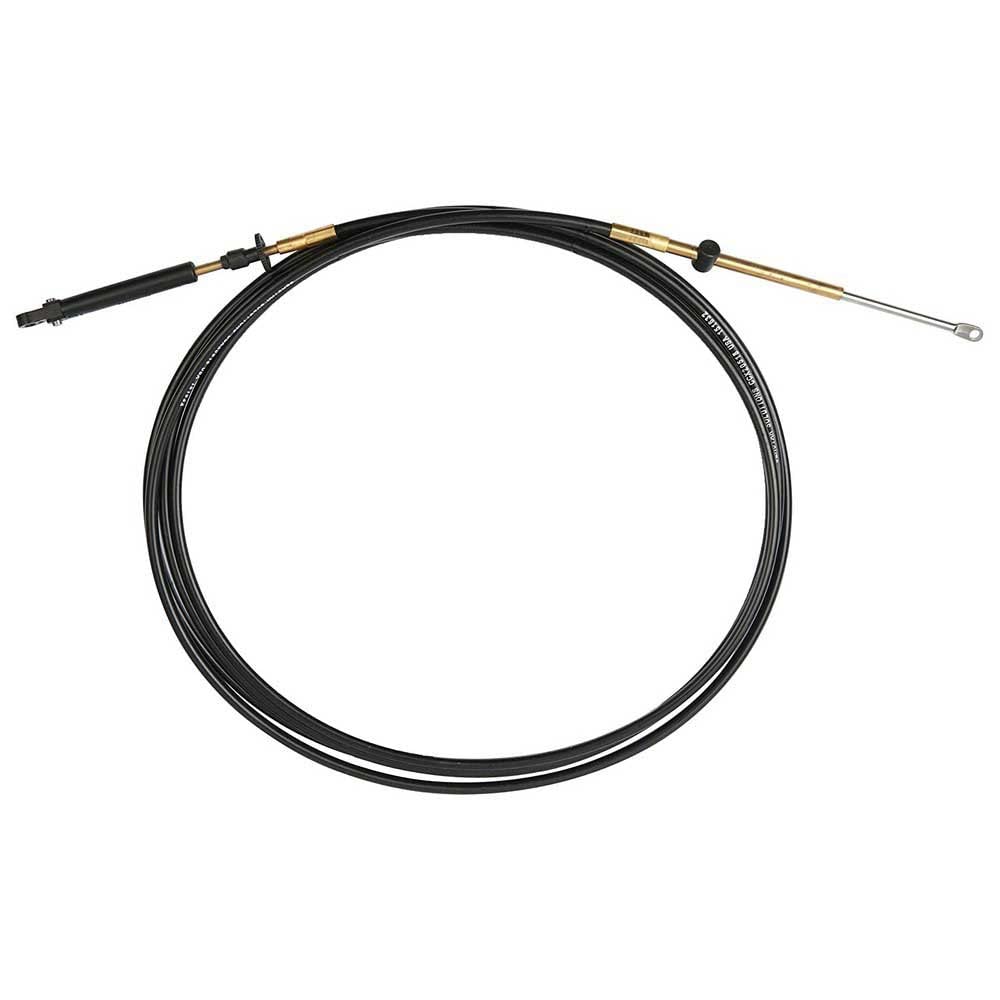

SeaStar Xtreme Control Cable CCX20521, 21 Feet, for BRP/OMC/Johnson/Evinrude/Gale 1979-date Engines with BRP/OMC Controls

The SeaStar Xtreme control cable CCX20521 is a 21-foot throttle/shift cable built for BRP/OMC/Johnson/Evinrude/Gale outboards, 1979-date, that use BRP/OMC controls. It is engineered as a drop-in replacement for original equipment cables, reusing the existing connection components at both the control box and the engine so installation does not require modifying the control head or engine bracket. The control end accepts 10-32 threaded ends or most aftermarket controls, giving it broad compatibility beyond factory-only setups.

At the core of the cable is SeaStar's patented XTREME splined core technology: ridges on the core give a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. The cable achieves a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, which makes it well suited to complex or long cable runs and to foot throttle applications on performance and bass boats, where routing space is tight. Core wires are 0.033 inch oil-tempered lay wires for strength and performance, wrapped in a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil. Terminals are stainless steel and fittings are brass, adding corrosion resistance, and the HDPE liner is lubricated for life at the factory for consistent, smooth operation.

The CCX20521 is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects. Before ordering, confirm 21 feet is the correct length for your specific control run.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20521
• Length: 21 feet
• Weight: 2.91 pounds
• Product Type: Control Cable Assembly
• Cable Technology: XTREME splined, coated core
• Minimum Bend Radius: 4 inches
• Outer Jacket: 0.34 inch Super Tough HDPE
• Core Wire Diameter: 0.033 inch oil-tempered lay wires
• Terminals: Stainless steel
• Fittings: Brass
• Control End: Accepts 10-32 threaded ends or most aftermarket controls
• Compatible Controls: BRP/OMC controls
• Fitment: BRP/OMC/Johnson/Evinrude/Gale engines, 1979-date
• Country of Origin: Made in U.S.A.
• Warranty: Two-year recreational user warranty
• UPC: 808282273071
• Package Dimensions: 17.5 x 17.33 x 1.5 inches

Fitment

• BRP/OMC/Johnson/Evinrude/Gale engines, 1979-date, with BRP/OMC controls

Frequently Asked Questions

What is the SeaStar CCX20521 control cable used for? The CCX20521 is a 21 foot throttle/shift control cable for BRP/OMC/Johnson/Evinrude/Gale outboards, 1979-date, that use BRP/OMC controls, and it is designed as a drop-in replacement for the original equipment cable.

How long is the CCX20521 cable? This SeaStar Xtreme control cable measures 21 feet, so confirm that length matches your control run before ordering.

What is the minimum bend radius on this cable? The CCX20521 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it easier to route through tight or complex cable runs.

What is the outer jacket made of? A 0.34 inch Super Tough HDPE jacket covers the CCX20521, resisting abrasion and withstanding UV exposure, salt water, chemicals, gasoline, and oil.

Will this cable work with aftermarket control boxes? Yes, the control end of the CCX20521 accepts 10-32 threaded ends or most aftermarket controls.

Is the CCX20521 a drop-in replacement for the factory cable? Yes, it is engineered as a replacement for the original equipment cable and uses the existing connection components at the control box and engine.

What warranty comes with the CCX20521? SeaStar backs the CCX20521 control cable with a two-year recreational user warranty against manufacturing defects.

How much does the CCX20521 weigh? The SeaStar CCX20521 control cable weighs 2.91 pounds.

Does the CCX20521 come pre-lubricated? Yes, the cable is lifetime lubricated at the factory, and the HDPE liner is designed to stay ultra smooth over time.

What terminals and fittings does the CCX20521 use? It uses stainless steel terminals and brass fittings for added corrosion protection.

Where is the CCX20521 control cable made? The CCX20521 is made in the U.S.A.

What engines is the CCX20521 compatible with? The CCX20521 fits BRP/OMC/Johnson/Evinrude/Gale engines, 1979-date, equipped with BRP/OMC controls.
