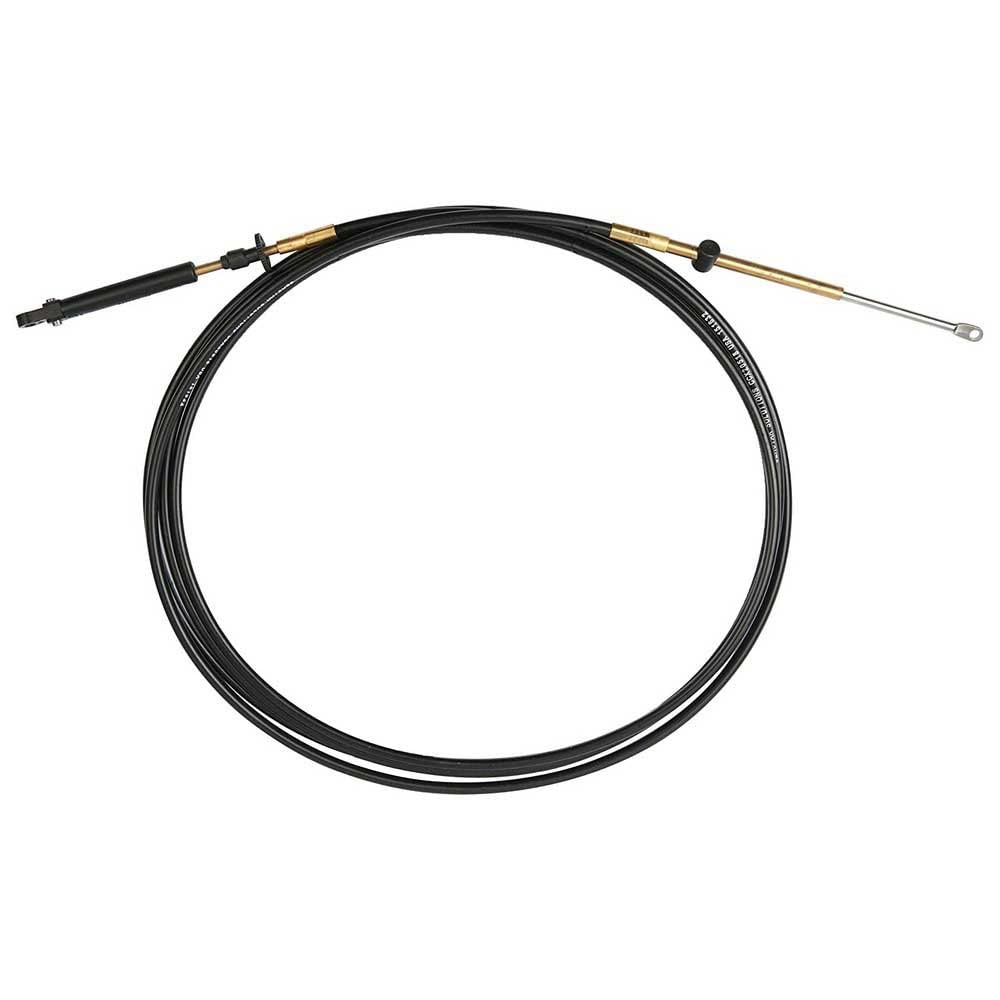

SeaStar Xtreme Control Cable CCX20522, 22 Feet, Mercury/Force Engine End

The SeaStar CCX20522 is a 22-foot Xtreme control cable engineered as a drop-in replacement for original equipment control cables, using the existing connection components on the boat. It is built for Mercury products (1965-date) and Force products (1993-date) running aftermarket controls, with a control end that accepts 10-32 threaded ends for most aftermarket control boxes and a Mercury style engine end connection.

Xtreme construction gives this cable a 4 inch minimum bend radius, versus an 8 inch minimum bend radius on standard control cables, making it well suited to foot throttle applications on performance and bass boats, and to complex or long cable runs where routing space is tight. The cable is protected by a 0.34 inch Super Tough HDPE jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil. Inside, 0.033 inch oil tempered lay wires provide strength and performance, running over a splined, coated Xtreme core element that keeps movement smooth with minimal lost motion. Stainless steel terminals and brass fittings add corrosion protection at the connection points.

Each cable is lubricated for life at the factory and is made in the U.S.A. Confirm the 22 foot length matches your existing cable run before ordering.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20522
• Cable Length: 22 feet
• Item Dimensions: 17 x 1.5 x 17 inches
• Weight: 1.34 pounds
• Color: Black
• Material: Metal (HDPE jacket, oil tempered lay wires, stainless steel terminals, brass fittings)
• Jacket: 0.34 inch Super Tough HDPE, abrasion, UV, salt water, chemical, gasoline and oil resistant
• Core Wire: 0.033 inch oil tempered lay wires
• Terminals/Fittings: Stainless steel terminals and brass fittings
• Control End: Accepts 10-32 threaded ends, compatible with most aftermarket controls
• Engine End: Mercury style engine end connection
• Minimum Bend Radius: 4 inches
• Number of Items: 1
• UPC: 808282273088

Fitment

• Mercury products (1965-date) using aftermarket controls
• Force products (1993-date) using aftermarket controls

Frequently Asked Questions

What engines does the SeaStar CCX20522 control cable fit? The CCX20522 is built for Mercury products (1965-date) and Force products (1993-date) that use aftermarket throttle or shift controls, with a Mercury style engine end connection.

How long is the CCX20522 cable? This SeaStar control cable measures 22 feet, so confirm your existing cable run is 22 feet before ordering the CCX20522.

What is the minimum bend radius on this cable? 4 inches, compared to an 8 inch minimum bend radius on standard control cables, which is why the CCX20522 works well for tight or complex routing.

What kind of control box does the CCX20522 connect to? The control end accepts 10-32 threaded ends and is compatible with most aftermarket controls.

Is the CCX20522 a direct drop-in replacement? Yes, it is engineered as a replacement for the original equipment control cable and uses the existing connection components already on the boat.

What is the cable jacket made of? A 0.34 inch Super Tough HDPE jacket covers the CCX20522, resisting abrasion along with UV, salt water, chemical, gasoline and oil exposure.

Does the CCX20522 come pre-lubricated? Yes, the cable is lubricated for life at the factory, so no additional lubrication is needed before installation.

How much does the CCX20522 control cable weigh? 1.34 pounds.

Where is the CCX20522 cable manufactured? It is made in the U.S.A.

What are the core wires made of on this cable? 0.033 inch oil tempered lay wires run through a splined, coated Xtreme core element for smooth, low-lost-motion movement inside the CCX20522.

What is included when I order the CCX20522? One complete CCX20522 control cable assembly, 22 feet in length, ready to connect using existing control and engine end hardware.

What corrosion protection does this cable have? Stainless steel terminals and brass fittings protect the connection points on the CCX20522 against corrosion.
