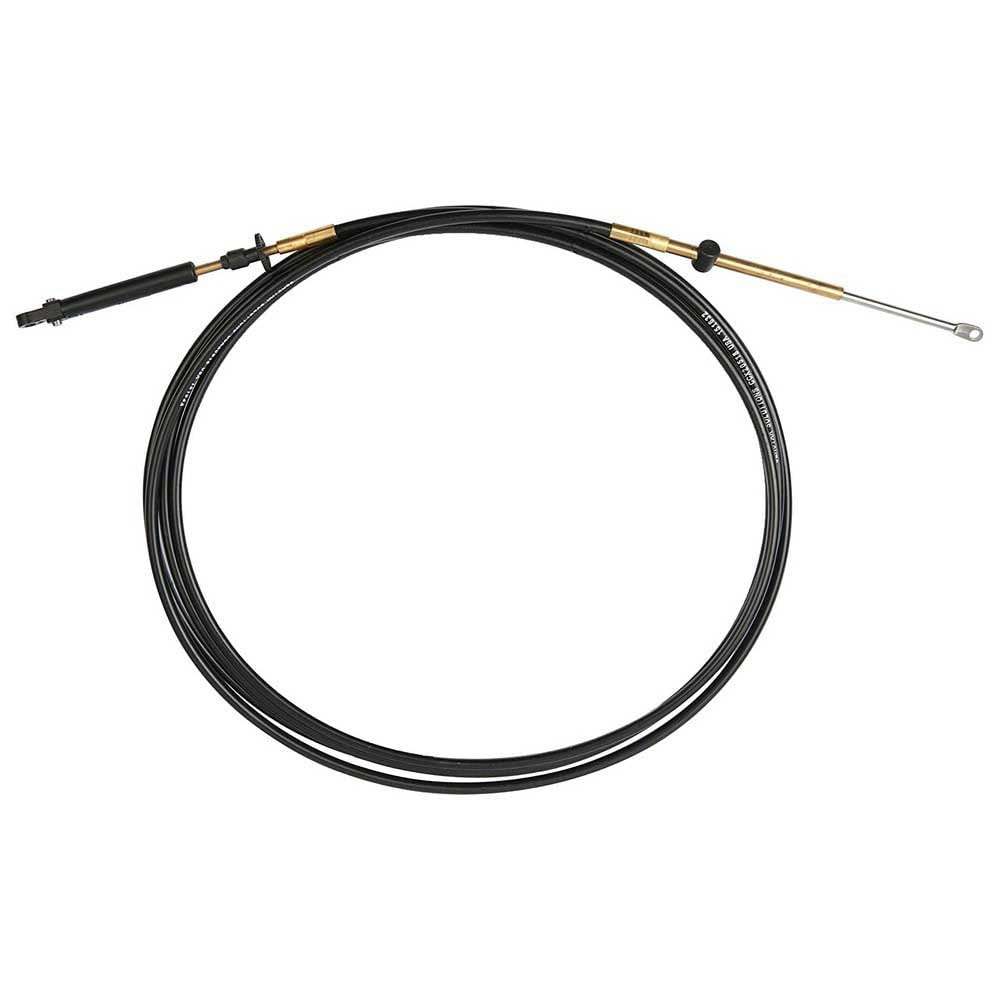

SeaStar CCX20524 XTREME Control Cable, 24 Feet, 10-32 Threaded End, Mercury (1965-Date) and Force (1993-Date)

The SeaStar CCX20524 is a 24-foot XTREME control cable built for boats using controls that accept 10-32 threaded ends or most aftermarket control heads, with a Mercury-style engine end connection for Mercury (1965-date) and Force (1993-date) engines. It uses SeaStar's patented splined core, where ridges on the core create a close fit with the cable's inner liner for easy movement and minimal lost motion. This XTREME design gives the cable a 4 inch minimum bend radius, half the 8 inch minimum required by standard-duty control cables, making it well suited to complex routing, long cable runs, or foot-throttle setups on performance and bass boats.

The cable is protected by a 0.34 inch thick HDPE jacket that resists abrasion and stands up to UV exposure, salt water, chemicals, gasoline, and oil. Inside, 0.033 inch oil-tempered lay wires provide strength and consistent performance, while stainless steel terminals and brass fittings add corrosion resistance at the connection points. The core is factory-lubricated for life and the liner is designed for long-term smooth operation. This is a drop-in replacement type cable that uses the existing connection components at the control and engine ends, and it is made in the U.S.A.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20524
• Length: 24 feet
• Cable Type: XTREME control cable with splined core
• Control End: 10-32 threaded end, compatible with most aftermarket controls
• Engine End: Mercury-style engine end connection
• Engine Compatibility: Mercury (1965-date); Force (1993-date)
• Minimum Bend Radius: 4 inches
• Jacket: 0.34 inch HDPE jacket
• Core Wire: 0.033 inch oil-tempered lay wires
• Terminals/Fittings: Stainless steel terminals, brass fittings
• Material: Stainless steel, brass, and HDPE
• Item Dimensions: 17 x 1.5 x 17 inches
• Weight: 3.16 pounds
• Number of Items: 1
• Country of Origin: Made in the U.S.A.

Fitment

• Mercury products (1965-date)
• Force products (1993-date)
• Controls which accept 10-32 threaded ends, or most aftermarket controls

Frequently Asked Questions

What length is the SeaStar CCX20524 control cable? The CCX20524 is a 24-foot control cable, sized for longer or more complex cable routing on a boat.

What kind of controls does the CCX20524 work with? It has a 10-32 threaded control end, compatible with most aftermarket control heads.

Which engines does the CCX20524 fit? A Mercury-style engine end connection fits Mercury products (1965-date) and Force products (1993-date).

What is the minimum bend radius of this cable? 4 inches, half of the 8 inch minimum bend radius required by standard-duty control cables, which helps with tight or complex routing.

What is the outer jacket made of? A 0.34 inch thick HDPE (high-density polyethylene) jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Is the CCX20524 pre-lubricated? Yes, the core is lubricated at the factory for life, so no additional lubrication is needed at installation.

How much does the CCX20524 weigh? 3.16 pounds.

Is the CCX20524 made in the USA? Yes, this SeaStar control cable is made in the U.S.A.

What is included when I order the CCX20524? One 24-foot CCX20524 control cable assembly, complete with its terminals and fittings.

What are the terminals and fittings made of? Stainless steel terminals and brass fittings, chosen for corrosion resistance in marine use.

How does the CCX20524 differ from a standard control cable? As an XTREME cable, the CCX20524 has a 4 inch minimum bend radius versus 8 inches for a standard cable, and uses a splined core for smoother movement with less lost motion.

Does the CCX20524 come with a warranty? Yes, it carries a two-year recreational user warranty against manufacturing defects.
