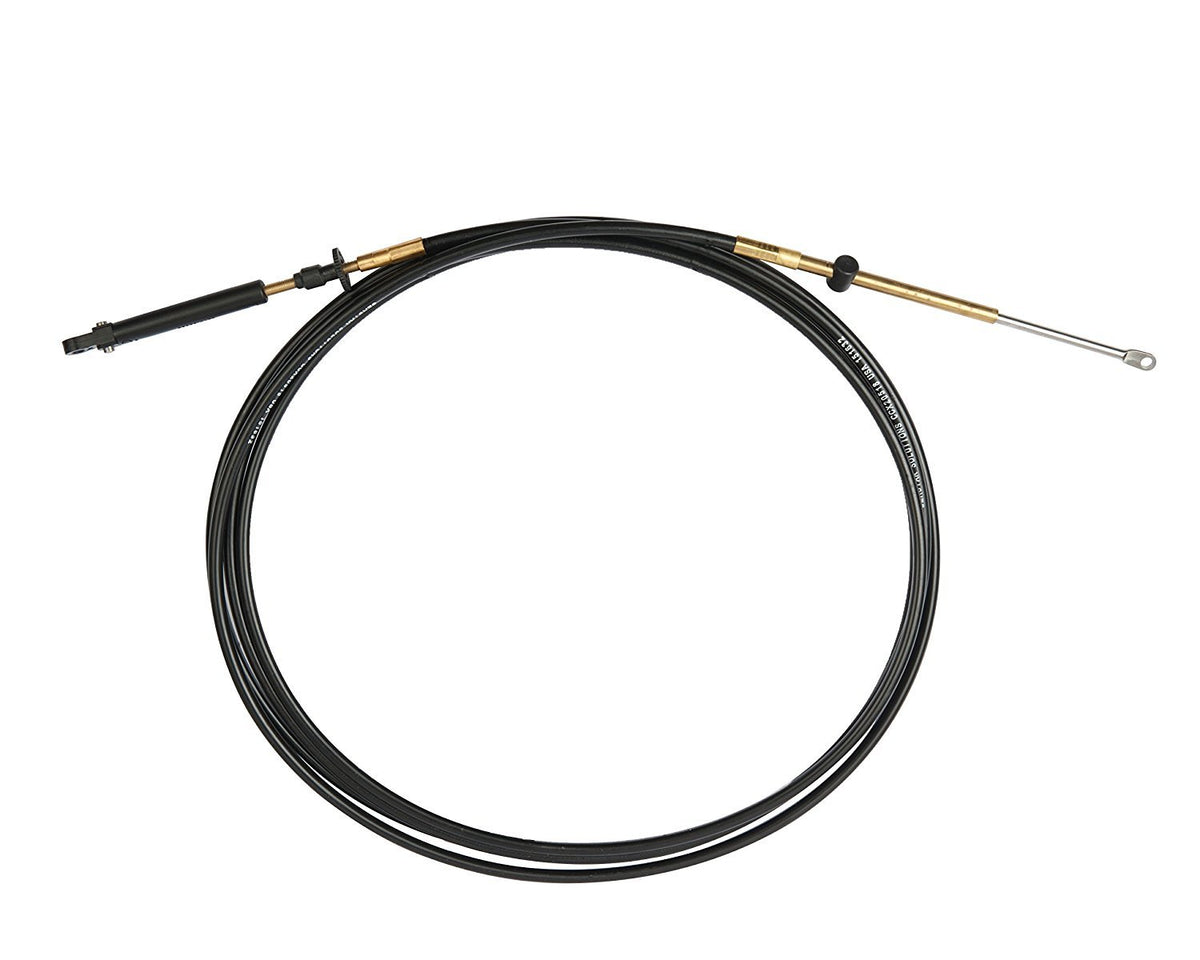

SeaStar CCX20526 Xtreme Control Cable, 26 Feet, Mercury/Force Engine End

The SeaStar CCX20526 is a 26-foot Xtreme control cable built for boat throttle and shift applications. It uses SeaStar's patented splined core, where ridges on the core give a close fit with the cable's inner liner for easy movement with minimal lost motion. The Xtreme design has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to complex or long cable runs, tight engine bays, and foot throttle applications on performance and bass boats.

The cable is protected by a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil. Inside, 0.033 inch oil tempered lay wires provide strength and performance, and the core wires carry moisture protective seals for corrosion resistance. Stainless steel terminals and brass fittings are used at the connection points for added corrosion protection. Every CCX20526 cable is lubricated for life at the factory and is made in the U.S.A. On the control end, this cable works with controls that accept 10-32 threaded ends or with most aftermarket controls. On the engine end, it uses a Mercury style engine end connection and exceeds engine manufacturer's specifications.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20526
• Product Line: CCX205XX
• Length: 26 feet
• Control End: 10-32 threaded ends, compatible with most aftermarket controls
• Engine End: Mercury style engine end connection
• Jacket: 0.34 inch HDPE, abrasion, UV, salt water, chemical, gasoline and oil resistant
• Bend Radius: 4 inches minimum
• Lay Wires: 0.033 inch oil tempered
• Terminals: Stainless steel
• Fittings: Brass
• Core Wires: Stainless or nylon covered with moisture protective seals
• Item Dimensions: 17 x 1.5 x 17 inches
• Weight: 3.36 pounds
• Material: Stainless steel, brass, and HDPE
• Country of Origin: Made in the U.S.A.
• UPC: 808282273125

Fitment

• Mercury products, 1965-date
• Force products, 1993-date

Replaces (OEM)

This cable is engineered to exceed engine manufacturer's specifications for Mercury style engine end connections; no OEM cross-reference numbers are specified for the CCX20526.

Frequently Asked Questions

What engines does the SeaStar CCX20526 control cable fit? The CCX20526 is designed for Mercury products, 1965-date, and Force products, 1993-date, using a Mercury style engine end connection.

How long is the CCX20526 control cable? This SeaStar Xtreme control cable is 26 feet long, matching the length designation in its CCX20526 part number.

What type of control does this cable work with? On the control end, the CCX20526 accepts 10-32 threaded ends and is compatible with most aftermarket controls.

What makes the Xtreme cable different from a standard control cable? SeaStar Xtreme cables, including the CCX20526, have a 4 inch minimum bend radius compared to an 8 inch minimum bend radius on standard cables, making them better suited to tight or complex cable routing.

What is the CCX20526 cable made of? The CCX20526 uses stainless steel terminals, brass fittings, 0.033 inch oil tempered lay wires, and a 0.34 inch HDPE outer jacket, with stainless or nylon covered core wires under moisture protective seals.

How much does the CCX20526 weigh? The SeaStar CCX20526 control cable weighs 3.36 pounds.

What are the dimensions of the CCX20526? The item measures 17 x 1.5 x 17 inches as packaged.

Does the CCX20526 come pre-lubricated? Yes, the CCX20526 is lubricated for life at the factory and does not require additional lubrication before installation.

What is included when you order the CCX20526? The CCX20526 ships as a single control cable assembly; no additional hardware is bundled with it.

Where is the CCX20526 control cable manufactured? The SeaStar CCX20526 is made in the U.S.A.

Is the CCX20526 suitable for foot throttle setups? Yes, the tight 4 inch bend radius of the CCX20526 makes it a good fit for foot throttle applications on performance and bass boats, as well as long or complex cable runs.

Does the CCX20526 meet marine engine specifications? The CCX20526 exceeds engine manufacturer's specifications for its Mercury style engine end connection.
