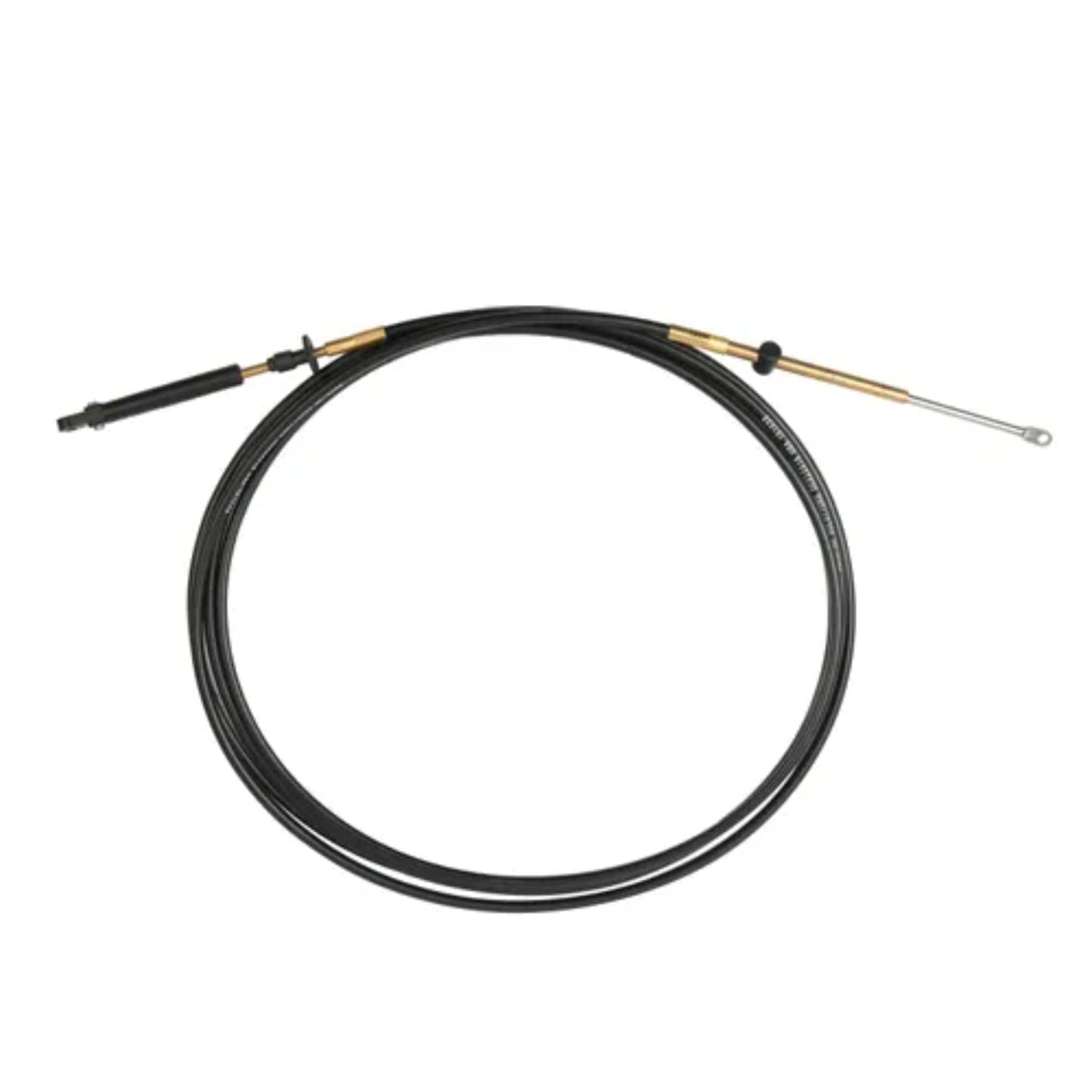

SeaStar CCX20528 Control Cable, 28 Feet, for Mercury (1965-date) and Force (1993-date) Engines

The SeaStar CCX20528 is a 28-foot control cable engineered for Mercury products (1965-date) and Force products (1993-date), using controls that accept 10-32 threaded ends or most aftermarket controls. On the engine end it uses a Mercury style connection, and SeaStar states that this cable exceeds the engine manufacturer's specifications for performance and durability. It is built as a direct engine-side control cable for throttle and shift applications on boats running compatible Mercury or Force powerheads and matching control heads.

As a single-item cable assembly (Model CCX205), it measures 17 x 1.5 x 17 inches as packaged and weighs 3.56 pounds, with a listed material of metal for its core construction. The 28-foot length (denoted by the "28" in CCX20528) makes it suited to longer cable runs between the helm control and the engine, and it ships as a single included cable ready to connect to compatible control ends.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX20528
• Model Name: CCX205
• Cable Length: 28 feet
• Item Dimensions (L x W x H): 17 x 1.5 x 17 inches
• Weight: 3.56 pounds
• Material: Metal
• Number of Items: 1
• Included Components: Cable
• Engine Compatibility: Mercury products (1965-date); Force products (1993-date)
• Control End Connection: Fits controls that accept 10-32 threaded ends or most aftermarket controls
• Engine End Connection: Mercury style engine end connection
• Performance: Exceeds engine manufacturer's specifications

Fitment

• Mercury products (1965-date)
• Force products (1993-date)
• Controls which accept 10-32 threaded ends or most aftermarket controls

Frequently Asked Questions

What engines does the SeaStar CCX20528 control cable fit? The CCX20528 is built for Mercury products (1965-date) and Force products (1993-date), using controls that accept 10-32 threaded ends or most aftermarket controls.

How long is the CCX20528 control cable? This cable measures 28 feet, which is reflected in the "28" at the end of the part number CCX20528.

What are the dimensions and weight of the CCX20528? As packaged, the CCX20528 measures 17 x 1.5 x 17 inches and weighs 3.56 pounds.

What type of engine-end connection does this cable use? The CCX20528 uses a Mercury style engine end connection, matching Mercury and Force powerhead control fittings.

Will the CCX20528 work with aftermarket helm controls? Yes, it is designed for controls that accept 10-32 threaded ends, which covers most aftermarket control units in addition to compatible Mercury controls.

What is included when I order the CCX20528? The order includes one CCX20528 control cable; no additional hardware or control heads are included.

Does the CCX20528 meet or exceed OEM performance standards? SeaStar states that the CCX20528 exceeds the engine manufacturer's specifications for control cable performance.

Is the CCX20528 the right cable for a Volvo engine with BRP/OMC controls? No. SeaStar's CCX214XX and CCX740XX cables are the ones designed for Volvo engines using BRP/OMC side mount or top mount controls; the CCX20528 is built for Mercury and Force applications instead.

What material is the CCX20528 cable made from? The CCX20528 control cable is listed with a metal construction for its core.

Is the CCX20528 a single cable or a kit? It is sold as a single cable assembly (one item included), model CCX205, in the 28-foot length.

How is the CCX20528 different from SeaStar's L-Drive shift cables? SeaStar's CC213XX cable is built specifically for U.S. Marine "L-Drive" engines with original equipment controls, while the CCX20528 is designed for Mercury and Force engine applications.
