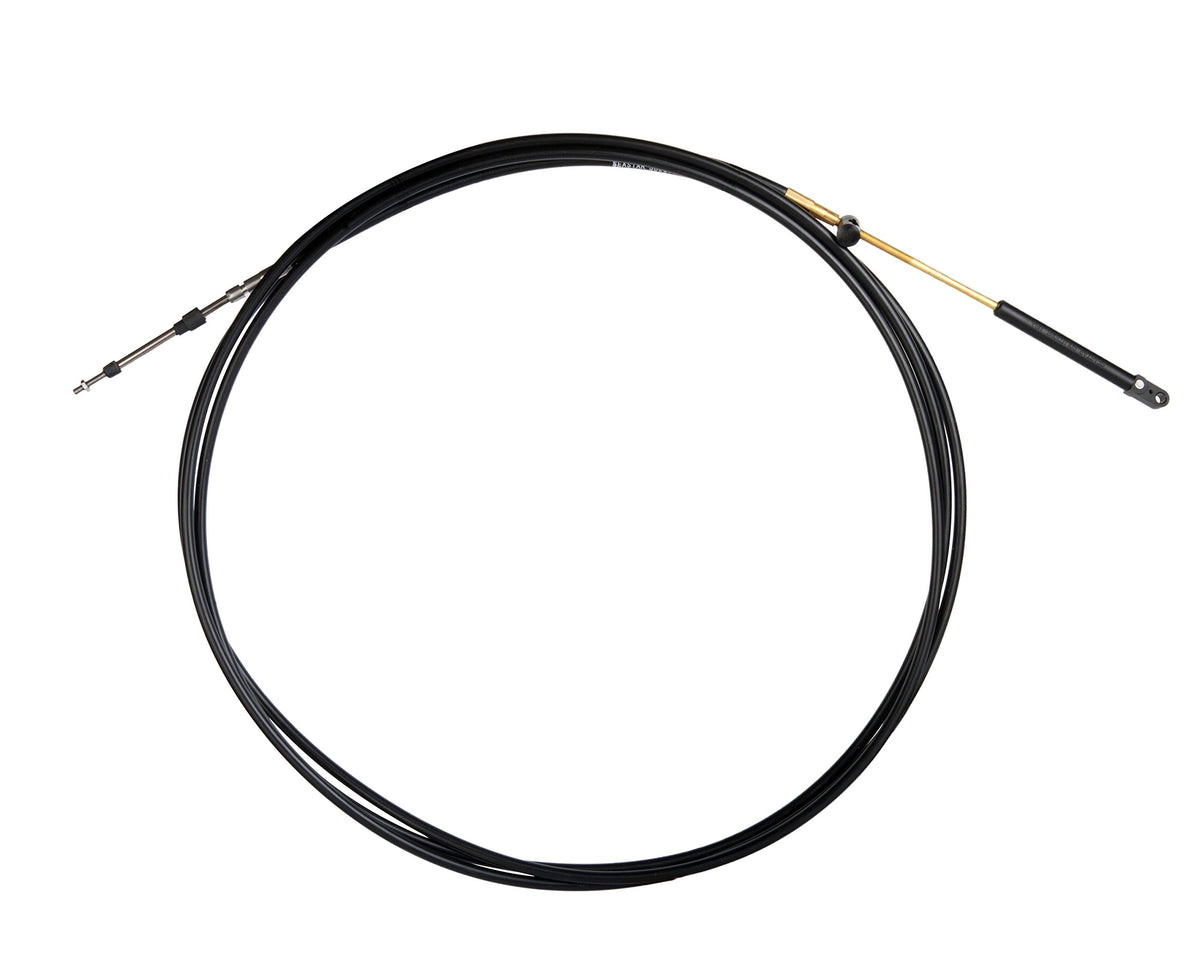

SeaStar CCX63010 Xtreme 10-Foot Control Cable for Mercury 3600 and Force Outboard Controls

The SeaStar CCX63010 is a 10-foot XTREME control cable built for Mercury 3600 type applications, using a patented splined core design for a close fit with the cable's inner liner and smooth, minimal-lost-motion movement. This cable has a 10-32 threaded terminal at the control end and a Mercury style engine end connection, so it works with controls that accept 10-32 threaded ends as well as most aftermarket controls. It is a drop-in replacement and does not require the CA27319 connection kit.

Construction starts with a 0.34 inch super tough HDPE jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil. Inside, 0.033 inch oil tempered lay wires provide strength and consistent performance, while the long-wearing HDPE liner is lubricated for life for ultra-smooth operation. The core wires are stainless or nylon covered with moisture protective seals for added corrosion resistance. Because of the splined core, this XTREME cable has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it well suited to foot throttle setups and long or complex cable runs on performance and bass boats.

This cable fits Mercury products using controls which accept 10-32 threaded ends or most aftermarket controls with a Mercury style engine end connection, and it also fits Force outboards using the same type of control. It is made in the U.S.A., exceeds ABYC safety standards, and is type certified to ISO/IMCI and NMMA requirements.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63010
• Cable Length: 10 feet
• Cable Type: XTREME splined core control cable
• Control End Connection: 10-32 threaded terminal
• Engine End Connection: Mercury style engine end connection
• Jacket: 0.34 inch super tough HDPE jacket
• Core Wire: 0.033 inch oil tempered lay wires
• Liner: Long wearing HDPE liner, lubricated for life
• Core Wire Covering: Stainless or nylon covered with moisture protective seals
• Minimum Bend Radius: 4 inches
• Color: Brown
• Material: Metal
• Item Dimensions: 17 x 1.5 x 17 inches
• Package Dimensions: 17 x 17 x 1.2 inches
• Weight: 1.55 pounds
• Country of Origin: Made in U.S.A.
• Certifications: Exceeds ABYC safety standards; type certified to ISO/IMCI and NMMA requirements
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection

Replaces (OEM)

• No specific OEM cross-reference numbers are listed for this part; it is designed as a drop-in replacement for the Mercury and Force control cable applications noted above.

Frequently Asked Questions

What is the SeaStar CCX63010 control cable used for? The CCX63010 is a 10-foot SeaStar XTREME control cable designed to connect a boat's throttle or shift control to a Mercury 3600 type engine connection, commonly used for foot throttle setups on performance and bass boats.

Will the CCX63010 fit my Mercury outboard? Yes, the CCX63010 fits Mercury products (1965-date) that use controls accepting 10-32 threaded ends or most aftermarket controls, paired with a Mercury style engine end connection.

Does this cable work on Force outboards? Yes, the CCX63010 also fits Force outboards (1993-date) that use controls accepting 10-32 threaded ends or most aftermarket controls with a Mercury style engine end connection.

Is the CA27319 connection kit required to install the CCX63010? No, the CA27319 kit is not required with the CCX63010, since it already has a 10-32 threaded terminal at the control end and a Mercury type engine end connection built in.

How long is this control cable? The CCX63010 is a 10-foot cable, as indicated by its part number and size designation.

What makes the XTREME cable different from a standard control cable? The XTREME design used in the CCX63010 has a patented splined core with ridges that create a close fit with the cable's inner liner, giving a 4 inch minimum bend radius compared to an 8 inch minimum bend radius on standard cables, which allows tighter routing on long or complex cable runs.

What materials is the CCX63010 made from? This SeaStar cable has a 0.34 inch super tough HDPE jacket, 0.033 inch oil tempered lay wires, a long wearing HDPE liner that is lubricated for life, and stainless or nylon covered core wires with moisture protective seals for corrosion resistance.

How much does the CCX63010 weigh? The SeaStar CCX63010 control cable weighs 1.55 pounds.

Is the CCX63010 certified for marine use? Yes, the CCX63010 exceeds ABYC safety standards and is type certified to ISO/IMCI and NMMA requirements.

What warranty covers this control cable? SeaStar backs the CCX63010 with a two-year recreational user warranty against manufacturing defects.

Where is the CCX63010 manufactured? The SeaStar CCX63010 control cable is made in the U.S.A.

Is the CCX63010 a good fit for foot throttle applications? Yes, the CCX63010 is designed for foot throttle applications on performance and bass boats, and is also suited to long or complex cable runs thanks to its tight 4 inch minimum bend radius.
