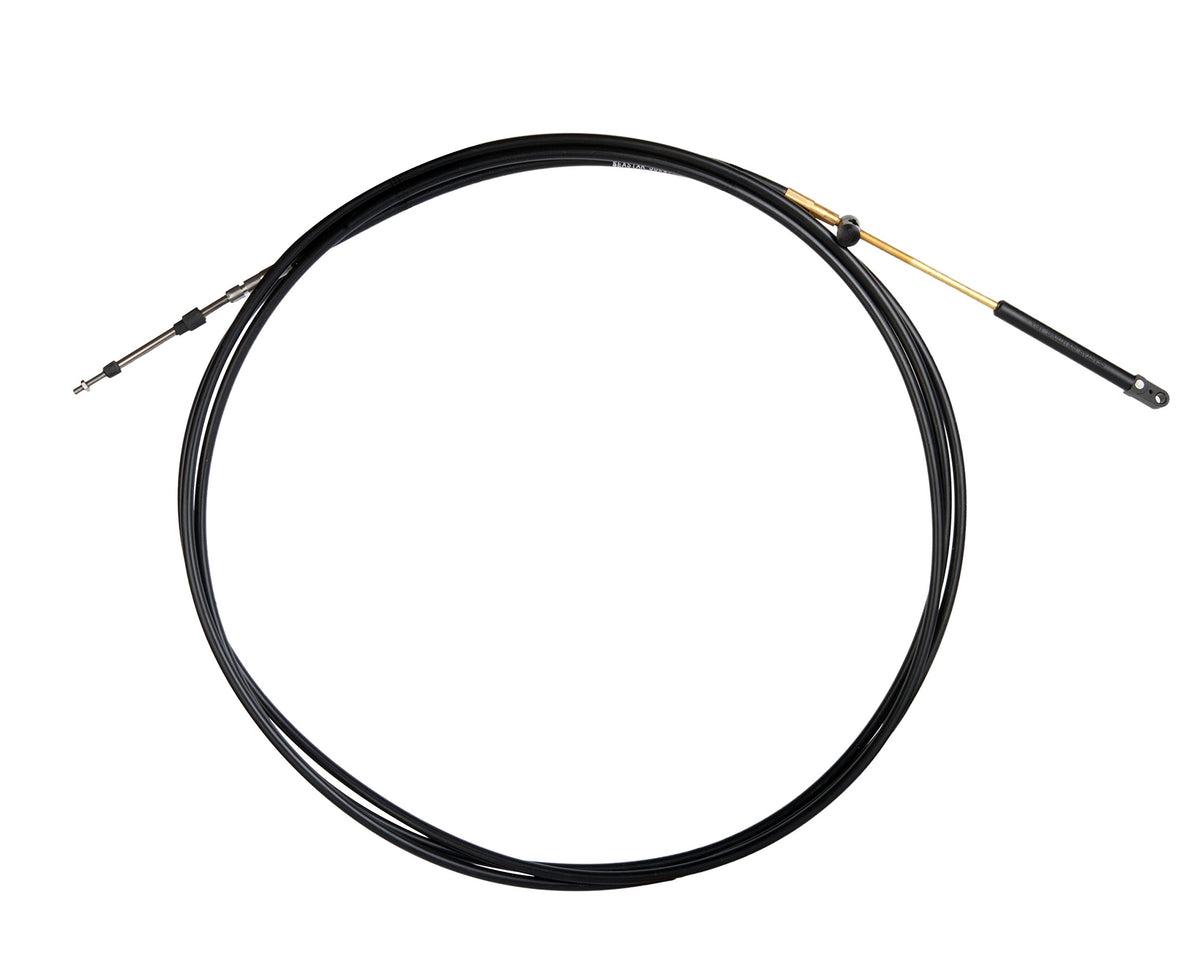

SeaStar CCX63014 Xtreme Control Cable, 14 Feet, Mercury 3600 Type, 10-32 Threaded End

The SeaStar CCX63014 is a 14-foot Xtreme control cable engineered for foot throttle to Mercury engine applications, particularly popular on performance and bass boats. It is built for controls that accept a 10-32 threaded terminal at the control end and terminates in a Mercury type engine end connection, so the CA27319 connection kit is not required for installation. The cable is a drop-in replacement designed to work with existing connection components.

SeaStar's Xtreme Technology is built around a patented splined core: ridges on the core create a close fit with the cable's inner liner, allowing smooth movement with minimal lost motion. The core is wrapped in a 0.34 inch Super Tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, while 0.033 inch oil tempered lay wires provide strength and consistent performance. The liner is a long-wearing HDPE liner that is lubed for life, and the core wires are stainless or nylon covered with moisture protective seals for added corrosion resistance. Compared to a standard control cable's 8 inch minimum bend radius, the Xtreme design achieves a 4 inch minimum bend radius, making it well suited to tight or complex cable runs. This cable is made in the U.S.A. And is intended for Mercury products and Force engines using controls that accept 10-32 threaded ends or most aftermarket controls with a Mercury style engine end connection.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63014
• Product Type: Xtreme Control Cable
• Length: 14 feet
• Control End Connection: 10-32 threaded terminal
• Engine End Connection: Mercury type engine end connector
• Connection Kit: CA27319 kit not required
• Minimum Bend Radius: 4 inches (versus 8 inches for standard cables)
• Jacket: 0.34 inch Super Tough HDPE jacket
• Core Wire Diameter: 0.033 inch oil tempered lay wires
• Core Technology: XTREME splined, coated core element
• Liner: Long wearing HDPE liner, lubed for life
• Core Wire Material: Stainless or nylon covered core wires with moisture protective seals
• Color: Black
• Weight: 1.95 pounds
• Country of Origin: Made in the U.S.A.
• Certification: Exceeds ABYC safety standards; type certified to ISO/IMCI and NMMA requirements
• Warranty: Two-year recreational user warranty against manufacturing defects
• UPC: 808282274580

Fitment

Mercury products using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection; also fits Force engines using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection.

Replaces (OEM)

No specific OEM part numbers are listed for this cable; it is designed as a drop-in replacement for Mercury and Force applications using 10-32 threaded control ends.

Frequently Asked Questions

What is the SeaStar CCX63014 control cable used for? The CCX63014 is a 14-foot Xtreme control cable designed for foot throttle to Mercury engine applications, commonly used on performance and bass boats with a control that accepts a 10-32 threaded end.

Does the CCX63014 require the CA27319 connection kit? No, the CA27319 connection kit is not required for the CCX63014 because it already has a Mercury type engine end connection built in.

What length is the CCX63014 cable? This SeaStar cable is 14 feet long, as indicated by the '14' in its part number CCX63014.

What engines and controls is the CCX63014 compatible with? The CCX63014 fits Mercury products and Force engines that use controls which accept 10-32 threaded ends or most aftermarket controls, and it terminates in a Mercury style engine end connection.

What makes the Xtreme cable different from a standard control cable? The Xtreme technology in the CCX63014 uses a patented splined, coated core element and a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on standard control cables, making it better suited for tight or complex cable runs.

What materials are used in the CCX63014 cable construction? Construction includes a 0.34 inch Super Tough HDPE jacket, 0.033 inch oil tempered lay wires, a long wearing HDPE liner that is lubed for life, and stainless or nylon covered core wires with moisture protective seals.

How much does the CCX63014 control cable weigh? The SeaStar CCX63014 weighs 1.95 pounds.

Is the CCX63014 cable resistant to corrosion and UV exposure? Yes, the HDPE jacket on the CCX63014 resists abrasion and withstands the effects of UV, salt water, chemicals, gasoline, and oil, and the core wires include moisture protective seals for added corrosion protection.

Where is the SeaStar CCX63014 manufactured? The CCX63014 control cable is made in the U.S.A.

Does the CCX63014 meet marine safety standards? Yes, the CCX63014 exceeds ABYC safety standards and is type certified to ISO/IMCI and NMMA requirements.

What warranty comes with the CCX63014 cable? SeaStar backs the CCX63014 with a two-year recreational user warranty against manufacturing defects.

What color is the CCX63014 control cable? The CCX63014 is black.
