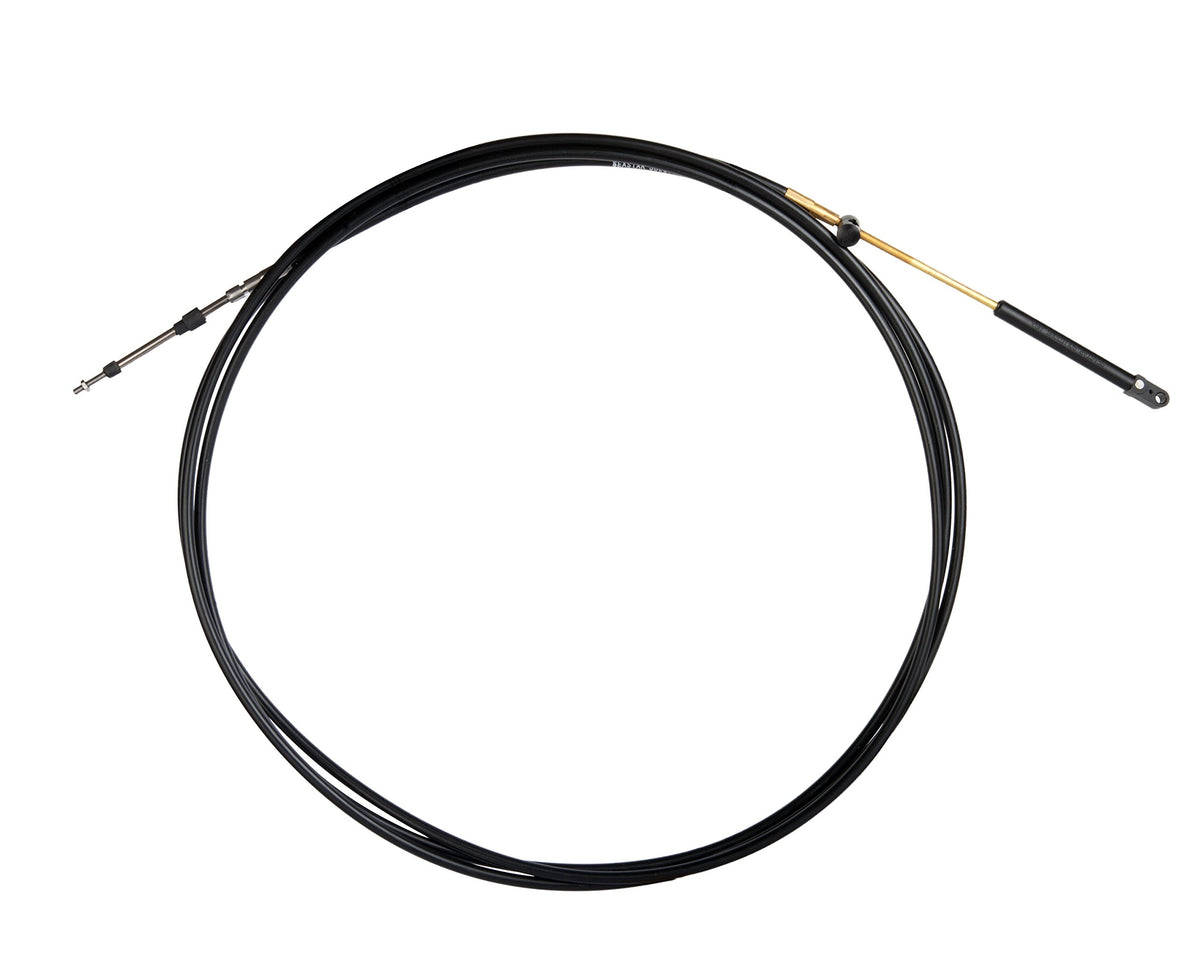

SeaStar CCX63015 Xtreme Control Cable, 15 Feet, Mercury 3600 Type, Fits Mercury and Force Outboards

The SeaStar CCX63015 is a 15-foot Xtreme Control Cable built as the Mercury 3600 type cable, designed for foot throttle to Mercury engine applications on performance and bass boats. It has a 10-32 threaded terminal at the control end and a Mercury type engine end connection, and the CA27319 connection kit is not required for installation.

This cable uses SeaStar's XTREME Technology, built around a patented splined core. Ridges on the core allow a close fit with the cable's inner liner for easy movement with minimal lost motion. The construction includes a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, along with 0.033 inch oil tempered lay wires for strength and performance. The liner is a long-wearing HDPE liner that is ultra smooth and lubed for life, and the core wires are stainless or nylon covered with moisture protective seals for added corrosion protection. XTREME cables have a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius for standard control cables, making this cable suited to complex or long cable runs.

The CCX63015 works with controls that accept 10-32 threaded ends or with most aftermarket controls, and is compatible with Mercury products (1965-date) and Force products (1993-date) that use this style of control and Mercury style engine end connection. It is made in the U.S.A. And is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63015
• Product Line: Xtreme Control Cable, Mercury 3600 type
• Length: 15 feet
• Control End Connection: 10-32 threaded terminal
• Engine End Connection: Mercury type engine end
• Connection Kit Required: Not required (CA27319 kit not required)
• Minimum Bend Radius: 4 inches (versus 8 inches for standard cables)
• Jacket: 0.34 inch super tough HDPE jacket
• Lay Wires: 0.033 inch oil tempered lay wires
• Core: XTREME splined, coated core element
• Liner: Long wearing HDPE liner, lubed for life
• Core Wire Material: Stainless or nylon covered core wires with moisture protective seals
• Weight: 2.1 pounds
• UPC: 808282274597
• Country of Origin: Made in U.S.A.
• Certification: Exceeds ABYC safety standards; type certified to ISO/IMCI and NMMA requirements
• Warranty: Two-year recreational user warranty against manufacturing defects
• Compatible Controls: Controls accepting 10-32 threaded ends or most aftermarket controls
• Recommended Use: Foot throttle to Mercury engine applications on performance and bass boats

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection

Frequently Asked Questions

What is the SeaStar CCX63015 control cable used for? The CCX63015 is a 15-foot Xtreme Control Cable used to connect a foot throttle to a Mercury engine, and is commonly installed on performance and bass boats.

Does the CCX63015 fit my Mercury or Force outboard? The CCX63015 fits Mercury products (1965-date) and Force products (1993-date) that use controls which accept 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection.

Is the CA27319 connection kit required to install this cable? No, the CA27319 kit is not required for the CCX63015 because it already has a 10-32 threaded terminal at the control end and a Mercury type engine end.

How long is the CCX63015 control cable? This SeaStar Xtreme Control Cable is 15 feet long, and buyers should verify this is the correct length for their application before ordering.

What connection does the CCX63015 have at the control end? The control end of the CCX63015 has a 10-32 threaded terminal, compatible with controls that accept 10-32 threaded ends or most aftermarket controls.

What is the bend radius of this Xtreme control cable? The CCX63015 has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius for standard control cables, making it suited to tighter or more complex cable runs.

What materials make up the CCX63015 cable? The CCX63015 uses a 0.34 inch HDPE jacket, 0.033 inch oil tempered lay wires, a splined XTREME core element, a lubed HDPE liner, and stainless or nylon covered core wires with moisture protective seals.

How much does the CCX63015 control cable weigh? The CCX63015 weighs 2.1 pounds.

What is the difference between an Xtreme cable and a standard control cable? The CCX63015 Xtreme cable has a 4 inch minimum bend radius versus an 8 inch minimum bend radius on standard cables, along with a splined core design for smoother movement and less lost motion.

Is the CCX63015 covered by a warranty? Yes, the CCX63015 is backed by a two-year recreational user warranty against manufacturing defects.

Where is the CCX63015 control cable manufactured? The CCX63015 is made in the U.S.A.

Does the CCX63015 meet marine safety standards? Yes, the CCX63015 exceeds ABYC safety standards and is type certified to ISO/IMCI and NMMA requirements.
