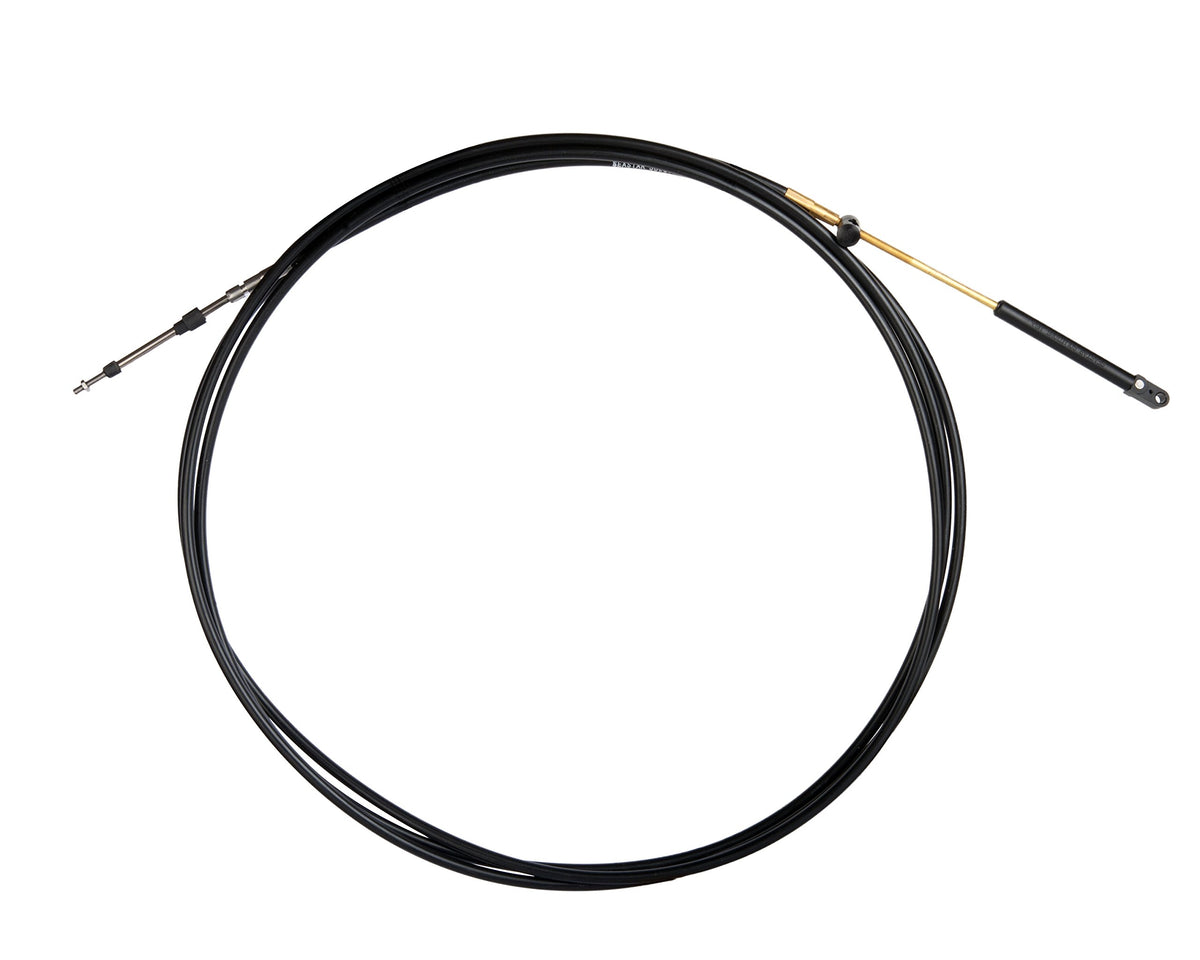

SeaStar CCX63017 XTREME Control Cable, 17 Feet, Mercury 3600 Type, 10-32 Threaded End

The SeaStar CCX63017 is a 17-foot XTREME control cable built for Mercury 3600 type applications, using SeaStar's patented splined core design for smooth, low-friction throttle and shift feel. It is designed for controls which accept a cable with 10-32 threaded ends or for use with most aftermarket controls, and it terminates at the engine end with a Mercury type engine end connection, so the CA27319 connection kit is not required for installation.

The cable's construction starts with a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil. Inside, 0.033 inch oil-tempered lay wires deliver strength and consistent performance, while the unique XTREME splined, coated core element keeps movement smooth with minimal lost motion. The long-wearing HDPE liner is lubed for life, and stainless or nylon covered core wires with moisture protective seals add further corrosion protection. A 4 inch minimum bend radius (versus 8 inches on standard control cables) makes this cable well suited to complex or long cable runs, including foot throttle applications on performance and bass boats.

This cable is intended for Mercury products (1965-date) and Force products (1993-date) that use controls accepting 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection. It is made in the U.S.A. And exceeds ABYC safety standards, and is type certified to ISO/IMCI and NMMA requirements.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63017
• Length: 17 feet
• Cable Type: XTREME splined core control cable
• Control End Termination: 10-32 threaded terminal
• Engine End Connection: Mercury type
• Connection Kit Requirement: CA27319 kit not required
• Compatible Controls: Controls which accept 10-32 threaded ends or most aftermarket controls
• Jacket Material: HDPE (high-density polyethylene)
• Jacket Thickness: 0.34 inch
• Lay Wire Diameter: 0.033 inch, oil tempered
• Minimum Bend Radius: 4 inches
• Color: Black
• Water Resistance: Water resistant
• Weight: 2.35 pounds
• Country of Origin: Made in the U.S.A.
• UPC: 808282274610

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection

Replaces (OEM)

• No specific OEM part numbers listed; this cable is a drop-in replacement for the Mercury and Force applications described above

Frequently Asked Questions

What length is the SeaStar CCX63017 control cable? The CCX63017 is a 17 foot control cable, so confirm this matches the run length needed for the application before ordering.

Does the CCX63017 require a separate connection kit at the engine? No. The CCX63017 has a Mercury type engine end connection, so the CA27319 connection kit is not required for installation.

What kind of terminal does this cable have at the control end? It has a 10-32 threaded terminal at the control end, designed for controls which accept 10-32 threaded ends or most aftermarket controls.

Will the CCX63017 work with aftermarket boat controls? Yes, this cable is designed to work with controls which accept 10-32 threaded ends or with most aftermarket controls, in addition to compatible Mercury and Force controls.

What is the minimum bend radius of this cable? 4 inches, compared to an 8 inch minimum bend radius on standard control cables, which makes the CCX63017 better suited to tight, complex, or long cable runs.

What is the outer jacket made of? A 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV exposure, salt water, chemicals, gasoline, and oil.

Which engines is the CCX63017 designed for? It is designed for Mercury products (1965-date) and Force products (1993-date) that use controls accepting 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection.

Is the CCX63017 made in the USA? Yes, the CCX63017 XTREME control cable is made in the U.S.A.

What certifications does this control cable meet? The CCX63017 exceeds ABYC safety standards and is type certified to ISO/IMCI and NMMA requirements.

What warranty comes with this cable? The CCX63017 is backed by a two-year recreational user warranty against manufacturing defects.

What color is the CCX63017 cable? Black, with a water resistant jacket construction.

How much does the CCX63017 control cable weigh? The CCX63017 weighs 2.35 pounds.
