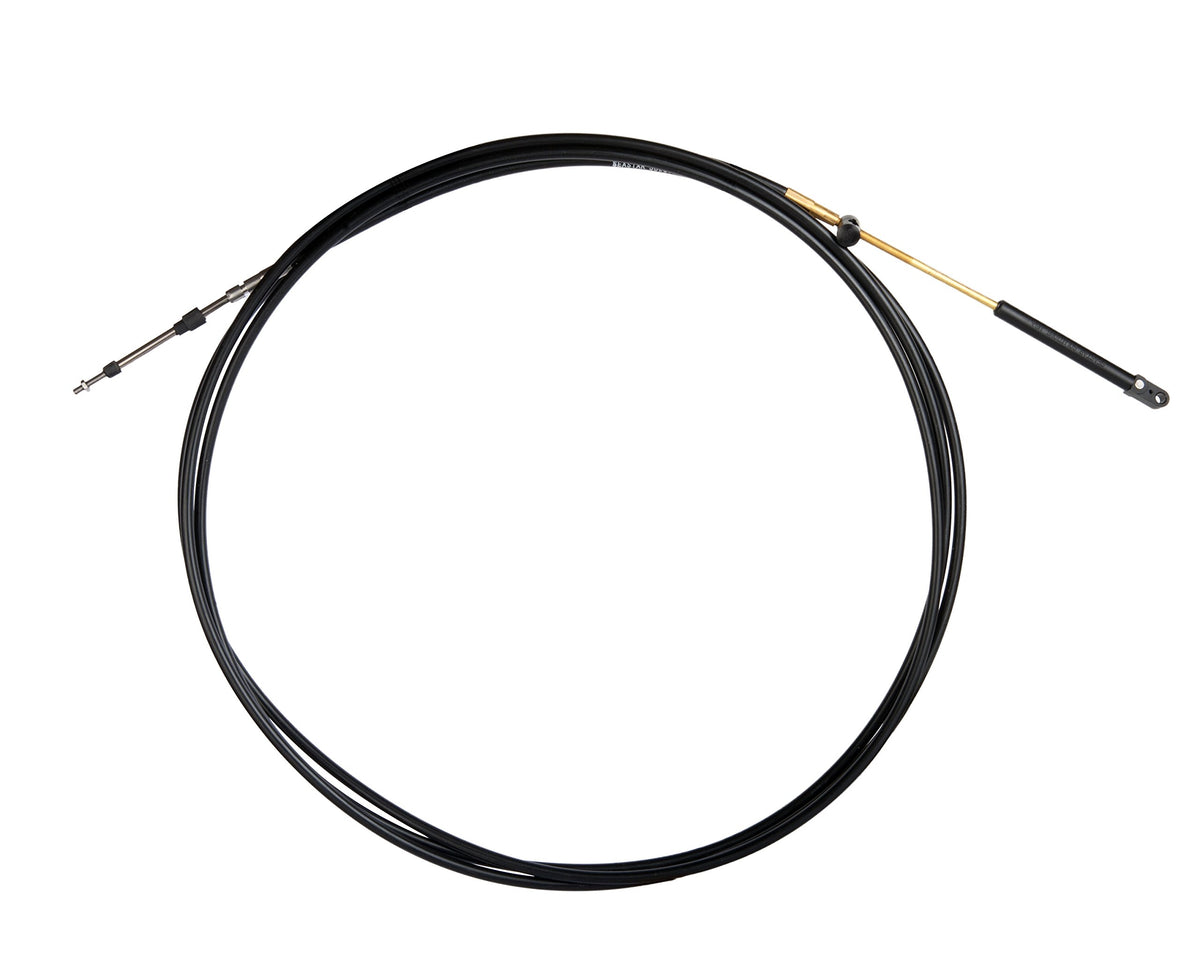

SeaStar CCX63018 Xtreme Control Cable, 18 Feet, 3600 Mercury Type, 10-32 Threaded End

The SeaStar CCX63018 is an Xtreme Control Cable built for foot throttle applications on performance and bass boats, and for complex or long cable runs where a superior feel is required. It is designed for controls which accept a cable with 10-32 threaded ends or for use with most aftermarket controls, and terminates in a Mercury type engine end connection. Because the control end already has a 10-32 threaded terminal, the CA27319 connection kit is not required for installation.

SeaStar's XTREME Technology uses a patented splined core: ridges on the core give a close fit with the cable's inner liner for easy movement with minimal lost motion. The cable is built with a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, along with 0.033 inch oil tempered lay wires for strength and performance. The liner is a long wearing HDPE liner that is ultra smooth and lubricated for life, and the core wires are stainless or nylon covered with moisture protective seals for added corrosion protection. The XTREME cable's minimum bend radius is 4 inches, versus 8 inches for a standard cable, making it well suited to tight or complex routing.

This cable is made in the U.S.A., exceeds ABYC safety standards, and is type certified to ISO/IMCI and NMMA requirements. It is backed by a two-year recreational user warranty against manufacturing defects.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63018
• Length: 18 feet
• Control End Connection: 10-32 threaded terminal
• Engine End Connection: Mercury type engine end
• Connection Kit Requirement: CA27319 kit not required
• Minimum Bend Radius: 4 inches (8 inches for a standard cable)
• Outer Jacket: 0.34 inch super tough HDPE jacket
• Lay Wires: 0.033 inch oil tempered lay wires
• Core: XTREME splined, coated core element
• Liner: Long wearing HDPE liner, lubricated for life
• Core Wire Covering: Stainless or nylon covered with moisture protective seals
• Color: Black
• Weight: 2.53 pounds
• Country of Origin: Made in the U.S.A.
• Certifications: Exceeds ABYC safety standards; type certified to ISO/IMCI and NMMA requirements
• Warranty: Two-year recreational user warranty against manufacturing defects
• UPC: 808282274627

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or using most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or using most aftermarket controls, with Mercury style engine end connection

Replaces (OEM)

• No specific OEM part numbers listed; fits applications described above

Frequently Asked Questions

What is the SeaStar CCX63018 used for? The CCX63018 is an 18 foot Xtreme control cable intended for foot throttle applications on performance and bass boats and for complex or long cable runs, connecting to a Mercury type engine end.

Does the CCX63018 require the CA27319 connection kit? No, the CA27319 kit is not required for the CCX63018 because it already has a 10-32 threaded terminal at the control end.

What length is this control cable? This is the 18 foot version of the CCX630XX Xtreme control cable line, part number CCX63018.

What boats and controls is the CCX63018 compatible with? It fits controls that accept a cable with 10-32 threaded ends, or most aftermarket controls, and terminates in a Mercury type engine end connection.

Which engines does the CCX63018 fit? The CCX63018 fits Mercury products (1965-date) and Force products (1993-date) that use controls accepting 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection.

What makes an Xtreme cable different from a standard control cable? The XTREME Control Cable used in the CCX63018 has a 4 inch minimum bend radius compared to an 8 inch minimum bend radius for a standard cable, allowing tighter and more complex routing.

What is the cable jacket made of? The CCX63018 has a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

How much does the CCX63018 weigh? The CCX63018 control cable weighs 2.53 pounds.

Is the CCX63018 made in the USA? Yes, the CCX63018 Xtreme control cable is made in the U.S.A.

What warranty comes with the CCX63018? The CCX63018 is backed by a two-year recreational user warranty against manufacturing defects.

Does the CCX63018 meet marine safety standards? Yes, the CCX63018 exceeds ABYC safety standards and is type certified to ISO/IMCI and NMMA requirements.

What color is the CCX63018 cable? The CCX63018 control cable is black.
