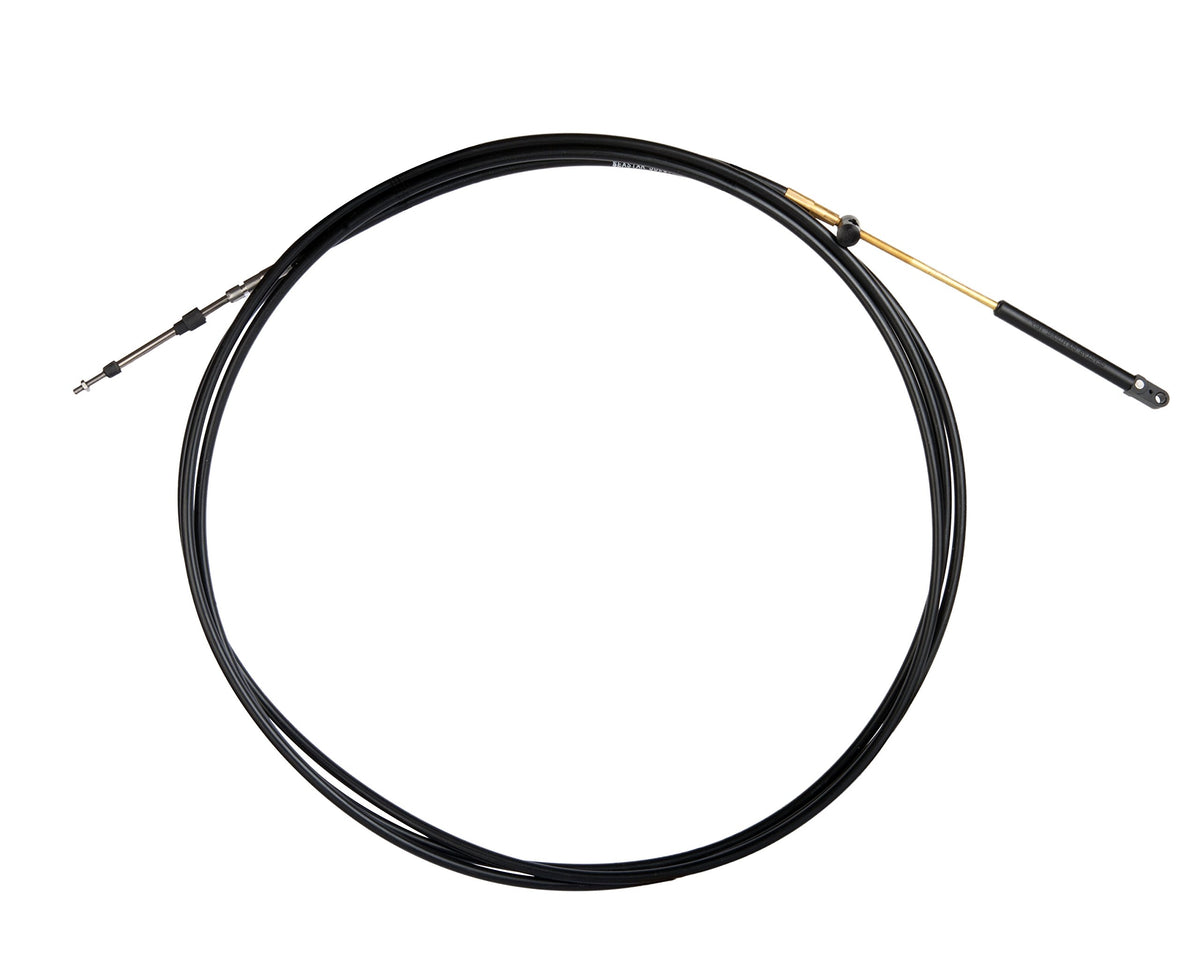

SeaStar Xtreme CCX63019 Control Cable, 19 Feet, Mercury 3600 Type Engine End

The SeaStar Xtreme CCX63019 is a 19-foot control cable built for throttle and shift applications on boats running controls that accept 10-32 threaded ends, including most aftermarket controls. It uses a Mercury style engine end connection and does not require the CA27319 connection kit, so it is a drop-in replacement using existing connection components on Mercury 3600 type cable setups. Xtreme Technology is the core difference versus a standard cable: a patented splined core with ridges that keep a close fit to the cable's inner liner for smooth, low-lost-motion movement, paired with a 4 inch minimum bend radius versus an 8 inch minimum bend radius on standard cables. This makes it well suited to foot throttle applications on performance and bass boats, and to complex or long cable runs where a standard cable would bind or lose feel.

Construction includes a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil, 0.033 inch oil tempered lay wires for strength and performance, and a long wearing HDPE liner that is ultra smooth and lubed for life. Core wires are stainless or nylon covered with moisture protective seals for added corrosion protection and longer life. The cable is black and is made in the U.S.A. Before ordering, verify 19 feet is the correct length for your application.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63019
• Cable Length: 19 feet
• Control End Connection: 10-32 threaded terminal
• Engine End Connection: Mercury style engine end connection
• Connection Kit Required: Not required (CA27319 kit not required)
• Minimum Bend Radius: 4 inches (Xtreme)
• Jacket: 0.34 inch super tough HDPE jacket
• Lay Wires: 0.033 inch oil tempered lay wires
• Core Element: Xtreme splined, coated core
• Liner: Long wearing HDPE liner, lubed for life
• Core Wire Covering: Stainless or nylon covered core wires with moisture protective seals
• Color: Black
• Item Dimensions: 1.5 x 17 x 17 inches
• Weight: 2.5 pounds
• Country of Origin: Made in U.S.A.

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or most aftermarket controls, with Mercury style engine end connection

Frequently Asked Questions

What length is the CCX63019 control cable? The SeaStar Xtreme CCX63019 is a 19-foot control cable. Always verify 19 feet is the correct length for your specific control-to-engine run before ordering.

Does the CCX63019 require a connection kit at the engine end? No, the CA27319 kit is not required for the CCX63019. It has a 10-32 threaded terminal at the control end and a Mercury style engine end connection, so it installs using existing connection components.

What controls is this cable compatible with? The CCX63019 works with controls that accept a 10-32 threaded end, which includes most aftermarket controls as well as Mercury products (1965-date) and Force products (1993-date) using that connection type.

What makes the Xtreme cable different from a standard control cable? Xtreme Technology gives the CCX63019 a patented splined core with ridges that keep a close fit to the inner liner for smooth movement with minimal lost motion, plus a 4 inch minimum bend radius versus an 8 inch minimum bend radius on standard cables.

Is this cable good for foot throttle setups on a bass boat? Yes. The CCX63019's tight 4 inch bend radius and low-lost-motion splined core make it well suited to foot throttle applications on performance and bass boats, and to complex or long cable runs.

What is the outer jacket made of? The CCX63019 uses a 0.34 inch super tough HDPE jacket that resists abrasion and withstands UV, salt water, chemicals, gasoline, and oil.

What color is the CCX63019 cable? This control cable is black.

How much does the CCX63019 weigh and what are its dimensions? The CCX63019 weighs 2.5 pounds and has item dimensions of 1.5 x 17 x 17 inches.

Are the core wires corrosion resistant? Yes, the CCX63019 uses stainless or nylon covered core wires with moisture protective seals for added corrosion protection and longer life.

Where is the CCX63019 control cable made? The CCX63019 is made in the U.S.A.

Will this cable fit engines from 1965? The CCX63019 fits Mercury products from 1965-date that use controls accepting 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection.

Does this cable fit Force outboards? Yes, the CCX63019 fits Force products (1993-date) using controls that accept 10-32 threaded ends or most aftermarket controls, with a Mercury style engine end connection.
