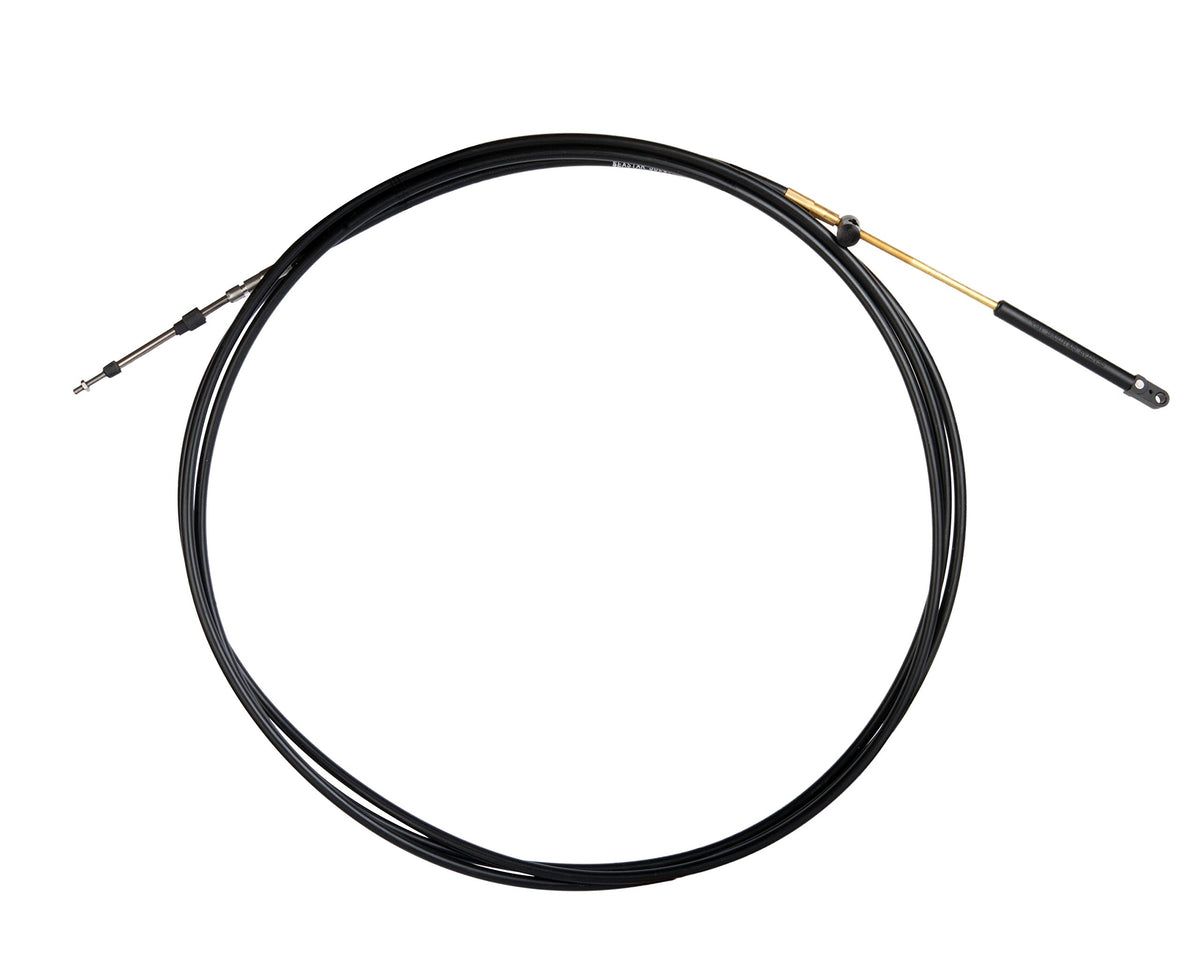

SeaStar Xtreme Control Cable CCX63021, 21-Foot, Mercury 3600 Type, 10-32 Threaded End

The SeaStar Xtreme Control Cable CCX63021 is a 21-foot throttle/shift control cable built for Mercury 3600 type applications. It has a 10-32 threaded terminal at the control end and a Mercury type engine end connection, so it drops in without requiring the CA27319 connection kit. This cable is a common choice for foot throttle setups on performance and bass boats, and it is also suited to complex or long cable runs where a smoother, more precise feel is wanted.

The cable uses SeaStar's Xtreme construction: a patented splined core with ridges that keep a close fit against the inner liner for easy movement and minimal lost motion. The core is built from 0.033 inch oil tempered lay wires for strength and consistent performance, wrapped in a 0.34 inch HDPE jacket that resists abrasion and stands up to UV, salt water, chemicals, gasoline, and oil. The liner is a long-wearing HDPE liner that is lubricated for life, and the core wires are stainless or nylon covered with moisture protective seals for added corrosion resistance. Compared to a standard control cable's 8 inch minimum bend radius, this Xtreme cable bends down to a 4 inch minimum radius, giving more routing flexibility in tight engine compartments.

It is made in the U.S.A., exceeds ABYC safety standards, and is type certified to ISO/IMCI and NMMA requirements. It is fitted for controls that accept a cable with 10-32 threaded ends, including most aftermarket controls, paired with a Mercury style engine end connection.

Specifications

• Brand: SeaStar
• Manufacturer Part Number: CCX63021
• Cable Length: 21 feet
• Control End Terminal: 10-32 threaded
• Engine End Connection: Mercury type
• Connection Kit Required: CA27319 kit not required
• Core Technology: Xtreme splined, coated core element
• Jacket Material: 0.34 inch HDPE jacket
• Lay Wires: 0.033 inch oil tempered lay wires
• Liner: HDPE liner, lubricated for life
• Core Wire Covering: Stainless or nylon covered core wires with moisture protective seals
• Minimum Bend Radius: 4 inches
• Item Dimensions: 17 x 1.5 x 17 inches
• Weight: 2.75 pounds
• Country of Origin: United States
• Certifications: Exceeds ABYC safety standards; type certified to ISO/IMCI and NMMA requirements
• Warranty: Two-year recreational user warranty against manufacturing defects

Fitment

• Mercury products (1965-date) using controls which accept 10-32 threaded ends or using most aftermarket controls, with Mercury style engine end connection
• Force products (1993-date) using controls which accept 10-32 threaded ends or using most aftermarket controls, with Mercury style engine end connection

Frequently Asked Questions

What is the length of the SeaStar CCX63021 control cable? The CCX63021 is a 21-foot control cable, part of SeaStar's Xtreme control cable line.

What engine end connection does this cable use? The CCX63021 has a Mercury type engine end connection paired with a 10-32 threaded terminal at the control end.

Do I need a connection kit to install the CCX63021? No, the CA27319 connection kit is not required for the CCX63021 because it already has a Mercury type engine end connection built in.

What controls is this cable compatible with? This cable fits controls which accept a cable with 10-32 threaded ends, including most aftermarket controls, matched with a Mercury style engine end connection.

Which engines and years does the CCX63021 fit? The SeaStar Xtreme CCX63021 is designed for Mercury products from 1965 to date and Force products from 1993 to date that use controls accepting 10-32 threaded ends or most aftermarket controls with a Mercury style engine end connection.

What is the minimum bend radius of this cable? The CCX63021 Xtreme cable has a 4 inch minimum bend radius, compared to an 8 inch minimum bend radius on a standard control cable, which allows tighter routing in the engine compartment.

What materials make up the CCX63021 cable? It is built with a 0.34 inch HDPE outer jacket, 0.033 inch oil tempered lay wires, a lubricated HDPE liner, and stainless or nylon covered core wires with moisture protective seals.

Is the CCX63021 suitable for foot throttle applications? Yes, this Xtreme control cable is designed for foot throttle applications on performance and bass boats and for complex or long cable runs.

Where is the SeaStar CCX63021 control cable made? The CCX63021 is made in the U.S.A.

What is the warranty on this control cable? The CCX63021 is backed by a two-year recreational user warranty against manufacturing defects.

How much does the CCX63021 weigh? The SeaStar CCX63021 control cable weighs 2.75 pounds.

What safety standards does this cable meet? The CCX63021 exceeds ABYC safety standards and is type certified to ISO/IMCI and NMMA requirements.
